Venturi tube welder To weld Venturi Tube to filter cage's top KD-D08B controller Venturi tube welder Input voltage: 380V(2-phase) or specified by customer Power freq.: 50Hz Power capacity: 80KVA Working load: 35KVA Cooling: Water cooling Water flow: 3L/min Air flow: 80L/min Air pressure: 0.6-0.8MPa Insulation grade: F Features KD-D08B controller Horizontal welding, applicable for welding bag cages of random lengths, supporting stand included

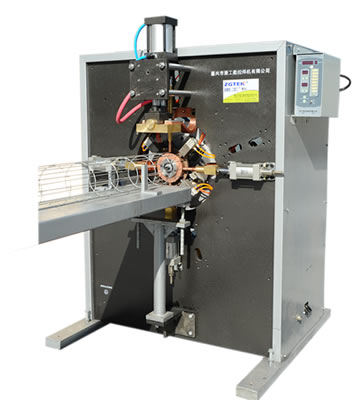

Top Collar 4-point Positioning Welder 1.Weld the Top Collar to filter cage's top 2.Ensure perpendicularity Top Collar 4-point Positioning Welder Input voltage: 380V(2-phase) or specified by customer Power freq.: 50/60Hz Power capacity: 80KVA Instant power during welding: 35KVA Cooling: Natural cooling Air flow: 100L/min Air pressure: 0.6-0.8MPa Insulation grade: F Weight: 600KG Features Ensure perpendicularity between top cap and the axis of the cage, based on top cap assembly base plane, top cap will be locked and four points will be welded, then turn cage and weld the rest joints D4S-80-1: First use D4S-80-1 to weld 4 locating joints, then use DS series to weld the rest joints one by one D4S-80-2: Top cap welder is integrated, high-end, can fully replace DS-80/50

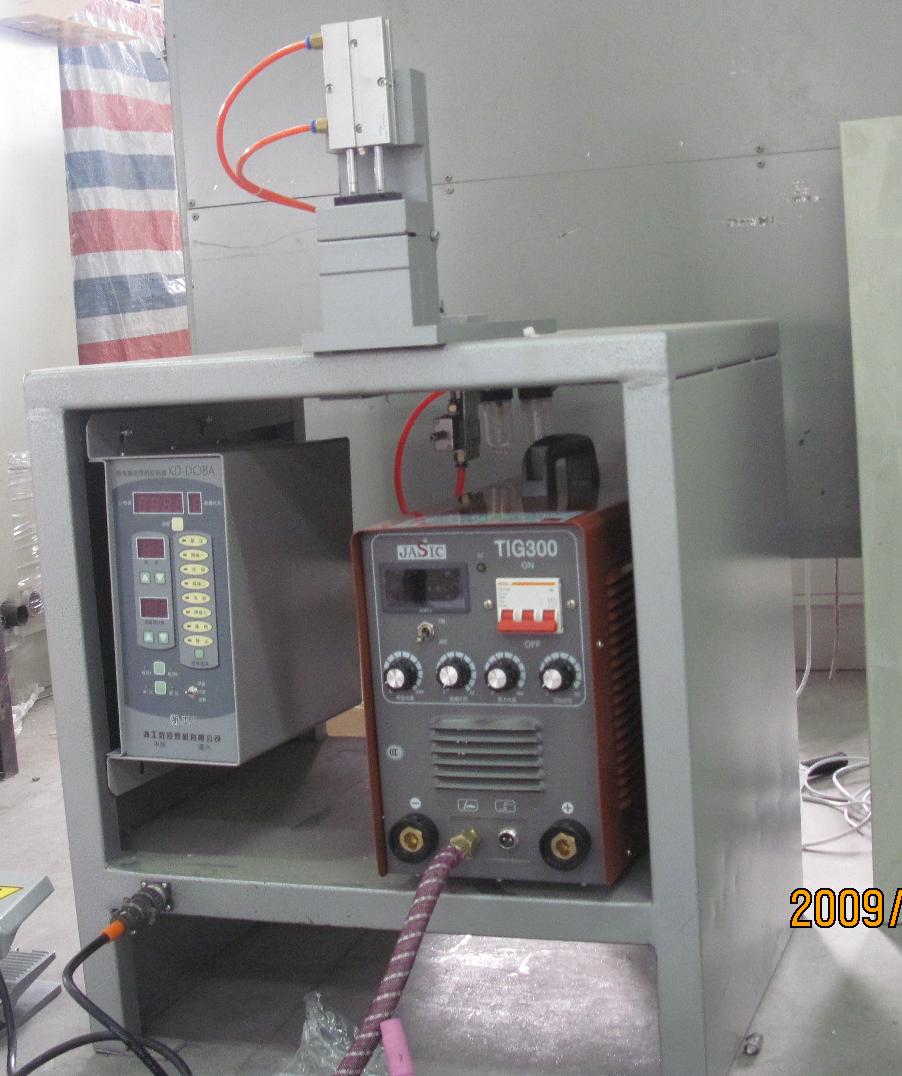

Argon arc welder/TIG welder for stainless steel rings Steel ring TIG welder Filter cages' ring welder Argon arc welder/TIG welder for stainless steel rings Input voltage: 380V(3-phase) or specified by customer Control unit: KD-D08A Welding power: 12KVA Max welding current: 300A Wire thickness: 2.5-6mm Cooling method: natural cooling Argon flow: 5L/min Air pressure: 0.5-0.8 MPa Air flow: 150L/min Features This machine is an argon arc welding machine(TIG welder), good for welding stainless steel wires Firm welding joints, good surface finish

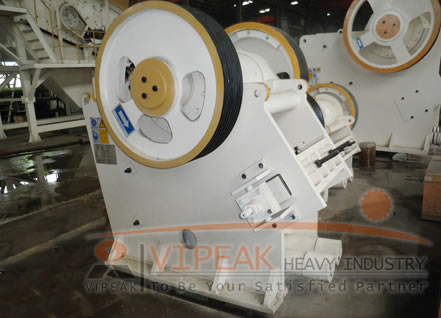

Strong Jaw Crusher is the most suitable for the broken compressive strength which is not higher than 280 Mpa :ore and rock, slag, etc, and the most large degree materials must not be more than technical parameter table set rules. It is Mainly used in metallurgy, mine mountain, chemical engineering, cement, construction, refractory materials and ceramic industries as well as broken and finely various kinds of hard rocks and ores, etc. Vipeak heavy industry is the world's leading on rocks and minerals processing equipment production enterprise, JC jaw crusher with its superior performance and stable and reliable quality, pursue high quality equipment has the trust of customers! JC jaw crusher is the first selection of high efficiency and crushing equipment! Product introduction: Strong jaw crusher is the most suitable for the broken compressive strength which is not higher than 280 Mpa :ore and rock, slag, etc, and the most large degree materials must not be more than technical parameter table set rules. It is Mainly used in metallurgy, mine mountain, chemical engineering, cement, construction, refractory materials and ceramic industries as well as broken and finely various kinds of hard rocks and ores, etc. Vipeak heavy industry is the world's leading on rocks and minerals processing equipment production enterprise, JC jaw crusher with its superior performance and stable and reliable quality, pursue high quality equipment has the trust of customers! JC jaw crusher is the first selection of high efficiency and crushing equipment! Performance characteristics: 1, unique structure of jaw head, seal guarantee, extend working life of the bearing. 2, integral casting of the bearing base, adopt the new assembly process to perfectly match with the frame , increase the radial intensity. 3, adopting deep cavity "V" type structure, to greaten the feeding size (compared with ordinary jaw crusher) and increase the capacity. 4, adjust the structure of the discharging opening,which is convenient, quick, safe 5, tension bar protection device, more safer 6, increase the bearing capacity of the jaw head, make the machine more efficient, safe, extend the working life of the bearing and main shaft. 7, new oil road design, matched with the oil pump, more simple and efficient on the operation and maintainance. 8, unique flywheel design, effectively reduce the vibration, running more smoothly. Mechanism composition: Strong jaw crusher is main part of the main frame, partiality axis rotation part, crushing cavity working part, insurance device, discharging mouth adjusting devices components, etc. 1, Frame part: the board, former box, back box welding components, etc. 2, Eccentric shaft rotational part: mainly by dynamic jaw, eccentric shaft, bearing, housing, pulley etc. Which is the main part of the power transmission. 3, Crushing cavity working part: mainly by set jaw plate, dynamic jaw plate, side lining board, guard board and other components, which is broken material working parts. 4, Insurance device: by cubits board, cubits, spring, spring board a lever and other components, which is abnormal cases on the auto-balance insurance effect parts. 5, Discharging mouth adjusting device: this device used to adjust the size of discharging mouth size, control the grain-size. Mainly by the adjustment of fixed inclined, adjust the sliding block, top inclined silk bolt, the slider lock bars etc. As a professional supplier of mining and constructon equipment,Vipeak supplies you not only crusher, but also stone crusher,grinding mill,ball mill. company: ZhengZhou Vipeak Heavy Industry Machinery Tel:86-371-67770550 Fax:86-371-67431834 Email:[email protected] Our main website: http://www.vipeakgroup.com/

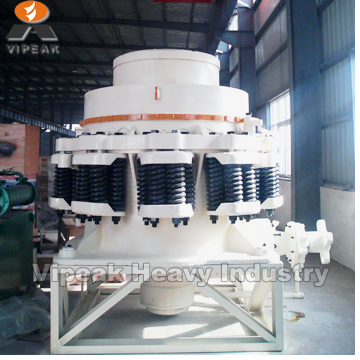

As a professional supplier of mining and constructon equipment,Vipeak supplies you not only Crusher, but also grinding mill,ball mill.Welcome you to visit us! Spring Cone Crusher is suitable to crush various kinds of ores and rocks of medium or above medium hardness. Compared with Jaw Crusher, Spring Cone Crusher is of stable structure, high efficiency, easy adjustment, and economical using etc. The spring safety system of crusher acts as an overloading protection system that allows metals to pass through the crushing chamber so as not to damage the Cone Crusher. The safety system uses dry oil and water as two kinds of sealed formation to make plaster powder and engine oil separated to make sure reliable performance. This type of crushing chamber depends upon the size of feeding and fineness of the crushed product. The standard type (PYB) is applied to medium crushing, the medium type is applied to medium or fine crushing and the short head type is applied to fine crushing. Working Principle of Spring Cone Crusher: Spring Cone Crusher crushes materials by the working surface between the movable cone and fixed cone. So it is more advanced and efficiency than Jaw Crusher. The movable cone is supported by spherical bearing and fixed on an hanging erect shaft which is set in the eccentric sleeve, and the sleeve is set on the stopping and pushing bearing. The movable cone and erect shaft are driven by the eccentric shaft sleeve together. The eccentric shaft sleeve is driven by horizontal shaft and fimbriated gear, and the wheel of the conveyor belt is driven by motor through v-belts. The lower part of vertical shaft is installed in the eccentric sleeve. When the eccentric sleeve rotates, there is a conical surface lined out by the shaft. When the movable cone comes near the fixed cone, rocks are grinded into pieces, when the cone leaves, grinded materials is discharged from the discharge hole. The fixed cone can be ascended or descended by adjusting setting to adjust the width of discharge hole, consequently the output size is determined. Our main website: http://www.grinderpro.com/ Send us email:[email protected]
