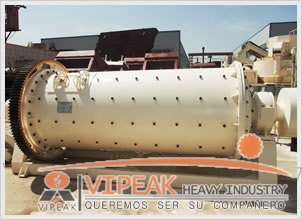

Ball mill are used primary for single stage fine grinding, regrinding, and as the second stage in two stage grinding circuits. These mills are sized from 2 t/h to 30 TPH for wet grinding and from 0.5 t/h to 30 TPH for dry grinding. Ball mills have been designed in standard sizes of the final products between 0.074 mm and 0.4 mm in diameter. So, ball mills are suitable for both general mining applications such as cement, concrete making and quarry applications. Ball mill is widely applied in mineral classification, cement, fireproof materials, glass, pottery, chemical industry and so on. It can grind all kinds of rocks and grinding materials. The Advantage of Ball Mill: provide reasonable product selection and design, scientific workshop manufacturing arrangements, strict production process,on time delivery .Quite simply, the longer the Ball Mill runs, the finer the powder will be. Ultimate particle size depends entirely on how hard the material you're grinding is, and the time how long the Ball Mill runs. Our Ball Mills have been used to grind glass, powder food products, create custom varnishes, make ceramic glaze, powder various chemicals, and make Black Powder. The detailed information : http://www.crushingmill.com/ As a professional supplier of mining and construction equipment, Vipeak supplies you not only ball mills,but also stone crusher, jaw crusher,impact crusher and so on. TEL : 86-371-67770550 Fax:86-371-67431834 Email:[email protected] Company Name: HeNan ZhengZhou Vipeak Heavy Industry Machinery Co., Ltd

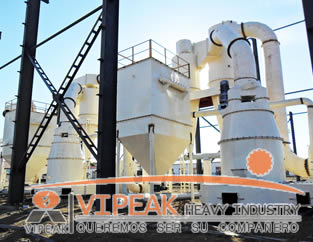

Introduction: MQX ultrafine mill production line is suitable for high hardness physics, final fineness is within about 1250 mesh, this super fine powder production line which is to satisfy the customers' fineness and big capacity. MQX ultrafine mill production line we researched and developed is not only pay attention to the function but also likes to be more efficient, reliable and steady pursuit, long lasting, helping our clients achieve long-term, stable income. Production processing: Jaw crusher is for primary crushing, hammer crusher is for secondary crushing. The crushed material will be transported to the large hopper through the bucket elevator, after that , the frequency conversion spiral feeder sends the materials into MQX ultrafine grinding ball mills to grind, fine powder will be transported by elevator to classifier for classifying, but the failed powder return to the ball mills for grinding again. Qualified fine powder enters into the Cyclone collector by the increased flow air ,the air powder will be separation, powder was collected, the fine powder with air enter into the impulse Duster Collector, gas was purified by the impulse Duster Collector, but dust is collected. Contact us: TEL : 86-371-67770550 Fax:86-371-67431834 Address: No.43,Tongbai Road, Zhengzhou, Henan, China Source from: http://www.vipeakballmill.com/

Portable type series mobile crusher plant is developed according to novel series stone crushing equipment's design idea, which expands the concept field of coarse crusher and fine crushing. Its design idea is based on the client’s requirements, which removes the barriers result from the crushing place, surroundings and the complex basic configurations. This series mobile crusher plant really supply simpler, higher efficient and lower cost machines for clients. The excellent performance of portable type series mobile crusher plant: ●High performance jaw crusher, impact crusher and cone crusher. ●Feeder, belt conveyor and vibrating screen are all in one. ●Turn axle of traction is convenient for road transit and expanding the working place. ●Vehicle installation supporting is easier for equipment to station in the working place. ●Vehicle electric generating set, motors and control box are all included. Applications and advantages of Portable Series Mobile Crushing and Screening Plant ●Integrative equipment group ●Flexibility ●Lower freight cost ●Direct and efficient operation ●Easy to adapt and flexible to collocate ●Reliable performance and convenient maintenance Contact us: TEL : 86-371-67770550 Fax:86-371-67431834 Emai:[email protected] Address: No.43,Tongbai Road, Zhengzhou, Henan, China Our mobile crusher plant main pape: http://www.crushermobile.com/

As a newly-designed grinding machine , High Pressure Medium Speed Grinder is primarily used for the powder processing of mineral products in industries such as metallurgy, building materials, chemical, mining and so on. It can produce powder from various non-flammable and non-explosive mineral materials with Mohs hardness below 9.3 and humidity below 6%, such as quartz, feldspar, calcite, talcum, barite, fluoride, Xircom, cinder, white lime, cement clinker, activated carbon, dolomite, granite, soft coal, coking coal, lignite, magnesia,etc. The Woking Principle of High Pressure Medium Speed Grinder: The grinding Process of the Main Mill is that the transmission device brings along the Central Shaft to drive. The upper part of the shaft connects with the Quincunx Rack, on the frame is loaded with the roller assembly, and forms a swinging pivot. The central shaft does revolve around the central rotation, at the same time it revolves around the grinding rings, and it self also rotates on account of the grinding effect. The shovel system, in the lower part of rollers, is loaded on the lower part of the Quincunx Rack. In the process of rotating of the shovel and the roller, the material will be fed gasket layer between the rollers and ring. The outside centrifugal force (compression force) yielding in this process will process the material into small powder, thus the desired powder is obtained. Contact us: TEL : 86-371-67770550 Fax:86-371-67431834 Email:[email protected] Address: No.43,Tongbai Road, Zhengzhou, Henan, China Information source : http://www.vipeakgrinder.com/

Hyper Pressure V Type Grinder is elaborately designed by our grinder engineers through the customer's production requirement and actual using experience, and also is a kind of new type high performance grinding machine . Comparing with the traditional trapezium grinder and high pressure supension grinder, it has many advatages. It is widely used in glass, rubber, pesticide, porcelain enamel, paint, phosphate fertilizer and paper making, etc chemical industry. And it is used for grinding the Moh's hardness is below 7, humidity is 6% and non-flammable, non-explosive materials like talcum, barite, calcite, limestone, manganese ore, iron ore, ore, quartz, gypsum, bentonite, etc. Working Principle: After reducing driving force of the main motor by the gear reducer, when the drive center axis and the quincunx rack fixed on the center axis revolve, under the centrifugal force the roller revolves around the center axis, at the same time parallel swing around the shaft, making the roller compress out side to the ring, thus ensure that the roller and ring has maximum surface contace. At the same time the roller self revolves around the roller shaft, making the material scooped up by the shovel blade to grind, after grinding the powder blew to upper part of the mainframe, the separating by the separator, too coarse powder drops to the grinding room to re-grind, the qualified powder airflows into the cyclone powder collector, through the discharging pipe is qualified product. Equipment advantages: Roller Assembly of the Hyper-pressure V type grinder is composed of roller sleeve, roller shaft, roller shaft and bearing. Roller sleeve is double tube structure: through the uper and lower two bearing the right tube installs roller shaft and roller, the left tube installs the shaft of roller, the two ends are vertically fixed on the upper part and the lower part of the quincunx rack. Technical Advantages: 1.New technique (quincunx rack and V type roller device), can directly change the centrifugal force into the grinding force, that is to say centrifugal force equals grinding force, and also the roller parallel swings around the vertical shaft, making the roller compact to the ring, thus ensure that the roller and ring has maximum surface contact, the capacity can be increased 40% . 2.The separator adopts two types according to the final product fineness, one adopts blade type (80-325 mesh), the other adopts mouse type (200-1250mesh). 3.Air conveying and final product collecting system all changes negative pressure, secondary high efficient powder catcher makes final product’s collecting more thoroughly. 4.Advanced and reasonable structure; highly low equipment’s vibration; low noise; stable mechanical operation and reliable performance. Contact us: TEL : 86-371-67770550 Fax:86-371-67431834 Contact email:[email protected] Address: No.43,Tongbai Road, Zhengzhou, Henan, China Our grinding machine website: http://www.vipeakgrinder.com/
