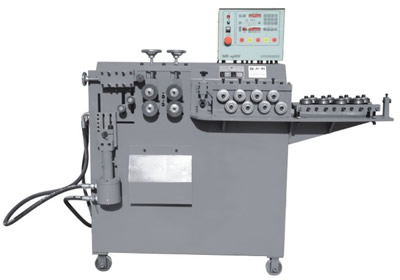

Ring maker for filter cage It is used to form round wire rings, the welding will be done with a separate butt welder. Ring maker for filter cage This machine is used to form round wire rings, the welding will be done with a separate butt welder. Wire Ring Making Machine Model: DQ1000K Input voltage: 380V (3-phase) Power freq.: 50Hz/60Hz Rated power: 2.2KVA Ring diameter: less than 300mm Wire thickness: 2.8-6mm Cooling method: water cooling Features Hydraulic motor transmission, input power only 2.2KVA, smooth, fast and accurate loading, forward or reverse rotation Electromagnetic oil valve, high-end oil pump with custom made oil disk provides stable oil pressure and variable speed Capable of saving up to 15 parameters, works easily with different ring radiuses and arcs Digital display, good for accurate and fast control 6-digit counter, easy to manage order quantity Reserved connector for extended functions Note: if input voltage is not 380V, a 3KVA 3-phase transformer is needed

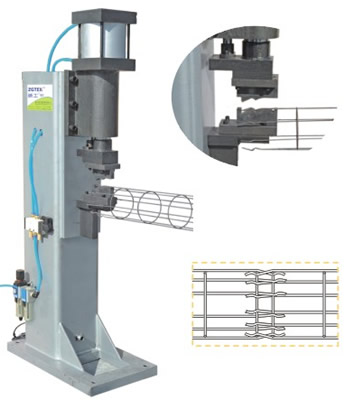

Multi-bending machine for split cages Flexible, different shapes can be achieved by using different fixtures. Multi- bending machine for split cages. This device is used to bend the end of a cage section to get the desired shape so that where two sections can be jointed(claw-type) without the aid of other parts.It's flexible, different shapes can be achieved by changing the fixtures, it's easily contolled by a pedal. Simple but Effective.

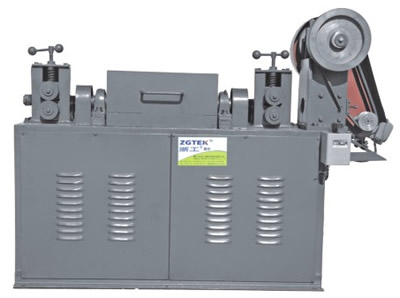

Medium-speed Wire Straightening Machine 1.Speed:25m/min 2.Wire straightening and cutting 3.Filter cage's vertical wire maker Medium-speed Wire Straightening Machine 1. Suitable for steel wire thickness: 2.8-5mm 2.Speed:25m/min 3.Wire straightening and cutting 4.Filter cage's vertical wire maker

Cage welding machine line Filter cage welding machine Non-stop cage welding Easy line setup 54 cage pitch settings Cage Welding Machine Line Line setup is as shown below: No Item Model No Remarks 1 Wire straightening machine TZ2.8-5 2 Ring making machine DQ1000K 3 Butt welder UR-40 UR-40 is recommended to weld MS, GI wire rings, ARW Argon Arc welder/TIG welder is recommended to welder SS rings 2-3 Ring making and butt welding integrated machine R-6-400 High throughput and easier operation 4.1 24-wire cage welding machine DLN-24-5 8, 10, 12, 14, 16, 18, 20 24 wires; OD: 100-200mm 4.2 16-wire cage welding machine DLN-16-5 8, 10, 12, 16 wires; OD 100-160mm 5 Top cap welder DS-50/DS-80 DS-80 is recommended when the power source voltage is relatively low and/or when welding zinc-plated wires 6 Bottom cap welder DX-50/DX-80 DX-80 is recommended when the power source voltage is relatively low and/or when welding zinc-plated wires Note: The six types of machines in the above table are the basic configuration of a cage welding line Choose either 4.1 or 4.2 depends on the application Choose 2 and 3 or 2-3 depends on the capacity requirement In case of setting up three or more lines, top cap welder, bottom cap welder, wire straightening machine and ring making machine can be share

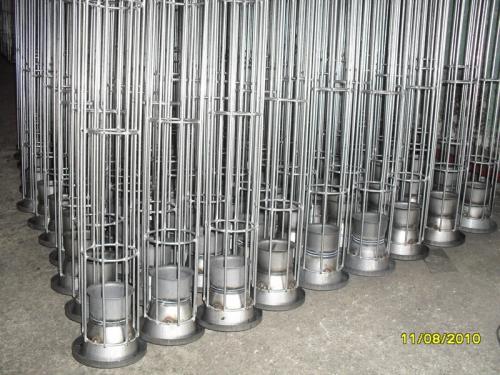

Bag filter cage Filter bag cage Dust collector Bag filter Cage welding machine Bag filter cage Filter bag cage, wire cage, filter cage, Filter cage welding machine line 24-wires, 6mL,25pcs/hr Filter bags, Bag filters Filter felt bags Filter cages are used to support filter bags in baghouse/ dust collector Air filter
