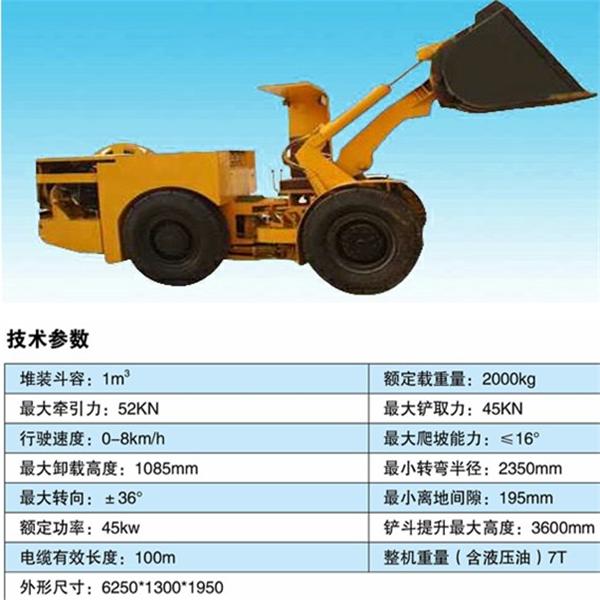

CYJ -1 Underground Electric Scooptram Performance and Use 1 Underground Electric Scooptram CYJ - 1 adopts Ac 380 V three-phase asynchronous motor, rubber tire, front and rear axle drive at the same time. 2 Adopts the advanced way of adopts hydrostatic transmission, gear-box and hub reduction gear, which changes the old models’ layout form of oscillating axle. 3 And it has overcome the defects of oscillating axle’s high failure rate, maintenance troubles, hidden dangers, greatly reduced the investment of manpower and material resources. 4 The running system adopts hydrostatic transmission, gear-box and hub reduction gear. Synchronous winding down device of cable was used in the process of walking to make the tractor shovel is more flexible in the work. 5 Suitable for mining and roadway drivage slag, the construction of the road and work place, material transportation and so on. The Electric LHD HKCYJ – 1has the advantage of compact structure, flexible and convenient operation. Technical Parameter: Heaped Bucket Capacity：1 m³ Payload Capacity：2000kg Max. Traction：52 KN Max. Shovel Force ：45KN Running Speed：0—8km/h Max. Climbing Ability ：16° Max .Discharge Height ：1085mm Min. Turning Radius : 350mm Max. Rotation Angle ：±36° mi Min. Ground Clearance :195mm Nominal Power :45kw Max. Bucket Height:3600mm Effective Cable Length :100m Weight(include hydraulic oil):7T Dimensions :6250*1300*1950

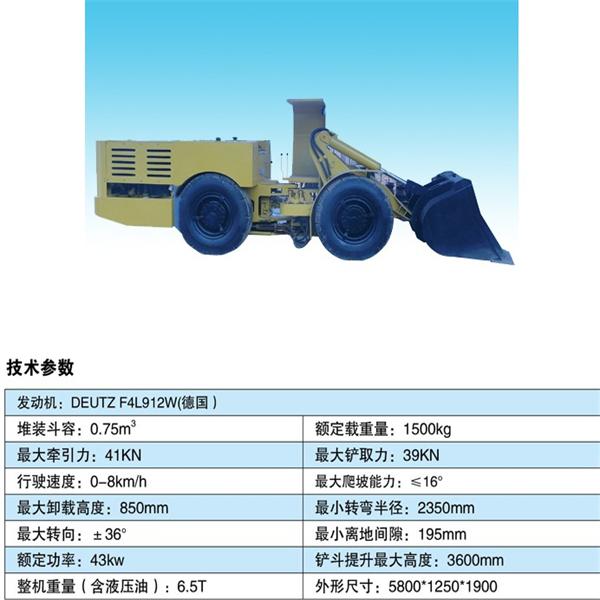

CYJ -0.75 Underground Diesel Scraper Performance and Use 1 Underground Diesel Scraper CYJ - 0.75 adopts German original DEUTZ AG F4L912W engine with low emissions, low pollution. 2 Main pump and motor adopts original SAUER products of U.S .The scooptram adopts the advanced way of three-point suspension articulated, which changes the old models’ layout form of oscillating axle. 3 And it has overcome the defects of oscillating axle’s high failure rate, maintenance troubles, hidden dangers, greatly reduced the investment of manpower and material resources. 4 Suitable for mining and roadway drivage slag, the construction of the road and work place, material transportation and so on. Technical Parameter: Motor：DEUTZ F4L912W（Germany） Heaped Bucket Capacity：0.75 m³ Payload Capacity：1500kg Max. Traction：41 KN Max. Shovel Force ：39KN Running Speed：0—8km/h Max. Climbing Ability ：16° Max .Discharge Height ：850mm mi Min. Turning Radius :2350mm Max. Rotation Angle ：±36° Min. Ground Clearance :195mm Nominal Power :43kw Max. Bucket Height:3600mm Weight(include hydraulic oil):6.5T Dimensions :5800*1250*1900

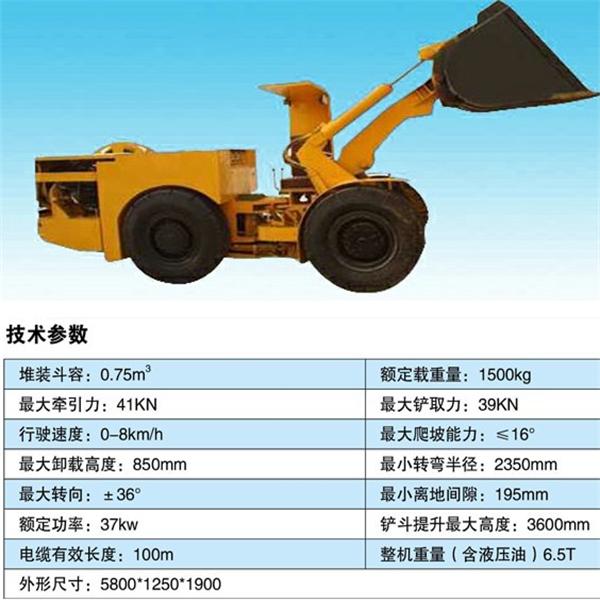

CYJ - 0.75 Underground Electric Scooptram Performance and Use 1 Underground Electric Scooptram CYJ - 0.75 adopts Ac 380 V three-phase asynchronous motor, rubber tire, front and rear axle drive at the same time. 2 Adopts the advanced way of three-point suspension articulated, which changes the old models’ layout form of oscillating axle. 3 And it has overcome the defects of oscillating axle’s high failure rate, maintenance troubles, hidden dangers, greatly reduced the investment of manpower and material resources. 4 Synchronous winding down device of cable was used in the process of walking to make the tractor shovel is more flexible in the work. 5 Suitable for mining and roadway drivage slag, the construction of the road and work place, material transportation and so on. Technical Parameter: Heaped Bucket Capacity：0.75m³ Payload Capacity：1500kg Max. Traction：41 KN Max. Shovel Force ：39KN Running Speed：0—8km/h Max. Climbing Ability ：16° Max .Discharge Height ：850mm Min. Turning Radius :2350mm Max. Rotation Angle ：±36° Min. Ground Clearance: 195mm Nominal Power :37kw Max. Bucket Height:3600mm Effective Cable Length :100m Weight(include hydraulic oil):6.5T Dimensions :5800*1250*1900

Super thin sings hydraulic cylinder RMC-1001 Product Name: Super thin sings hydraulic cylinder Descript: RMC Super thin single hydraulic cylinder Low height is suit for working in narrowness;Short stroke can block up times and times The surface of plunger is finished with chrome plate to protect the using of longvity of the product. Plunger has function of retracting automatically. ITEM NO :RMC-1001 Tonnageton(T) :100 Work travel(mm) :16 Cylinder Effective Area(cm2) :95 Oil Capacity(L) : 0.211 Collapsed Height(mm) : 86 Extended Height(mm) :102 Outside Dia. (?mm) :185*160 Cylinder Bore Dia.(?mm) :130 Plunger Dia(?mm) :110 Thread for input oil-port(zg) : 3/8"-19 Saddle Protrusion from Plgr.(mm) : 2 Weight(kg) :15.7

Super thin sings hydraulic cylinder RMC-501 Product Name: Super thin sings hydraulic cylinder Descript: RMC Super thin single hydraulic cylinder Low height is suit for working in narrowness;Short stroke can block up times and times The surface of plunger is finished with chrome plate to protect the using of longvity of the product. Plunger has function of retracting automatically. ITEM NO :RMC-501 Tonnageton(T) :50 Work travel(mm) :16 Cylinder Effective Area(cm2) :56.7 Oil Capacity(L) :0.113 Collapsed Height(mm) : 69 Extended Height(mm) :85 Outside Dia. (?mm) :138*115 Cylinder Bore Dia.(?mm) :95 Plunger Dia(?mm) :85 Thread for input oil-port(zg) : 3/8"-19 Saddle Protrusion from Plgr.(mm) : 2 Weight(kg) :7
