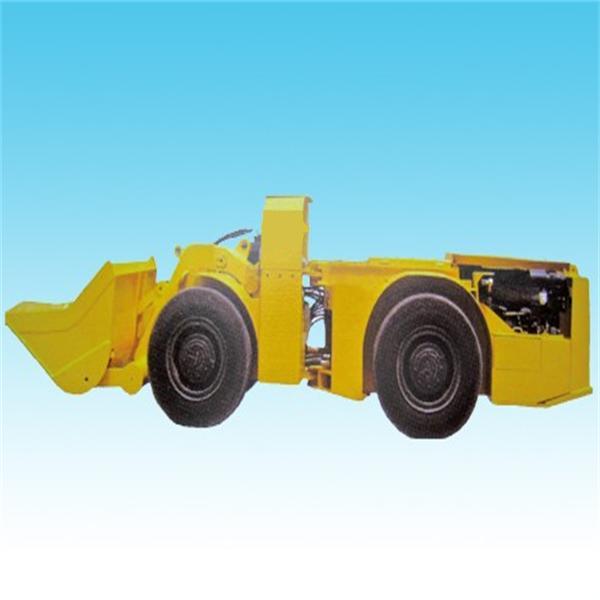

CYJ-2 Diesel LHD Performance and usage 1 CYJ -2Diesel LHD adopts German DEUTZ AG F6L912W engine.Transmission system adopts DANA 's hydraulic torque converter and power shift gearbox ,which is easy operation and running smooth. 2 The braking system adpots hydraulic double pipe work system ,and equipped with multi--disk wet brake,self-developed antiskid differential mechanism of NO-SPIN.It is security and reliable when working in harsh, high water saturation environments and muddy tunnel. 3 The main components of the hydraulic system adopts well-known manufacturers ' products both at home and abroad, manual operating diverter valve control the steering. 4 Using pilot valve with ergonomics handle to control the bucket arm lifting and bucket tilting. Technical Parameter Motor：DEUTZ F6L912 （Germany） Hydraulic - Torque Force Model：C273.1—295 Power Transmission Model：RT20324—12 Drive Axle Type：NO—SPIN Braking System：Working Braking, Parking Brake Bucket Capacity:2 m3 Maximum Lifting Height：3740mm Min. Ground Clearance:250mm Loading Capacity: 12000kg Climbing Ability：16° Maximum Traction ：100KN Max. Shovel Force：80KN Hydraulic Tank Capacity：156L Running Speed：0—10km/h Steering Angle: ±33° Min. Turning Radius (outside):5200mm Dimensions（Length* Width*Height）：7300 * 1500 * 2050

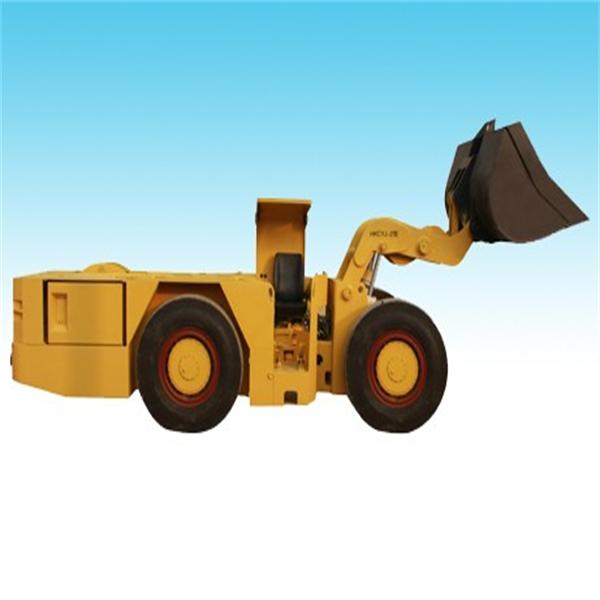

CYJ-2 Electric LHD Performance and usage 1 CYJ - 2 electric LHD is mainly used for mine, to load and transport the loose material which is left after the bursting. 2 Also it can be used for tunnel engineering such as underground railway, highway and water conservancy, especially suitable for workingplane of poor work conditions , narrow working platform, low and muddy working face. 3 Transmission system adopts DANA 's hydraulic torque converter and power shift gearbox ,which is easy operation and running smooth. 4 The braking system adpots hydraulic double pipe work system ,and equipped with multi--disk wet brake,self-developed antiskid differential mechanism of NO-SPIN.It is security and reliable when working in harsh, high water saturation environments and muddy tunnel. 5 The main components of the hydraulic system adopts well-known manufacturers ' products both at home and abroad, manual operating diverter valve control the steering. 6 Using pilot valve with ergonomics handle to control the bucket arm lifting and bucket tilting. Elaborate designed and manufactured electric scraper has beautiful shape and high work efficiency. Technical Parameter Motor Model：Y2—250—4 Motor Power:60KW Motor Voltage:380V Hydraulic - Torque Force Model：C273.1—295 Power Transmission Model：RT20324—12 Drive Axle Type：NO—SPIN Braking System：Working Braking, Parking Brake Bucket Capacity：2 m3 Max. Lifting Height：3740mm Mini. Ground Clearance:250mm Loading Capacity: 12000kg Climbing Ability：16° Max. Traction：100KN Max. Shovel Force：80KN Hydraulic Tank Capacity：156L Running Speed：0—10km/h Control Voltage：AC36V Lighting Voltage:AC24V Steering Angle: ±33° Min. Turning Radius (outside):5200mm Dimensions（Length* Width*Height）：7300 * 1500 * 2050

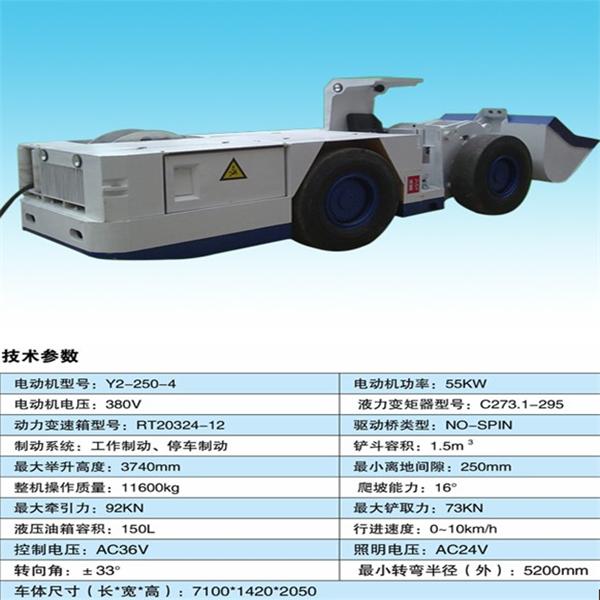

CYJ-1.5 Electric LHD Performance and usage 1 CYJ 1.5 electric LHD adopts hydraulic mechanical system, three-phase AC motor driver. It's transmission, torque converter, differential mechanism and drive axle are realized localization. 2 The design appearance and function as same as import products, and more cheaper , more convenient in operation and maintenance. 3 It has the characteristics of four -wheel –drive ,full -hydraulic steering ,three point articulate before and after car body. 4 Also has the advantages of small size, long lifespan ,big strength in breakout force and work reliable. 5 Suitable for mining and road way drivage slag, the construction of the road and work place, material transportation and so on. Technical Parameter Motor Model：Y2—250—4 Motor Power:55KW Motor Voltage :380V Hydraulic - Torque Force Model：C273.1—295 Power Transmission Model：RT20324—12 Drive Axle Type：NO—SPIN Braking System：Working Braking, Parking Brake Bucket Capacity:1.5 m3 Max. Lifting Height：3740mm Mini. Ground Clearance:250mm Loading Capacity: 11600kg Climbing Ability：16° Max. Traction：92KN Max. Shovel Force：73KN Hydraulic Tank Capacity：150L Running Speed：0—10km/h Control Voltage：AC36V Lighting Voltage:AC24V Steering Angle: ±33° Min. Turning Radius (outside):5200mm Dimensions（Length* Width*Height）：7100 * 1420 * 2050

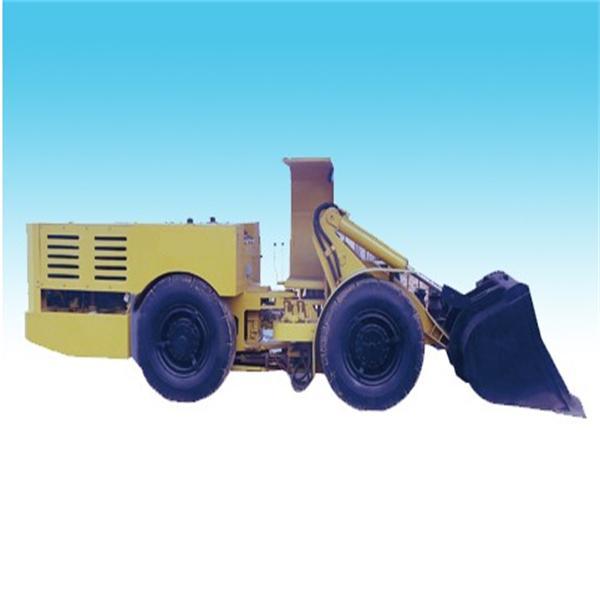

CYJ -1 Underground Diesel Scraper Performance and Use 1 Underground Diesel Scraper CYJ -1 adopts German original DEUTZ AG BF4L2011engine with full of power . 2 Main pump and motor adopts Ukraine original hydraulic power which can be exchanged with SAUER products of USA .Adopts the advanced way of three-point suspension articulated, which changes the old models’ layout form of oscillating axle. 3 And it has overcome the defects of oscillating axle’s high failure rate, maintenance troubles, hidden dangers, greatly reduced the investment of manpower and material resources. 4 The running system adopts hydrostatic transmission, gear-box and hub reduction gear. Synchronous winding down device of cable was used in the process of walking to make the tractor shovel is more flexible in the work. 5 Suitable for mining and roadway drivage slag, the construction of the road and work place, material transportation and so on. The Electric LHD HKCYJ – 1has the advantage of compact structure, flexible and convenient operation. Technical Parameter: Motor：DEUTZ BF4L2011（Germany） Heaped Bucket Capacity：1 m³ Payload Capacity：2000kg Max. Traction：52KN Max. Shovel Force ：45KN Running Speed：0—8km/h Max. Climbing Ability ：16° Max .Discharge Height ：1085mm mi Min. Turning Radius :2350mm Max. Rotation Angle ：±36° Min. Ground Clearance :195mm Nominal Power :55.1kw Max. Bucket Height:3600mm Weight(include hydraulic oil):7T Dimensions :6250 *1300*1950
