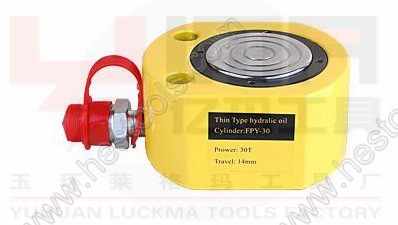

Super thin sings hydraulic cylinder RMC-301 Plunger has function of retracting automatically. ITEM NO :RMC-301 Tonnageton(T) :30 Work travel(mm) :12 Cylinder Effective Area(cm2) :31.1 Oil Capacity(L) :0.05 Collapsed Height(mm) : 63 Extended Height(mm) :75 Outside Dia. (?mm) :115*95 Cylinder Bore Dia.(?mm) :75 Plunger Dia(?mm) :63 Thread for input oil-port(zg) : 3/8"-19 Saddle Protrusion from Plgr.(mm) : 2 Weight(kg) :4.5

RMC-L Multi-Day Jack RMC-101L Item No:RMC-101L Output￡¨T):10 Stroke￡¨mm) :25 effactive area(cm2):11.3 oil capacity (L) :0.022 height of product(mm) :47 extended height(mm):74 Outside dia .mm :81×56 bore dia mm :43 plunger Dia mm:38 Weight (kg) :1.5

RMC-L Multi-Day Jack RMC-201L Item No:RMC-201L Output￡¨T):20 Stroke￡¨mm) :26 effactive area(cm2):19.6 oil capacity (L) :0.041 height of product(mm) :52 extended height(mm):80 Outside dia .mm :100×77 bore dia mm :60 plunger Dia mm:53 Weight (kg) :2.4

RCH-10075 Single-action hydraulic jack Name:RCH hollow jack Tonnage(T):100T Travels(mm):75mm Pressure area:94.98cm 2 Oilreserves:1.2L original height:254mm General high:340mm OD:180mm ID:140mm plunger Dia:110mm Weight:41kg

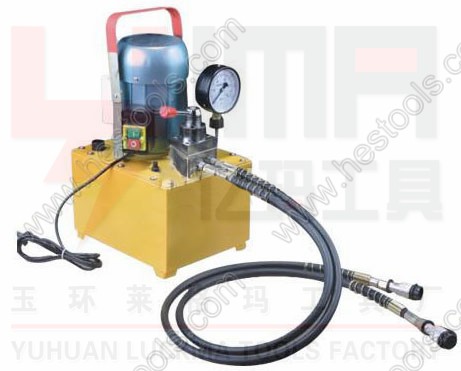

Electric pump DYB-63AB high pressure hydraulic pump Detailed Product Description Model: DYB-630AB(ONE-WAY) Rated pressure: 63Mpa Rated flow: 0.72L/min Motor power: 750W Voltage: 380V/220V Frequency: 50-60Hz Rotating speed: 1400r/min Oil storage capacity: 8L Active: 6L External dimensions: 30×24×38cm Weight: 22KG
