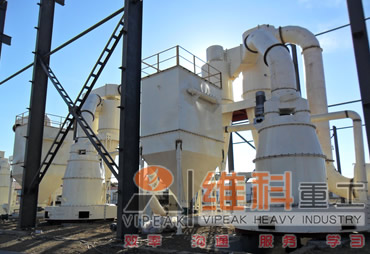

High Pressure Medium Speed Grinder (High Pressure Suspension Mill), the new design, from VIPEAK is used to grind barite, limestone, kaolin, and ceramics and slag, whose Moh's hardness is below 9.3 scales, non-inflammable and non-explosive material.  Working Principle of High Pressure Medium Speed Grinder: The grinding Process of the Main Mill is that the transmission device brings along the Central Shaft to drive. The upper part of the shaft connects with the Quincunx Rack, on the frame is loaded with the roller assembly, and forms a swinging pivot. The central shaft does revolve around the central rotation, at the same time it revolves around the grinding rings, and it self also rotates on account of the grinding effect. The shovel system, in the lower part of rollers, is loaded on the lower part of the Quincunx Rack. In the process of rotating of the shovel and the roller, the material will be fed gasket layer between the rollers and ring. The outside centrifugal force (compression force) yielding in this process will process the material into small powder, thus the desired powder is obtained. Product Advantages of High Pressure Medium Speed Grinder:(1) Our patent product(2) Product size is adjustable in the range of 80 - 425 meshes(3)Better design, low cost If you are interested in it, please visit our website: Company Name: Vipeak Heavy Industry Machinery Co., Ltd Phone: 86-371-67770550 Fax:86-371-67431834 Mobile Phone: 8613674913808 Address: No.43,Tongbai Road, Zhengzhou, Henan, China Zip Code:450007 grinding mill:http://www.crushingmill.com/ talc grinding machines china http://www.vkconecrusher.com/stone-crusher_86.html Email:[email protected]

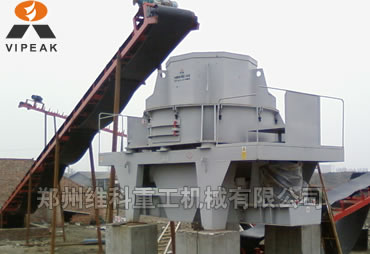

Sand Making Machine (namely PCL Vertical Shaft Impact Crusher) is of high-power and low-consumption, which is designed depending on several year’s hard work and study of mechanical mining equipment. Sand Making Machine absorbed the advanced technology of the same products of Barmac Company of America, now is of the international level. Sand Making Machine plays an important role in crushing minerals into pieces. PCL Vertical shaft Impact Crusher is widely used in all kinds of mineral, cement, corhart, carborundum grain, glass raw material, machine making construction sand, stone stock and all kinds of metallurgy slag, especially carborundum, sintered bauxite, magnesite, and so on materials with features of very hard and anticorrosion. And Sand Making Machine is more productive than other kind of crushers. Characteristics of Vertical Shaft Impact Crusher (Sand Making Machine): Simple structure and low operating cost; High crushing ratio with low consumption; Function of fine crushing and crude grinding Slightly influenced by moisture content of material, and the max moisture content is about 8%; More suitable for crushing mid-hardness and high hardness materials; Cubic shape of final products, high density of piling up and low iron pollution; More wearable and easier maintenance; Low working noise (lower than 75 decibel) and light dust pollution. If you are interested in it, please visit our website: Model: PCL Series Impeller Speed(r/min):800-1200, 1000-1700, 1500-2500, 2000-2600 Capacity (t/h):8-50, 25-65, 60-150, 100-260, 160-360 sand making machine:http://www.vipeakgrinder.com/sand_making_machine.html sanding machine India http://www.impactscrusher.com/stone-crushing/Sand_Making_Machine.asp Company Name: Vipeak Heavy Industry Machinery Co., Ltd Phone: 86-371-67770550 Fax:86-371-67431834 Mobile Phone: 8613674913808 Address: No.43,Tongbai Road, Zhengzhou, Henan, China Zip Code:450007 Email:[email protected]

For higher productivity, better reliability and flexibility, long service life, and better final product quality, the Symons type cone crusher is absolutely your best choice. Symons type cone crusher offer several outstanding features such as excellent tramp release system, unique hydraulic lifting system, high crusher throw and reasonable cavity design, all of these features ensure the Symons type cone crusher can offer the unbeatable performance in secondary, tertiary and quaternary applications. If your aggregate or mining business demands the 24-hours running, high-reduction, big capacity application, you will find the Symons type cone crusher optimized for your demands. The innovations like the stable lubrication, excellent sealing feature, great abrasive material applied in key components and rugged construction effectively reduce the wear rate , extend the replacement period of the spare parts, evidently reduce the production cost in per ton hour material processed. All of these can help you to achieve the highest level of profitability. Symons Type Cone Crusher Main Features: 1. Higher capacity and less wear costs. 2. Wide range of application suitability. 3. Easy to maintain, reduce the downtime and maintenance costs. 4. Stable running performance and easy operation. cone crusher: http://www.crushingmill.com/ used cone crusher for sale http:// www.grinderpro.com/Impact.html Company Name: Vipeak Heavy Industry Machinery Co., Ltd Phone: 86-371-67770550 Fax:86-371-67431834 Mobile Phone: 8613674913808 Address: No.43,Tongbai Road, Zhengzhou, Henan, China Zip Code:450007 Email:[email protected]

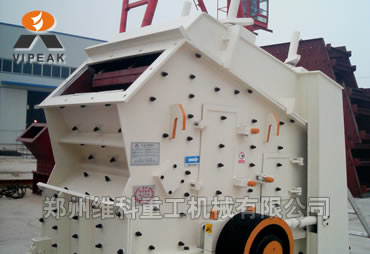

　　Impact Crusher is used in both primary and secondary crushing applications of aggregate, and in recycle crushing of reinforced concrete, asphalt and other construction and debris. VIPEAK is a reliable supplier of Impact Crusher with new design.Impact Crusher is composed of rotor, impact rack, frame, ratchet cover device, Transmission Device and other parts. 　　Working Principle of Impact Crusher: When the Impact Crusher works, the motor drives the rotor rotate of the Impact Crusher with high speed, on the rotor where installed the hammers. When the materials get into the area which the hammers affect, under the impact function of the hammer at a high speed, the materials are thrown to the impact device above the rotor continuously. And then the materials are rebounded from the impact liner to the area where the hammers effects for being re-crushed. The materials from large to small all to be crushed at the impact chamber repeatedly. The process won’t stop till the material are crushed to the required size and then discharged from outlet of the Impact Crusher. 　　Characteristics of Impact Crusher: Excellent cubic final products Special structure Non-key connection High chrome hammer Durability in long time simplicity in operation Easy adjustment, high reduction ration Good performance and high reliability If you are interested in ,please visit our website: Model: PF-1007, PF-1010,PF-1210,PF-1214,PF-1315 Max Feeding Size (mm):300, 350,400 Capacity (t): 35-50, 50-80, 70-120, 80-180, 120-260 Impact crusher : http://www.grinderpro.com/Impact.html quarry machinery for sale http://www.impactscrusher.com/stone-crushing/Symons_cone_crusher.asp Company Name: Vipeak Heavy Industry Machinery Co., Ltd Phone: 86-371-67770550 Fax:86-371-67431834 Mobile Phone: 8613674913808 Address: No.43,Tongbai Road, Zhengzhou, Henan, China Zip Code:450007 Email:[email protected]

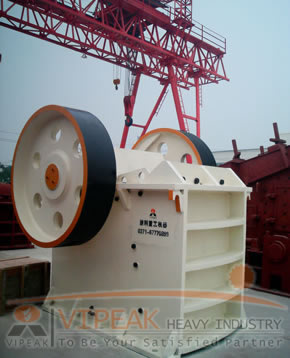

Jaw Crusher is one of the most popular stone-crushing equipments in the world, Jaw Crusher is ideally suitable for primary and secondary crushing. The highest anti-pressure strength of crushed material is 320MPa. It is widely used in mining, metallurgy, construction, highway, railroad, and chemistry industries and etc. Many models are available according to your different fineness requirements. Main structure of Jaw Crusher: Jaw Crusher mainly consists of main frame, eccentric shaft, belt wheel, flying wheel, movable jaw plate, side board, toggle plate, back seat for toggle plate; gap adjusting screw, returning spring, fixed jaw plate, movable jaw plate and so on. The toggle plate also plays the role of protecting. Working Principle of Jaw Crusher: Motor drives belt and belt pulley, makes moving jaw up and down through eccentric shaft. When the moving jaw is up, the angle between lining plate and moving jaw becomes large, and this will push moving jaw plate close to the fixed jaw plate. During this process, the material is crushed and ground, thus the crushing will be done. When the moving jaw is down, the angle between lining plate and moving jaw becomes small, the moving jaw plate will leave the fixed jaw plate on account of the effect of pulling bar and spring, and then the crushed material will be discharged from the lower opening of the crushing room. With the motor continuously rotating and the material periodically crushed and discharged by the crusher, the mass production can be realized. And also we have many models of Jaw Crusher: such as PE Series and PEX Series Model: PE150×250,PE150×750,PE250×400,PE500×750,PE600×900,PE750×1060,PE900×1200,PEX250×750,PEX250×1000,PEX250×1200,PEX300×1300 Max Feeding Size (mm):125, 210, 340, 425, 500, 630, 750, 850, 1020 Capacity (t): 5~16, 5~20,16~65,45~100,90~180,110~260,160~410,250~480, 350~800 Company Name: Vipeak Heavy Industry Machinery Co., Ltd Phone: 86-371-67770550 Fax:86-371-67431834 Address: No.43,Tongbai Road, Zhengzhou, Henan, China Zip Code:45000 Jaw cruhser:http://www.vipeakgroup.com/Jaw.html crushing equipment europe:http://www.impactscrusher.com/stone-crushing/Frame_Construction_Series_Jaw_Crusher.asp Email:[email protected]
