European version of the Coarse Grinding Plant, engaging in crushing various rocks and stones with comprehensive strength not higher than 320 MPa into fine and micro fine powders, is widely used in metallurgy, mining, chemical, cement, coal, sand-making, coal gangue, construction, refractory materials and ceramic industries. Features of European version of Coarse Grinding Plant: 1.High manufacturing capacity and low power consumption; 2.Uniform particle size with high crushing ratio; 3.Simple structure; 4.Easy operation and low investment. Working Principle of European version of the Coarse Grinding Plant: Hammer crusher mainly consists of frame, rotor, support iron and grate bars. The frame is divided into two parts: upper part and lower part, which are welded by steel plates after being cut. Liners made of high manganese steels within the frame can be replaced after being worn out. The rotors consist of turnplates, pin shafts, and hammers which are grouped regularly in the main shaft. The main unit drives the main shaft through the motor and triangle belts, which, in turn, rotates the rollers. Large materials entering the crusher through the feed inlet are firstly crushed by the high-speed hammers, and then thrown fiercely to the support iron for further crushing. Qualified materials crushed will be screened out and exit from the gap of the grate bars while the unqualified will be left in the crushing cavity to be further hammered and ground until reach the standard size. The size of the final product can be adjusted by changing the grate bars. The gap between the rotors and the grate bars can also be adjusted according to different requirement. To avoid the plugging of the crusher, the proportion of water for the crushing materials is no more than 20% grinding mill
grinding machine
grinder machine
grinder mill
grinder machine
grinding mill
grinding machine
grinder mill
grinder machine
grinding mill
grinding machine
grinder mill
Shanghai Clirik Machinery Co., Ltd Address: No.19Fuqing Rd,Shanghai 201201,China http://saico.net http://www.clirik.com http://www.micro-mill.org http://www.grinding-equip.com http://www.mill-grinding.com http://www.shsaico.com http://www.fensuijiw.com http://www.weifenji.net http://www.clirik.net http://www.mill-equip.com http://www.clirik.cn

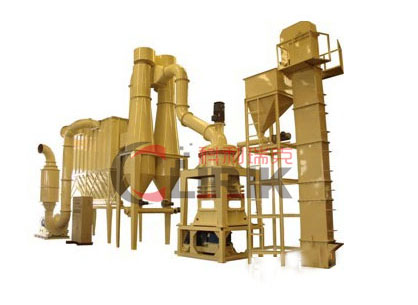

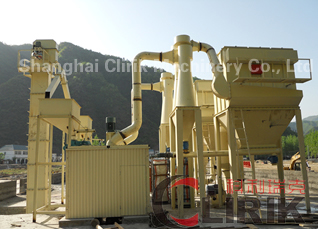

HGM series ultrafine mill is the new type mining equipment for making micro powders, fine powders，which is widely applied in the industries of metallurgy, mining, chemistry, cement, construction, refractory materials, ceramics, and so on. Grinding materials of Clirik ultrafine mill: The purpose of the Ultrafine Mill is for super-fine grinding materials with hardness less than 6 in Moh‘s scale and humidity less than 6 percent such as kaolin, limestone, calcite, marble, talcum, barite, gypsum, dolomite, bentonite mud, mica, pyrophyllite, sepiolite, carbon black, diatomite, graphite, alunite, fluorite, potassium feldspar, phosphorite, pigment, up to 200 kinds. The granularity (or final size) of the finished products can be freely adjusted between 325-3000meshes (0.045-0.0057mm), and the capacity (ton/hour) ranges from 0.4T/H to 7.5T/H depending on the final size and the grinding materials. Main Components of HGM series ultrafine mills: HGM series ultrafine mill mainly consists of main unit, classifier, dust cleaner, powder collector, blower, muffler, hammer crusher (can be replaced by jaw crusher), bucket elevator, sound-proof room, storage hopper, vibrating feeder and so on. Working Principle of Clirik Ultrafine Mill: When the grinding mill is at work, all the grinding rollers are rolling in the ring, and the materials are driven to the edge of the turnplate by the centrifugal force and fall down into the grinding chambers where the materials are repeatedly pressed, crushed and grinded by the rollers. The high-pressure air blower constantly inhales air within the grinding mill and, in turn, the airflow with crushed materials are brought to the classifier whose high-speed impeller will screen the airflow: the unqualified particle size will fall and return to the mill for being reground while the qualified particle size mixed with air will go into the cyclone powder collector. Most of the qualified powders will fall and exit from the discharging valve at the bottom; a small proportion of the fine powders, with airflow, moves to the dust cleaner, and clings to the surface of the filter bags. At the same time, the fine powders clinging to the surface fall down by the sudden vibration of the filter bags, which is caused by the instantly ejected high-pressure gas controlled by the pulse valve. The materials from the above two lots are sent by the conveyor at the bottom to get finished powders packed. In addition, filtered clean air will be emitted from the air outlet of muffler in the end. Features of Clirik Ultrafine Mill: 1. The ultrafine mill is high efficient (twice as much as jet mill, mixing grinder and ball mill) 2. The spare parts of ultrafine mills can serve much longer time (2-3 times longer than that of impact mill or turbo mill. 3. High safety and reliability of the ultrafine mill (no rolling bearings and screws in the grinding cavity, so no problems caused by the wear of bearings or screws) 4. The ultrafine mills are characterized by high fineness (final size: 325-3000 mesh, D97<5 micron) 5. Environment-friendly Main Specifications of Ultrafine Mill: There are four models of our powder ultrafine mills: HGM8021, HGM9024, HGM10027, and HGM10036. The detailed specification and technical data of our ultrafine mills are as below: grinding mill
grinding machine
grinder machine
grinder mill
grinder machine
grinding mill
grinding machine
grinder mill
grinder machine
grinding mill
grinding machine
grinder mill
Shanghai Clirik Machinery Co., Ltd Address: No.19Fuqing Rd,Shanghai 201201,China http://saico.net http://www.clirik.com http://www.micro-mill.org http://www.grinding-equip.com http://www.mill-grinding.com http://www.shsaico.com http://www.fensuijiw.com http://www.weifenji.net http://www.clirik.net http://www.mill-equip.com http://www.clirik.cn

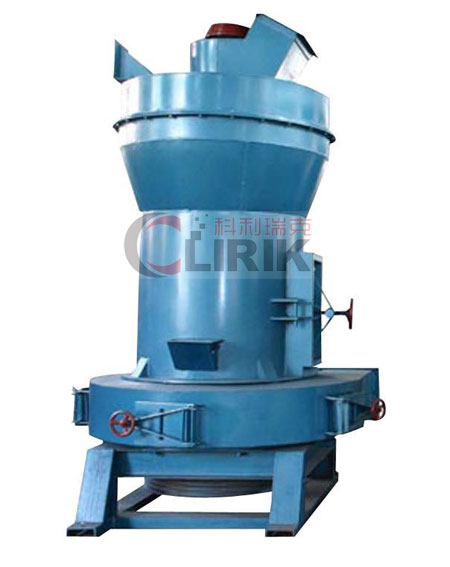

The Raymond mill is one main products of our company. And as one of the biggest production base in China, our company has produced the Raymond mill with better WOM in the Raymond mill market. Raymond Mill is applicable to the grinding and processing of more than 280 kinds of non-flammable and non-explosive materials with hardness less than 7 and humidity less than 6% in mining, construction, chemical industry and metallurgy, such as barite, calcite, feldspar, talcum, marble, limestone, clay, glass. The fineness of the finished product can be adjusted from 100 mesh to 325 mesh according to requirements. Technical features of Raymond Mill 1. High-efficiency: the full use of the jet-flow and optimized impeller structure can greatly improve the crushing and grading efficiency, thus greatly improving the production. 2. High grading degree: with the frequency conversion and grading adjustment technology, the Raymond mill have stable and complete grading system and the special sealing measure ,which can efficiently prevent the leaking of the fine particles .And the particle size can reach 500—6000monyh and the thinnest can reach 12000monyh. 3. Low wearing: the crushing wearing parts and the impeller of the Raymond mill mainly adopts German technology. And with the optimized design of the inner cavity structure and anti-abrasion and allergy materials, the Raymond mill has made the lowest wearing parts and the highest purity. Raymond Mill Repair and Maintenance 1. During the application of our Raymond mill, some personnel shall be arranged to take responsibility of management from beginning to end. The operators must be qualified with the required technical knowledge of operating grinding mills. Before the installation of this grinding mill, the persons related to the operation should receive technical training and fully understand the operating principle, performance and regulations of the Raymond mill. 2. In order to guarantee the Raymond mill in a normal working state, a safety operation system for the Maintenance of the equipment must be established. Only in this way can the Raymond mill be guaranteed to have a long-term and safe operation. Meanwhile, it is necessary to have the required repairing tools, lubricant and grease, spare parts and accessories during the operation. 3. After some period of running, the Raymond mill should receive an examination and repairing. The components vulnerable to worn out, such as grinding roller, grinding ring, relieving tool etc. should be repaired or replaced. Before and after the operation, a careful examination should be carried out for the connecting screws, bolts and nuts on the grinding rollers so as to find whether they are loose or sufficiently lubricated. 4. When their application time surpassing about 500 hours, all the rolling bearings in the roller sleeves of Raymond mill must be cleaned, and the damaged parts should be replaced. The oiling tool can be either a manual oiling pump or grease gun. grinding mill
