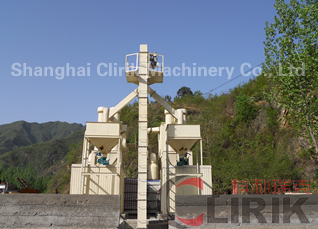

vertical roller mill is the equipment specializing in producing fine and superfine powder of non-inflammable, non-explosive and brittle materials with Mohs’s hardness under six, such as calcite, chalk, limestone, dolomite, kaolin, bentonite, talc, mica, magnesite, illite, pyrophyllite and vermiculite, sepiolite, attapulgite, rectorite, diatomite, barite, gypsum, alunite, graphite, fluorite, rock phosphate, kalium ore, pumice, etc., totally more than 100 kinds of materials. vertical roller mill mainly consists of main unit, classifier, powder collector, dust cleaner, blower, muffler, sound-proof room, crusher, bucket elevator, storage hopper, and vibrating feeder. Working principle of vertical roller mill: After crushed by hammer crusher, the large materials become small ones and are sent to storage hopper by elevator, edge of then evenly sent to the upper distribution plate of the turnplate by vibrating feeder and sloping feeding pipe. When the grinding mill is at work, all the grinding rollers are rolling in the ring, and the materials are driven to the edge of the turnplate by the centrifugal force and fall down into the grinding chambers where the materials are repeatedly pressed, crushed and grinded by the rollers. The high-pressure air blower constantly inhales air within the grinding mill and, in turn, the air flow with crushed materials are brought to the classifier whose high-speed impeller will screen the airflow: the unqualified particle size will fall and return to the mill for being reground while the qualified particle size mixed with air will go into the cyclone powder collector. Most of the qualified powders will fall an exit from the discharging valve at the bottom; a small proportion of the fine powders, with airflow, moves to the dust cleaner, and clings to the surface of the filter bags. At the same time, the fine powders clinging to the surface fall down by the sudden vibration of the filter bags, which is caused by the instantly ejected high-pressure gas controlled by the pulse valve. The materials from the above two lots are sent by the conveyor at the bottom to get finished powders packed. In addition, filtered clean air will be emitted from the air outlet of muffler in the end. Features of vertical roller mill 1. High efficiency Under the same finished final size and the same motor power, the capacity of micro powder grinding mill is twice as much as jet mill, mixing grinder and ball mill. 2. Long lifecycle of spare parts The ring and roller are forged by special material with high utilization. Under the same grinding material and finish special size, the lifecycle of spare parts is about one year, which is 2-3times longer than impact mill or turbo mill. Furthermore, the lifetime can reach 2-5 years for grinding calcite carbonate. 3. High safety and reliability As no rolling bearings or screws in grinding cavity, there are no problems caused by bolts shedding or rapid wear of bearings and seal components. 4. High fineness and flexible adjustment The final fineness of the grinding materials can be adjusted between 325 meshes and 3000 meshes, and the product fineness can reach D97≦5um. 5. Environment-friendly The application of pulse deduster and muffler greatly alleviates dust pollution and noise. Model and technical data of vertical roller mill Model HGM8021 HGM9024 HGM10027 HGM10036 Ring Diameter(mm) 800 900 1000 1000 Ring Number/pcs 3 3 3 4 Roller Number/pcs 21 24 27 36 Main Shaft Speed/r. p. min 230 200 180 180 Input Size/mm ≦20 ≦20 ≦20 ≦20 Finished Size/um 5-47 5-47 5-47 5-47 Capacity t/h 0.4-4.5 0.4-5.5 0.6-6.5 0.7-7.5 Outlet Size L*W*H/m 13.9*4*6.2 14.7*4.8*7.2 18*4.6*8.6 Shanghai Clirik Machinery Co., Ltd Address: No.19Fuqing Rd,Shanghai 201201,China http://saico.net http://www.clirik.com http://www.micro-mill.org http://www.grinding-equip.com http://www.mill-grinding.com http://www.shsaico.com http://www.fensuijiw.com http://www.weifenji.net http://www.clirik.net http://www.mill-equip.com http://www.clirik.cn

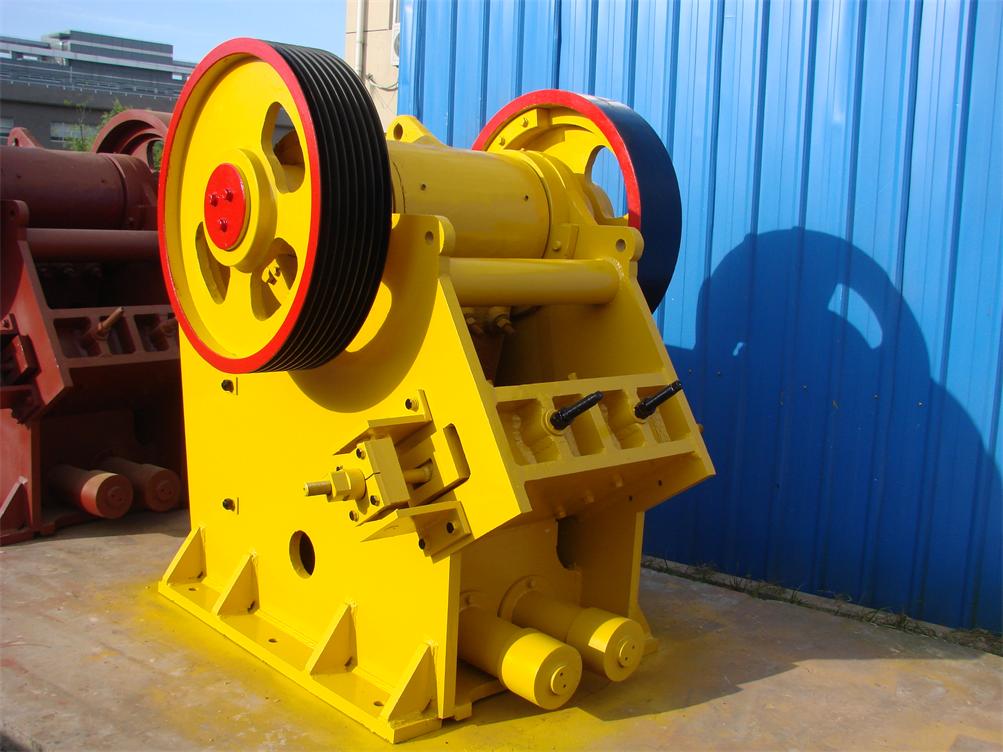

Jaw crusher is one of the most common crushing devices internationally, which is ideal for primary and secondary crushing. The maximum compressive strength of the machine can provide is 320Mpa. It is mainly used in industries of mining, metallurgy, construction, civil engineering and chemistry.

JC series jaw crusher is the most popular primary crushing and screen machinery. This prototype not only retains all the advantages of PE series jaw crusher and it has adopted many advanced crafting technology on itself. JC series jaw crusher is definite ideal crusher for hard and strong abrasion materials.

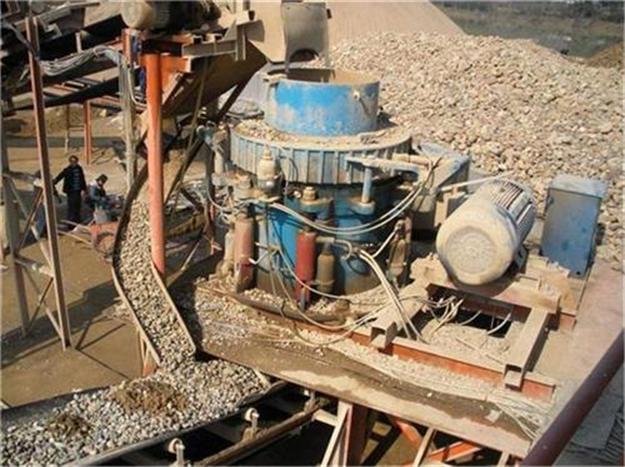

HP series hydraulic cone crusher adopts computer optimization design to speed up the main shaft. The new generation crushing chamber allows worker easily replace components to meet the fineness requirements. This crusher can be use in mining, building materials, metallurgy industries. It is ideal medium and fine crushing plant for iron ore, copper ore, granite, basalt, cobblestone, marble, limestone and other medium or upper level hardness materials.

Spring cone crusher is the earliest cone crusher, also it’s one the most common used crushing device. After optimized and improved by our research team, we offer the world PY series cone crusher. This new prototype is ideal machinery for crushing various hard and medium hard ores and rocks.
