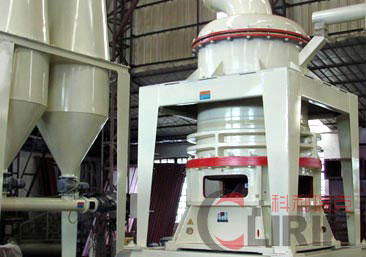

The Clirik mineral grinding machine is made of Jaw crusher, Cone crusher, Impact crusher or hammer crusher, bucket elevator, electro Vibrating feeder, main unit Grinding machine, optional equipment, blower, centrally electric control system, etc. According to customer Materials first enter Jaw crusher (or hammer crusher) to be crushed to smaller size. Then they are lifted to storage room by elevator. Vibrating feeder will feed materials into grinding chamber evenly and gradually. After being grinded, the powder will be blowing to cyclone by blower. Then the material will be transferred to storage room through pipes, and then will be discharged as final products. The whole process works in a negative pressure environment. First, through pipes, the air from the blower enters the cyclone collector above the storage room along with powder, and then returns to the blower through return pipe. In the way, air can be recycled. There is a powder locking equipment under the cyclone, which isolates the outside positive air pressure and the negative air pressure inside cyclone. And this ensures high productivity. In addition, the residual air and dust under the main unit grinding machine will be transferred to dust catcher equipment through pipes and be cleaned there. The clean air will be discharged so that environment will be protected. Shanghai Clirik Machinery Co., Ltd. is a manufacturer of HGM series grinding machine, rock grinding machine, stone grinding machines, milling machinery, ultrafine powder machine, and powder ultra fine machine. Grinding materials of our HGM Micro Powder Grinding machine include various stones and rocks, such as: Kaolin, limestone, calcite, marbles, barites, gypsums, pyrophyllites, dolomites, calcium carbonates, pigments, clays, coals, carbon black, activated carbons, feldspar, talc, mica, carbon black, petroleum coke, alumina, chromic oxide, quartz, cements, up to more than 100 materials. Product fineness can be controlled between 325~2500 mesh. Welcome to Shanghai Clirik Company. If you want to more information about our products, Please Chat with sales agent: Online Chat or give us the message, we will reply as soon as possible. grinding mill
grinding machine
grinder machine
grinder mill
grinder machine
grinding mill
grinding machine
grinder mill
grinder machine
grinding mill
grinding machine
grinder mill
Shanghai Clirik Machinery Co., Ltd Address: No.19Fuqing Rd,Shanghai 201201,China http://saico.net http://www.clirik.com http://www.micro-mill.org http://www.grinding-equip.com http://www.mill-grinding.com http://www.shsaico.com http://www.fensuijiw.com http://www.weifenji.net http://www.clirik.net http://www.mill-equip.com http://www.clirik.cn

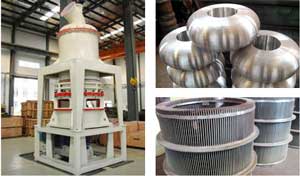

The Application of Barite Grinding Machine: HGM10036 Barite Grinding Machineis mainly applied to non-inflammable, non-explosive and brittle materials with Mohs hardness under six. Such as calcite, chalk, limestone, dolomite, kaolin, gypsum, etc, totally more than 100 kinds of materials. Product fineness can be controlled between 325~2500 mesh. Performance and features Of Barite Grinder Machine: 1.High efficiency Under the same final size and power, the product capacity of ultrafine mill is twice than jet mill and agitation mill. 2.Longer lifetime of spare parts The roller and ring are made of special material, which improve the grinding efficiency a lot. For same material and final size, the lifetime of its wearing parts can reach to more than one year, about 2-5 times as long as that of vertical shaft impact crusher and turbo-mill. Especially when handling calcium carbonate and calcite, the lifetime can reach 2-5 years. 3.High safety and reliability: There are no rolling bearings and bolts in grinding cavity, so problems caused by bolts shedding or wear of bearings and seal components will never happen. 4.High fineness of products The product fineness can reach D97=<5um. 5.Environment friendly The application of pulse dust collector and muffler reduce the pollution and noise of the dust, which has reached national environment protection standard. Production Line Configuration of Barite Grinder Machine: The whole set HGM10036 Barite Grinding Machineconsists of hammer crusher, bucket elevator, storage hopper, vibrating feeder, main unit, inverter classifier, cyclone collector, pulse deduster system, high pressure positive blower, air compressors and electrical control systems. Working Principle of Barite Grinder Machine: The main bearing and each dial are driven by electromotor of main machine through reducer, and numbers of rollers, which are rolling in the ring, are driven by dial through plunger. After crushed by hammer crusher, the big materials become small ones and are sent to storage hopper by elevator and further sent to the middle of first dial evenly by the electromagnetic vibrating feeder and feeding pipe. The materials will be driven to the edge of dial by centrifugal force and fall down into the ring, crushed and grinded by roller, and become powder after production of three rings. The high pressure centrifugal blower will inhale air from outside and blow the crushed materials to classifier. The rotating turbo in the powder concentrator will make the coarse materials return to the mill and reground, while the fineness will mix with the air and go into the cyclone and be discharged in the discharge bin, which is at the bottom of it. The air, which mixed with very little fineness, will be purified by impulse duster and discharged by blower and muffler. grinding mill
grinding machine
grinder machine
grinder mill
grinder machine
grinding mill
grinding machine
grinder mill
grinder machine
grinding mill
grinding machine
grinder mill
Shanghai Clirik Machinery Co., Ltd Address: No.19Fuqing Rd,Shanghai 201201,China http://saico.net http://www.clirik.com http://www.micro-mill.org http://www.grinding-equip.com http://www.mill-grinding.com http://www.shsaico.com http://www.fensuijiw.com http://www.weifenji.net http://www.clirik.net http://www.mill-equip.com http://www.clirik.cn

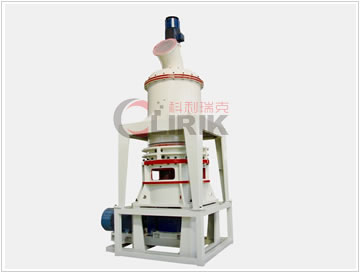

Calcium carbonate is a chemical compound with the chemical formula CaCO3. It is a common substance found in rock in all parts of the world, and is the main component of shells of marine organisms, snails, pearls, and eggshells. Calcium carbonate is the active ingredient in agricultural lime, and is usually the principal cause of hard water. It is commonly used medicinally as a calcium supplement or as an antacid, but excessive consumption can be hazardous As micro ground calcium carbonate powder plays an important role in many industries from agriculture to light and heavy industries, so the calcium carbonate grinding mill plant is necessary and useful. The Application of Calcium Carbonate Grinding Machine: HGM series Calcium Carbonate Grinding Machine is mainly applied to non-inflammable, non-explosive and brittle materials with Mohs hardness under six. Such as calcite, chalk, limestone, dolomite, kaolin, gypsum, etc, totally more than 100 kinds of materials. Product fineness can be controlled between 325~2500 mesh. Performance and features Of Calcium Carbonate Grinding Machine: 1.High efficiency Under the same final size and power, the product capacity of ultrafine mill is twice than jet mill and agitation mill. 2.Longer lifetime of spare parts The roller and ring are made of special material, which improve the grinding efficiency a lot. For same material and final size, the lifetime of its wearing parts can reach to more than one year, about 2-5 times as long as that of vertical shaft impact crusher and turbo-mill. Especially when handling calcium carbonate and calcite, the lifetime can reach 2-5 years. 3.High safety and reliability: There are no rolling bearings and bolts in grinding cavity, so problems caused by bolts shedding or wear of bearings and seal components will never happen. 4.High fineness of products The product fineness can reach D97=<5um. 5.Environment friendly The application of pulse dust collector and muffler reduce the pollution and noise of the dust, which has reached national environment protection standard. Production Line Configuration of Calcium Carbonate Grinding Machine: The whole set HGM series Calcium Carbonate Grinding Machine consists of hammer crusher, bucket elevator, storage hopper, vibrating feeder, main unit, inverter classifier, cyclone collector, pulse deduster system, high pressure positive blower, air compressors and electrical control systems. Working Principle of Calcium Carbonate Grinding Machine: The main bearing and each dial are driven by electromotor of main machine through reducer, and numbers of rollers, which are rolling in the ring, are driven by dial through plunger. After crushed by hammer crusher, the big materials become small ones and are sent to storage hopper by elevator and further sent to the middle of first dial evenly by the electromagnetic vibrating feeder and feeding pipe. The materials will be driven to the edge of dial by centrifugal force and fall down into the ring, crushed and grinded by roller, and become powder after production of three rings. The high pressure centrifugal blower will inhale air from outside and blow the crushed materials to classifier. The rotating turbo in the powder concentrator will make the coarse materials return to the mill and reground, while the fineness will mix with the air and go into the cyclone and be discharged in the discharge bin, which is at the bottom of it. The air, which mixed with very little fineness, will be purified by impulse duster and discharged by blower and muffler. Technical data of Calcium Carbonate Grinding Machine: grinding mill
grinding machine
grinder machine
grinder mill
grinder machine
grinding mill
grinding machine
grinder mill
grinder machine
grinding mill
grinding machine
grinder mill
Shanghai Clirik Machinery Co., Ltd Address: No.19Fuqing Rd,Shanghai 201201,China http://saico.net http://www.clirik.com http://www.micro-mill.org http://www.grinding-equip.com http://www.mill-grinding.com http://www.shsaico.com http://www.fensuijiw.com http://www.weifenji.net http://www.clirik.net http://www.mill-equip.com http://www.clirik.cn

HGM series Bentonite Grinder Machine is mainly applied to non-inflammable, non-explosive and brittle materials with Mohs hardness under six. Such as calcite, chalk, limestone, dolomite, kaolin, gypsum, etc, totally more than 100 kinds of materials. Product fineness can be controlled between 325~2500 mesh. Performance and features Of Bentonite Grinder Machine: 1.High efficiency Under the same final size and power, the product capacity of ultrafine mill is twice than jet mill and agitation mill. 2.Longer lifetime of spare parts The roller and ring are made of special material, which improve the grinding efficiency a lot. For same material and final size, the lifetime of its wearing parts can reach to more than one year, about 2-5 times as long as that of vertical shaft impact crusher and turbo-mill. Especially when handling Bentonite and calcite, the lifetime can reach 2-5 years. 3.High safety and reliability: There are no rolling bearings and bolts in grinding cavity, so problems caused by bolts shedding or wear of bearings and seal components will never happen. 4.High fineness of products The product fineness can reach D97=<5um. 5.Environment friendly The application of pulse dust collector and muffler reduce the pollution and noise of the dust, which has reached national environment protection standard. Production Line Configuration of Bentonite Grinder Machine: The whole set HGM series Bentonite Grinder Machine consists of hammer crusher, bucket elevator, storage hopper, vibrating feeder, main unit, inverter classifier, cyclone collector, pulse deduster system, high pressure positive blower, air compressors and electrical control systems. Working Principle of Bentonite Grinder Machine: The main bearing and each dial are driven by electromotor of main machine through reducer, and numbers of rollers, which are rolling in the ring, are driven by dial through plunger. After crushed by hammer crusher, the big materials become small ones and are sent to storage hopper by elevator and further sent to the middle of first dial evenly by the electromagnetic vibrating feeder and feeding pipe. The materials will be driven to the edge of dial by centrifugal force and fall down into the ring, crushed and grinded by roller, and become powder after production of three rings. The high pressure centrifugal blower will inhale air from outside and blow the crushed materials to classifier. The rotating turbo in the powder concentrator will make the coarse materials return to the mill and reground, while the fineness will mix with the air and go into the cyclone and be discharged in the discharge bin, which is at the bottom of it. The air, which mixed with very little fineness, will be purified by impulse duster and discharged by blower and muffler. Technical data of Bentonite Grinder Machine: Model HGM8021 HGM9024 HGM10027 HGM10036 mm(Ring Diameter) 800 900 1000 1000 Ring Number/ pcs 3 3 3 4 Roller Number/ pcs 21 24 27 36 Main Shaft Speed /r.p.min 230 200 180 180 Input Size/mm ≤20 ≤20 ≤20 ≤20 Finished Size/μm 5-47 5-47 5-47 5-47 Capacity t/h 0.4-4.5 0.4-5.5 0.6-6.5 0.7 -7.5 Outlet Size LxWxH/m 13.9x4x6.2 14.7x4.8x7.2 18x4.6x8.6 18x4.6x8.6 Power /KW 145 192 263 263 grinding mill
grinding machine
grinder machine
grinder mill
grinder machine
grinding mill
grinding machine
grinder mill
grinder machine
grinding mill
grinding machine
grinder mill
Shanghai Clirik Machinery Co., Ltd Address: No.19Fuqing Rd,Shanghai 201201,China http://saico.net http://www.clirik.com http://www.micro-mill.org http://www.grinding-equip.com http://www.mill-grinding.com http://www.shsaico.com http://www.fensuijiw.com http://www.weifenji.net http://www.clirik.net http://www.mill-equip.com http://www.clirik.cn

Quartz Specification Quartz is a physical and chemical properties of mineral resources are very stable, crystal belongs to trigonal system of oxide minerals, namely, low temperature quartz (a-quartz), quartz the most widely distributed group minerals in a mineral species. Include a broad high-temperature quartz crystal (b-quartz). Quartz block, also known as silica, is the production of quartz sand (also known as silica sand) of raw materials, quartz is the raw materials of refractories and firing ferrosilicon. Quartz Grinder Machine and Mill Process Line HGM series Quartz Grinder Machine is mainly applied to non-inflammable, non-explosive and brittle materials with Mohs hardness under six. Such as calcite, chalk, limestone, dolomite, kaolin, gypsum, etc, totally more than 100 kinds of materials. Product fineness can be controlled between 325~2500 mesh. Performance and features Of Quartz Grinder Machine: 1.High efficiency Under the same final size and power, the product capacity of ultrafine mill is twice than jet mill and agitation mill. 2.Longer lifetime of spare parts The roller and ring are made of special material, which improve the grinding efficiency a lot. For same material and final size, the lifetime of its wearing parts can reach to more than one year, about 2-5 times as long as that of vertical shaft impact crusher and turbo-mill. Especially when handling Bentonite and calcite, the lifetime can reach 2-5 years. 3.High safety and reliability: There are no rolling bearings and bolts in grinding cavity, so problems caused by bolts shedding or wear of bearings and seal components will never happen. 4.High fineness of products The product fineness can reach D97=<5um. 5.Environment friendly The application of pulse dust collector and muffler reduce the pollution and noise of the dust, which has reached national environment protection standard. Production Line Configuration of Quartz Grinder Machine: The whole set HGM series Quartz Grinder Machine consists of hammer crusher, bucket elevator, storage hopper, vibrating feeder, main unit, inverter classifier, cyclone collector, pulse deduster system, high pressure positive blower, air compressors and electrical control systems. Working Principle of Quartz Grinder Machine: The main bearing and each dial are driven by electromotor of main machine through reducer, and numbers of rollers, which are rolling in the ring, are driven by dial through plunger. After crushed by hammer crusher, the big materials become small ones and are sent to storage hopper by elevator and further sent to the middle of first dial evenly by the electromagnetic vibrating feeder and feeding pipe. The materials will be driven to the edge of dial by centrifugal force and fall down into the ring, crushed and grinded by roller, and become powder after production of three rings. The high pressure centrifugal blower will inhale air from outside and blow the crushed materials to classifier. The rotating turbo in the powder concentrator will make the coarse materials return to the mill and reground, while the fineness will mix with the air and go into the cyclone and be discharged in the discharge bin, which is at the bottom of it. The air, which mixed with very little fineness, will be purified by impulse duster and discharged by blower and muffler. grinding mill
