Acmas Technocracy Private Limited
|
Laboratory Machine For Textile
|
|
|
|
|

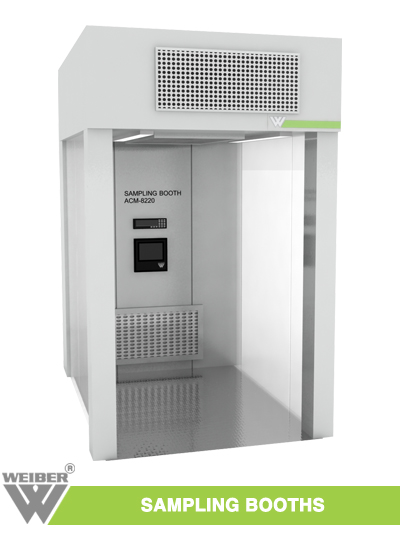

Weiber powder containment dispensing/sampling booths are ideal to control the hazardous emissions of powder dust during powder dispensing/Sampling processes. The Pharma sampling booth system regulates the powder contaminants, thereby providing safe and risk-free environment for the operator and others. It is provided with a HEPA filter, which prevents the airborne dusts by down draught technique. Weiber is counted amidst the leading manufacturers/ distributors/suppliers/developers /exporters/engineers /service providers of custom made Sampling Booths in India.
The Sampling booths also protect the product as per ISO classification 5 from the contaminations in the ambient conditions thus creating clean operator safe processing zone minimizing cross contamination risk from other products/processes. Weiber offers unmatched prices, specifications and usages of sampling Booths for various research laboratories.
The Portable Pharmaceutical Sampling Booths are designed for filling, refilling, weighing and sampling of raw materials and compounds.
Construction Details
The tailor made powder sampling booths are available in Stainless Steel, GI Powder coated with epoxy PU coated finish. The Clean Room Sampling Booths are of international quality and performance standard offering efficient services.
Salient Features
Lockable castors on all legs
Easy to transport
Ready to sample within 2 minutes of start up
Over 600 air changes per hour
fully mobile, easy to assemble
Easy Installation & Portable
Applications
Pharma industry
Healthcare industry
Vaccine manufacturers
Food processing industry
Biotechnology
Technical Specifications
Filters
Aluminum framed HEPA filters with a minimum efficiency of 99.99% at 0.3 micron.
Air flow
90 FPM (0.45 m/s) 10 FPM (0.05 m/s)
Noise level
65 /5 DB
Motor / Blower assembly
Direct drive continuous duty 1/4HP with sealed bearings.
Pre filter
Washable type pleated pre filter with 90% efficiency.
Particle Containment
Particle Containment (OEL < 100 µg/m3)
Finish
Stainless steel, satin non glare or painted
|
|
![]() |
Acmas Technocracy Private Limited
|
Laboratory Machine For Textile
|
|
|
|
|

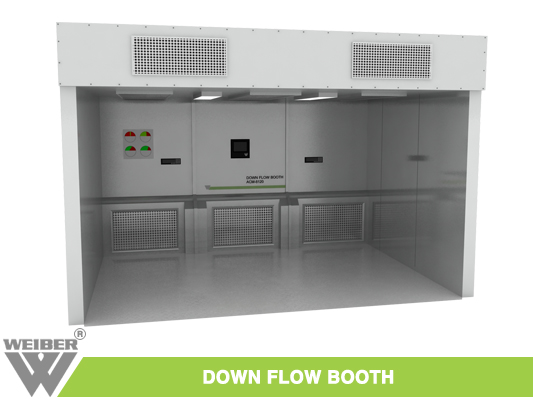

Weiber offer easy solutions to control your dust and vapor in the form of down flow booth. Our equipment is designed to protect workers from breathing unsafe levels of particulates during material handling operations. Air flows from the booth ceiling, down across the operator’s head, and into a grille below the operator’s waist level, thereby drawing particulates away from the operator’s breathing zone. Weiber designs both standard and customized down flow booth for clean room application. The containment booths are economical and offer unmatched usages and specifications.
Weiber tailor made down flow containment booths are engineered to provide high levels of personnel protection, with the flexibility to enable a multitude of process operations to be carried out. Weiber is a leading manufacturers / distributors/suppliers/developers/exporters/engineers/service providers of Down flow units in India.
Construction Details-Weiber dispensing units are constructed from stainless steel in fully ducted designs and utilize dedicated air supply and exhaust fan sets, both are normally fitted with input and exhaust filtration systems to HEPA standards (99.99% filtration performance).
Salient Features
Powder handling or tipping requirements
Electrical wiring to client standards
Digital thermo regulator
Physical Barrier by antistatic PVC curtains
Materials of construction to suit process
Easy installation
Low price
Applications
Pharmaceutical
Chemical
Agri-chemical companies
Dispensing of raw materials
Chemical industry
Technical Specifications
Filters
Aluminum framed HEPA filters with a minimum efficiency of 99.99% at 0.3 micron.
Air flow
90 FPM (0.45 m/s) / 10 FPM (0.05 m/s)
Noise level
65 / 5 DB
Motor / Blower assembly
Direct drive continuous duty ¼ HP with sealed bearings.
Pre filter
Washable type pleated pre filter with 90% efficiency.
Particle Containment
Particle Containment (OEL < 100 µg/m3)
Finish
Stainless steel, satin non glare or painted
|
|
![]() |
Acmas Technocracy Private Limited
|
Laboratory Machine For Textile
|
|
|
|
|

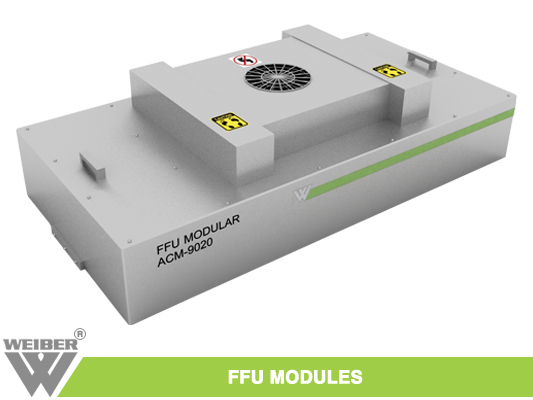

Weiber FFU Modules are designed to provide unidirectional filtered and clean airflow over a clean room space. These specially designed units integrate a low noise high efficiency fan unit with HEPA/ULPA filter modules. Our FFU series adopts the latest domestic technology and provide high quality fresh air for different size and cleanliness level clean room. The HVAC fan filter unit is widely used in clean room and clean bench and clean production line laminar flow covers. The clean room Clean room Fan filter unit can be installed in wall (FFU) or ceiling (AVF).
Weiber is a leading manufacturer and distributor of customized non standard fan filter units in India. Price fan filter units are recommended for use in all types of cleanroom environments – semiconductor and microelectronics manufacturing facilities, as well as pharmaceutical and medical labs.
Salient Features
Can be integrated with larger sophisticated systems with PLC
No installer configurations are required
Adjustable Speed to suit individual specific requirements.
One Step – Set-Back capability
Low Noise
High energy efficiency
Low operating temperature
Applications
Semiconductor and microelectronics manufacturing facilities
Pharmaceuticals
Medical labs
Agricultural sector
Biotechnology
Technical Specifications
Dimensions
As per Matrix
Housing
Plenum is cold rolled steel finished with white powder baked enamel.
Compatible with
1-1/2” grid on 24” x 48” centers or 2” grid on 24.5” x 48.5” centers.
HEPA Filter: DOP test
HEPA filter is 99.99% efficient on removal of particles 0.3 by
Pre filter
20” x 20” x 1” – UL classified for Class 1; rated 80% efficient on linty dusts
Blower
Forward curved centrifugal type factory balanced.
Mount
Entire motor/blower assembly is removable from top of housing for service.
Motor
1/4 HP Direct drive, energy efficient. Permanent split capacitor type.
Electrical
3-speed motor switch (lo-med-high) and separate on/off switch (2x4 models).
Noise Level
50 dBA
Weight
As per the matrix
Support
1/4” eyebolts are installed in all (4) corners for hang wire support
|
|
![]() |
Acmas Technocracy Private Limited
|
Laboratory Machine For Textile
|
|
|
|
|

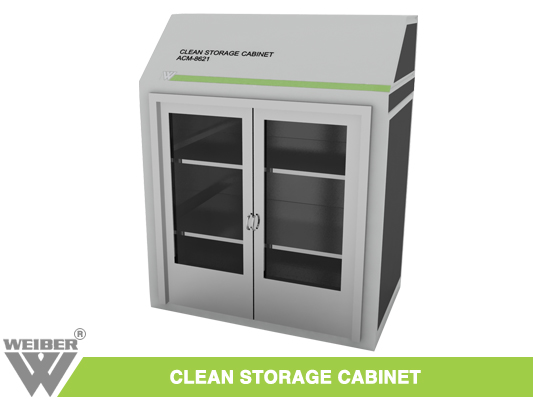

Weiber specially designed storage cabinets provide you with a clean space to store tools, instruments, process parts, wipes, gloves and other clean room tools and materials. Weiber provides a comprehensive range of ISO 3 clean storage cabinet for the cleanroom and laboratory.
A continuous downstream of clean HEPA filtered air that blocks the inrush of contaminants into the storage area and helps to keep garments and other materials particle-free. A strategically placed air outlet located at the bottom of the storage area discharges air along with any contaminants that may have entered the cabinet. All blower/filter components including fibre glass pre-filters are easily accessible through a swing-up front panel. Weiber is a leading manufacturers/distributors/suppliers /developers/exporters/engineers/service providers of stainless steel powder coated Clean Room Storage Cabinets in India. The HEPA Filter Clean storage cabinet offer unmatched prices, specifications and usage. Weiber manufactures both standard and customized clean room storage cabinet.
Salient Features
Adjustable Wind Speed
maximum chemical resistance and enhanced durability
Complies to AS1386.5, EN12469, EN-1822, and EN61010-1 Standards
Mini pleated Special HEPA Filtration modules used.
HEPA Filter Efficiency 99.99% down to 0.3 µ particle size.
filter module delivers up to 120 linear feet/minute of air
A continuous downstream that blocks the inrush of contaminants into the storage area and helps to keep clean room supplies particle-free.
Economical & easy installations
Applications
Pharmacy
Biological engineering
Pathology laboratories
Research and industrial facilities
Hospitals
Technical Specifications
Model No
ACM-57009 T (1)
Acm-57009 T (2)
Clean Grade
ISO Class 3
ISO Class 3
Average Wind Speed
0.25 – 0.50 m/s
0.25 – 0.50 m/s
Noise Level
≤ 55 db
≤ 55 db
Filter
HEPA filter
HEPA filter
Filter Size
650mm x 700m x 69mm x 2 No s
650mm x 700m x 69mm x 3 No s
Filter efficiency
99.99% at 0.3 microns cold / hot DOP
99.99% at 0.3 microns cold / hot DOP
Vibration levels
≤ 5 µ m (x-y-z)
≤ 5 µ m (x-y-z)
Working Dimensions
1300m x700mmx1850mm (W x D x H)
1950mmx700mmx1950mm (W x D x H)
Over All Dimensions
1425mmx810mmx2600mm (W x D x H)
2150mmx810mmx2700mm (W x D x H)
Power Supply
220-230 Volts 50-60 Hz AC supply
220-230 Volts 50-60 Hz AC supply
Maximum Power Consumption
850 Watts
1250 Watts
|
|
![]() |
Acmas Technocracy Private Limited
|
Laboratory Machine For Textile
|
|
|
|
|

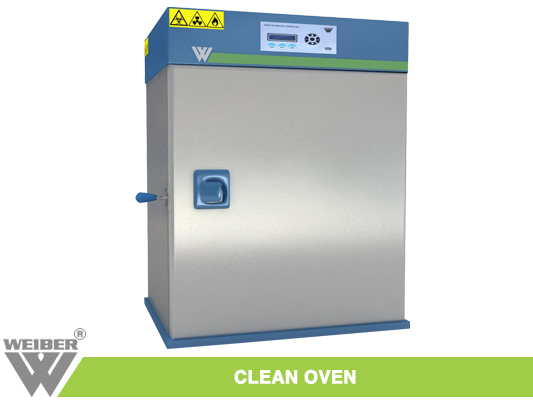

Weiber offers a wide range of clean ovens for general purpose applications, including curing, drying, aging and bake-out. The rugged construction, efficient heating and long lasting performance make these pharmaceutical clean room ovens one of the most trusted clean room products available on the market. Weiber manufactures microprocessor controlled Class 100 Clean Oven to meet the strict requirements of clean process applications. Weiber offers unmatched prices, specifications, usage and easy installation of its Clean room convection oven.
Our custom made clean process ovens are designed to meet the demands of production and large scale R&D environments. However we provide a number of customized options to meet your specific needs. These GMP hot air ovens feature an exclusive airflow pattern that assures unsurpassed temperature control and uniformity and quick recovery times. A stainless steel blower, driven by a constant speed induction motor, circulates air throughout the chamber. We are counted amidst the prominent manufacturers/ developers, distributors/suppliers, engineers/service providers and exporters of supreme quality Clean Oven in India.
Salient Features
These equipments have 21 CFR Compliant Data Logging facility
Provision for Validation Port
Computer Connectivity through RS 232 C Interface.
System Integration with other laboratory equipment and master system through RS 485 interface.
Microprocessor PID Temperature Control up to 250°C Digital Set and Readout
Mechanical Forced Flow Convection
Applications
Electronic Applications
Fiber Optics
Industrial Processing
Pharmaceutical
Semiconductor
Technical Specifications :
Temperature Control
Temperature variation (time)
+/- °C
0.5
Temperature deviation (spatial)
+/- °C
0.5
Readability/ Set ability
°C
0.1
Temperature range ***
°C
50°C to 250°C (Standard)
Sensor thermocouple
Type K
Controller
Nano technology based ergonomic controller (Programmable)
Display
LCD
Adjustable alarm limits (visual and acoustic)
Inbuilt
Over And Low Temperature Safety thermostats
Inbuilt
Over And Low Voltage Safety thermostats
Inbuilt
Program
30 segment user defined programs
Automatic setting
Yes
Adjustable limits
Yes
Data logging
yes
Real Time Program
optional
Printer Report Program
Incorporated
Serial Data Port
RS232 C
Incorporated
2 x 24 characters LCD Display
Incorporated
Access Port 30 mm
Incorporated
Inspection window in door with cover
optional
Castors, lockable
Incorporated
Power consumption
Nominal power
W
Model Specific
Nominal voltage
V
220-230 Volts (Others Can be Customized)
Frequency
Hz
50/60
|
