Features: The cyclones produced by our company are mainly for solid-liquid continuous separation, concentration, and clarify and washing of suspension, with a compact structure, high accuracy separation and good sealing effect, widely used in potato, sweet potato, cassava, wheat, grain (rice) amyloid, other food and chemical industries. cyclone performance parameters: feed concentration of 4 (Be), the discharging concentration of 18-22 (Be), pressure 0.3-0.8 (Mpa), single-tube production capacity of 150-300Kg / h. Overview: TSJ-dewatering machine is our main products in recent years, the product is improved and designed on the company's foreign and domestic old products, replacing the centrifugal scraper centrifuge, now at the forefront in domestic sales, receiving very good effect from old and new customers. It is mainly applied to starch industry, other food and chemical industries. Features: The whole machine adopts horizontal structure, the main flow passage components of 304 stainless steel, using high-precision transmission parts, equipped with the SK-type vacuum pump produced by our company, rotating smooth at work, operation continuous and convenient, good sealing effect, high-efficiency dehydration, is an ideal starch dewatering equipment in the domestic starch industry.

1. Raw material receiving unit Material receiving unit is the first link of sweet potato starch processing. The primary purpose of this unit is the sweet potato preliminary removing impurity and the smooth storing in inside of raw material storage tank. Sweet potato is conveyed to the sweet potato yard after weighing by wagon balance, part of sweet potato is conveyed into the sweet potato storage hopper. The key of this unit is to remove sand and other impurities of sweet potato during the harvest, the sand stick to the sweet potato can drop through the vibrating screen. Preliminary de-sanding and removing impurity can relieve machine burden of de-stoning and cleaning unit. Attention must be taken that sweet potato should not be damaged in sweet potato purchase. Damaged sweet potato is easily decayed, and decayed sweet potato is vulnerable to infect around sweet potato. Bad sweet potato material has a big influence to starch quality. 2. Raw material conveying unit Sweet potatoes stored in the sweet potato hopper is conveyed to the large inclination-angle belt conveyor through conveying belt at the bottom of the hopper, and further is conveyed into cleaner to remove impurities by the large inclination-angle belt conveyor, removing sand and other impurities mixed in the materials at harvest time.

Hausen Starch Pump Main Advantages: 1.High efficiency 2.Long service life 3.Easy Maintenance 4. Stable performance 5.Low noise The starch pump digests international advanced technology and adopts auxiliary impeller dynamic seal. Together with the mechanical seal, it is especially applicable for transporting suspending liquid with some solid particles for food and food deep processing industry, such as starch, starch sugar, alcohol, citric acid, etc..... Starch pump, Starch slurry pump, China Starch pump, starch pump in China

Introduction Stainless steel : material quality minute: the 304,316, two kind of different material qualities, may decide according to the customer transportation medium different corrosion degree. machine seals : This product machine seals has two kind of designs: Built-in machine seals/outside installs equipment seals. 1. May transport has certain corrosive liquid 2.Structure is compact, does not have the vibration, the noise is low, movement reliable steady. 3. Uses the high quality mechanical seal, does not have divulging, the service life is long 4.Uses the open type impeller, can process the sewage and including the tiny sundry goods liquid, delivery capacity. 5.uses for the first time adds the irrigation, not needing before each time starting, to add the irrigation, time-saving facilitates 6.Use of explosion-proof motor, to ensure safe operation Alcohol pump, self-priming pump, explosion-proof pump

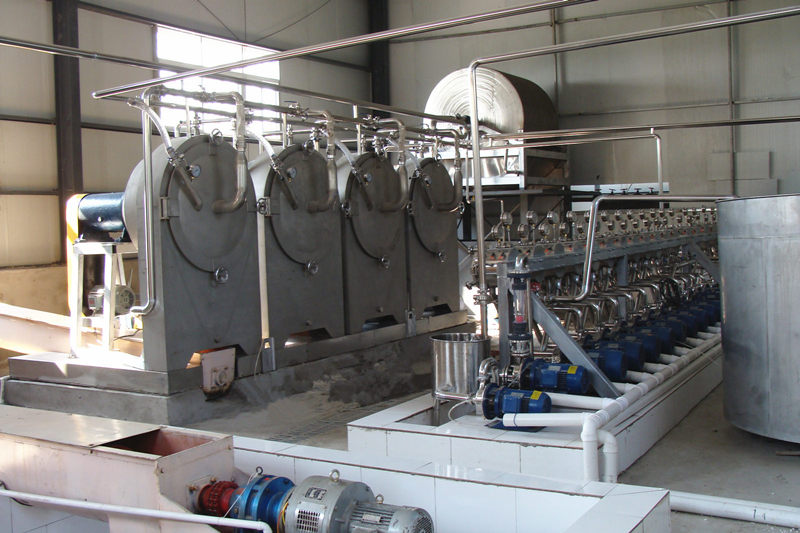

High quality cassava starch machine instructions To cassava the material is sent to cage washer through scrape board to get the result of decontamination, cleaning and peel. Then through a paddle-washing slot, material is sent to crash section. We adopt the rasper to crash materials. Compared with traditional crasher, it has the large capacity, high starch dissociation degree features, which are essential to get high starch recovery.The crashed material is sent to centrifugal sieve through pump to extract starch and separate potato residues. Centrifugal sieve group are 4 or 5 stages, the front stages is to extract starch and the last stage is to dewater the potato residue. The whole stage adopts countercurrent washing to get the best results and saving water. Cassava residue is sent out of workshop after separation of residue slurry for further processing. Starch slurry reaches starch hydrocyclone group to refine starch. 21 stages hydrocyclone is usually adopted for cassava starch and is divided into three functional areas, which are starch washing, recycling and concentration area. The concentration of starch discharged from the last stage can reach 23Be. And protein is less than 0.1%. Dewatering section follows the refining section. Compared with other starch, it is more suitable for cassava starch to dewater by vacuum filter. Moisture content of dewatered starch is 38~40%. Wet starch is sent to drying system through belt conveyer. Starch drying adopts one grade negative pressure air-drying system. We add some automatic controlling equipment to the system to control the volume of hot intaking gas and feeding through measuring the temperature of exhausting gas. Thus the stable temperature and moderate feeding volume can be assured to guarantee starch quality. Dried starch reaches sieving system. High efficiency cooling starch sifter is used to cool starch and get the best starch viscosity. Sieved starch now reaches to packing section. We adopt valve automatic packer that is controlled by computer. It has features of high accuracy and the error is less than 3‰. Because of its full-seal operation, there is no powder dust in packing shop. It is the desired packing equipment for starch plant.
