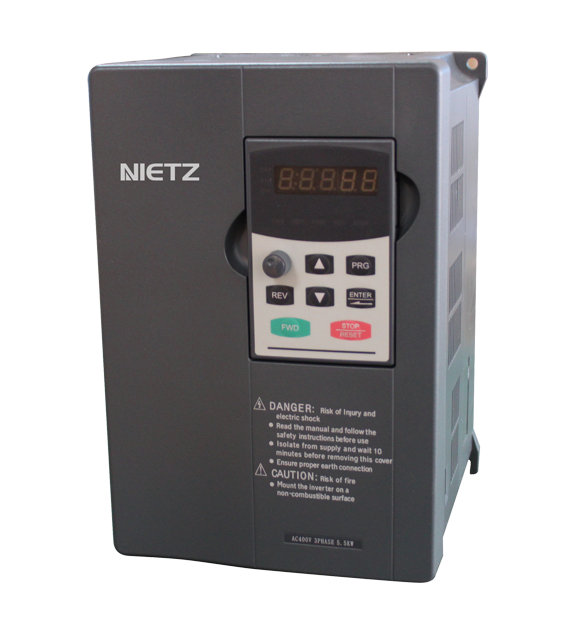

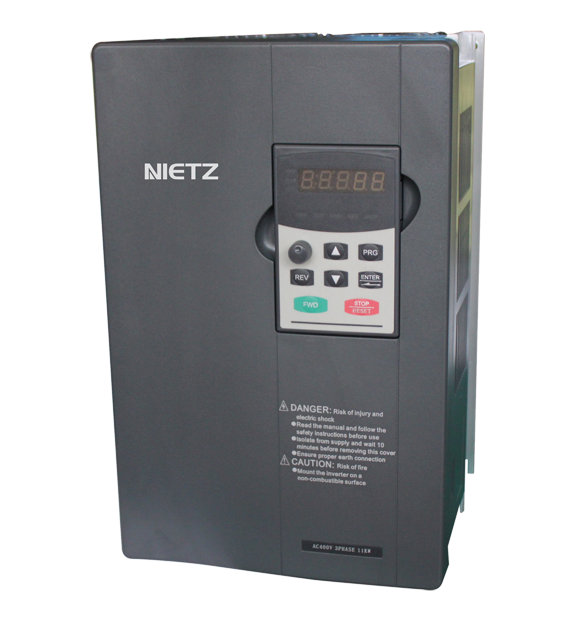

Series NZP for pumps and fans 3 AC 380V±15% 5.5 – 630 kW ПEasy maintenance and operation, a considerable flexibility in параметрировании.Dense installation of devices through a high-efficient cooling system. Effectively applied on the field of fan and pump loads. Technical Features Series NZP Model NZP Input Rated voltage.Frequency 3 AC 380V. 50-60 Hz; Voltage Range 380V: 330V～440V; Output Voltage Range 380V: 0～380V; Frequency Range 0.10～400.0Hz Control method V/F control, Space vector control Indication Operating status/Alam definition/interactive guidance: eg,frequency setting,the output frequency/current.DC bus voltage,the temperature and so on. Control Specifications Output Frequency Range 0.10 Hz～400.00 Hz Frequency Setting Resolution Digital input:0.01 Hz,analog input;01% of maximum output frequency Output Frequency Accuracy 0.01 Hz Control V/F Setting V/F curve to satisfy various load requirements. Torque Control Auto increase: auto raise torque by loading condition;Manual increase: enable to set 0.0~20.0% of raising torque. Multifunctional input Terminal Eight multi-fuction input terminals,realizing functions including fifteen section speed control, program running, four-section acceleration/deceleration speed swith, UP/DOWN function and emergency stop and other functions. Multifunctional Output Terminal 3 multi-fuction output terminals for displaying of running,zerospeed,counter,external abnormity,program operation and other information and warmings. Acceleration/deceleration Time Setting 0~6000s acctleration/deceleration time can be set individually Other Functions PID Control Built-in PID control RS485 Standard RS485 communication function (MODBUS) Frequency Setting Analog input:0~10V,0~20mA can be selected;Digital input:input using the setting dial of the operation panel or RS485 or UP/DOWN Multi-speed Eight multifunction input terminals,15 section speed can be set Automatic voltage regulation Automatic voltage regulation function can be selected Counter Built-in 2 group of counters Protection/Warning Function Overload Variable torque 120% 60 second Over Voltage Over voltage protection can be set Under Voltage Under voltage protection can be set. Other Protections Onreheat,output shortcircuit,over current,and parameter lock and so on. Enironment Ambient Temperature –10℃~40℃(non-freezing) Ambient Humidty Max 95% (non-condensing) Vibration Lower than 1000м. Vibration Max. 0.5g Installation Охлаждение Обязательное охлаждение Protective Stucture IP 20 Mode Below 200 kW : Wall Mounted Above 220kW: in Cabinet Dimension Drives Series NZP Model Output power (kW) Drive capacity Output current (А) Overload capacity Applicable Motor (kW) A B C D E F KVA (60с)(А) NZP0075T4B 7.5 14 17.5 21 7.5 168 185 248 260 170 6 NZP0110T4B 11 19 24 28.8 11 195 210 310 330 190 6 NZP0150T4B 15 26 33 36 15 NZP0180T4B 18.5 32 40 48 18.5 NZP0220T4B 22 37 47 56.4 22 147 250 460 480 240 9 NZP0300T4B 30 52 65 78 30 NZP0370T4B 37 64 80 96 37 197 300 482 500 260 9 NZP0450T4B 45 72 90 108 45 NZP0550T4B 55 84 110 132 55 240 360 620 650 280 9 NZP0750T4B 75 115 152 182.4 75 NZP0900T4B 90 135 176 211.2 90 260 400 775 800 330 11 NZP1100T4B 110 160 210 252 110 NZP1320T4B) 132 193 255 306 132 360 552 885 930 400 13 NZP1600T4B(G) 160 230 305 366 160 NZP1850T4B 185 260 340 408 185 NZP2000T4B 200 290 380 456 200 360 552 965 1000 410 13 NZP2200T4B 220 320 425 510 220 NZP2500T4G 250 365 480 576 250 400 600 370 1850 600 15 NZP2800T4G 280 427 560 672 280 NZP3000T4G 300 450 580 696 300 470 700 355 1850 600 16 NZP3150T4G 315 460 605 786.5 315 NZP3500T4G 345 516 680 884 345 NZP3750T4G 375 562 740 962 375 NZP4000T4G 400 600 790 1027 400 670 900 355 2030 600 16 NZP4150T4G 415 632 820 1066 415 NZP4500T4G 450 638 840 1260 450 NZP4750T4G 475 714 940 1222 475 Note: B (G) ---- overhead or closet (hanging leg + 120 mm) Wiring Diagram Drives Series NZP (1) Models below 15 kW (2) Models above 18,5 kW Applicable Fields Drives Series NZP  Ventilation systems and pumps;  Exhaust Fans;System sanitation;  Cold and hot water supply heat  Mixers, extruders, shock-punching machine and other equipment;  Uterine machines, washing machines Mills, compressors, knitting machines, food equipment, etc.

Special Drives for Multi-pumps Water Supply 3 AC 380V±15% 5,5~350 kW Series NZC is adopts the advanced control theory to adjust speed and switchover of pumps automatically according to the pressure of pipe net,so as to make the pressure to be constant.Max. connects up to 4 water pump. Technical Features Series NZC Model NZC Input Rated voltage,Frequency 3 AC 380V. 50-60 Hz; Voltage Range 380V: 330V～440V; Output Voltage Range 380 V: 0～380 V; Frequency Range 0.10～400.0 Hz Control method V/F control,Space verctor control Indication Operating status/Alarm definiton/interactive guidance;eg,frequency setting,the output frequecy/current,DC bus voltage,the temperature and so on. Control Specification Output Frequency Range 0.10～400.00 Hz. Frequency Setting Resolution Digital input: 0.01 Hz. Analog input:0,1% of maximum output frequency Output Frequency Accuracy 0.01 Hz. V/F Control Setting V/F curve to satisfy various load requirements Torque Control Auto increase:auto riase torque by loading condition;Manual increase:enable to set 0.0~20% of raising torque Multifuncional Input Terminal 8 multi-function input terminals,realizing fuctions including fifteen section speed control,program running, four-section acceleration/deceleration speed switch,UP/DOWN function and emergency stop and other functions Multifuntional Output Terminal 3 multi-function output terminals for displaying of running,zerospeed,counter,external abnormity,program operation and other infornation and warnings 8 пунктов для водоснабжения,1 ПЧ совершает подключение 4 насосов, Acceleration/deceleration Time Setting 0~6000 s acceleration/deceleration time can be set individually Other functions PID Control Built-in PID control RS485 Standard RS485 communication function (MODBUS) Frequency Setting Analog input 0～10V, 0～20мА, can be selected; Digital input: input using the setting dial of the operation panel or RS 485 or UP/DOWN Multi-speed Eight multifunction input terminals,15 section speed can be set Automatic voltage regulation Automatic voltage regulation function can be selected Counter Built-in 2 group of counters Overload 150%,60 second(Constant torque);120%,60second (variable torque) Over Voltage Over voltage protection can be set Under Voltage Under voltage protection can be set Other Protections Overheat,output shortcircuit,over current,and parameter lock and so on. Environment Ambient Temperature –10℃~40℃(non-freezing) Ambient Humidity Max. 95% (non-condensing) Altitude Lower than 1000м. Vibration Max. 0.5 g Structure Cooling Mode Forced air cooling Protective Structure IP 20 Mode Below 220 kW: Wall Mounted Above 220 kW: in Cabinet Dimension Drives Series NZC Model Rated output power(kW) Drive capacity KVA Output current(A) Overload capacity(60s)(A) Applicable motor kW A B C D E F NZC0055T4B 5.5 10 12.5 15 5.5 160 175 244 260 170 6 NZC0075T4B 7.5 14 17.5 21 7.5 160 175 244 260 170 6 NZC0110T4B 11 19 24 28.8 11 195 210 310 330 190 6 NZC0150T4B 15 26 33 39.6 15 NZC0180T4B 18.5 32 40 48 18.5 NZC0220T4B 22 37 47 56.4 22 147 250 460 480 240 9 NZC0300T4B 30 52 65 78 30 NZC0370T4B 37 64 80 96 37 197 300 482 500 260 9 NZC0450T4B 45 72 90 108 45 NZC0550T4B 55 84 110 132 55 240 360 620 650 280 9 NZC0750T4B 75 115 152 182.4 75 NZC0900T4B 90 135 176 264 90 260 400 775 800 330 11 NZC1100T4B 110 160 210 252 110 NZC1320T4B 132 193 255 306 132 360 552 885 930 400 13 NZC1600T4B 160 230 305 366 160 NZC1850T4B 185 260 340 408 185 NZC2000T4B 200 290 380 456 200 360 552 965 1000 410 13 NZC2200T4B) 220 320 425 510 220 360 552 965 1000 410 13 NZC2500T4B 250 365 480 576 250 400 600 370 1850 600 15 NZC2800T4B 280 427 560 672 280 400 600 370 1850 600 15 *Note: B(G)---- Wall Mounted or cabinet (hanging leg + 120 mm) Applicable Fields Drives Series NZC:  Contant pressure water-supply for housing estate;;  Centralized water or heat supply;  Process water and recycling water of industrial and mining enterprise and the industrial boiler water-supply system,etc;  Water processing,feedwater and pressurize and constant pressure oil transmission,etc

NZV series inverter adopts DSP control system which supplies sensorless vector control and V/F control.Market po sitioning focuses on the OEM clients at middle and low end market. The performance of NZV siries is more perfect and stable. It is widely applied in Pump&Fan,some applications with high speed control accuracy,rapid torque response a nd hight performance at low frequency. Technical Features Series NZV Model NZV Input Rated voltage,Frequency 3 AC 380V. 47-63 Hz; 1/3 AC 220V 47-63 Hz.; Voltage Range трех фаза 380В ±15%; одна фаза 220В ±15% Output Output Voltage Range 1～rated input voltage Output Frequency Range 0～600.0 Hz Control method V/F control,Sensorless Voctor control Technic Overload Capacity 150% rated current in 60 s.; 180% rated current in 10 s Start Torque 0.5 Hz/150% with vector senserless control Aljustment Ratio 1:100 with vector senerless control Speed Control Accuracy 0.5~15 KHz Termianl Programmable Digital input 4 terminals Programmable Analog input FIV:0~10V,FIC:0~10V or 0~20mA Coupling Output 1 Set Relay Output 1 Set Analog Output 1 Set-option of 4~20mA/0~10V Function Frequency Setting Digital,Analog,Series communication,Multi-speed,PID,etc. PID Function Built in Multi-speed Function 8 speeds Adjustable Frequency Stable fraquency Off Power Keep running in power off instantly Jog Key Function Multi-function setting by Users Voltage Adjustment Auto maintain output voltage stable in changing of power Failure Protection 25 types of failure protection:over current,over voltage,low voltage,over heat,short phase,over load,etc Dimension Drives Series NZV Model Input voltage Rated output power(kW) Rated input current(A) Rated output current(A) Applicable motor(kW) A B C D E F NZV 0004T2B 1 AC 220V±15% 0.4 5.4 2.3 0.4 117 125 162 170 140 5 NZV 0007T2B 0.8 8.2 4.5 0.8 NZV 0015T2B 1.5 14.2 7.0 1.5 NZV 0022T2B 2.2 23.0 10.0 2.2 NZV 0037T2B 3.7 35.0 16.0 3.7 105 120 208 225 149 5 NZV 0007T4B 3 AC 380V±15% 0.8 3.4 2.5 0.8 117 125 162 170 140 5 NZV 0015T4B 1.5 5.0 3.7 1.5 NZV 0022T4B 2.2 5.8 5.0 2.2 NZV 0037T4B 3.7 10.0 8.6 3.7 105 120 208 225 149 5 NZV 0055T4B 5.5 16.0 12.5 5.5 168 185 248 260 170 7 NZV 0075T4B 7.5 20.0 17.5 7.5 NZV 0110T4B 11.0 26.0 24.0 11.0 195 210 310 30 190 6 NZV 0150T4B 15.0 35.0 33.0 15.0 NZV 0180T4B 18.0 38.0 40.0 18.5 147 250 460 480 240 9 NZV 0220T4B 22.0 46.0 47.0 22.0 NZV 0300T4B 30.0 62.0 65.0 30.0 197 300 482 500 260 9 NZV 0370T4B 37.0 76.0 80.0 37.0 NZV 0450T4B 45.0 90.0 90.0 45.0 240 360 620 650 280 9 NZV 0550T4B 55.0 105.0 110.0 55.0 NZV 0750T4B 75.0 140.0 152.0 75.0 260 400 775 800 330 11 NZV 0900T4B 90.0 160.0 176.0 90.0 NZV 1100T4B(G) 110.0 210.0 210.0 110.0 360 552 885 930 400 13 NZV 1320T4B(G) 132.0 240.0 255.0 132.0 NZV 1600T4B(G) 160.0 290.0 305.0 160.0 *Noet: B(G)----Wall hang or cabinet Applicable Fields Drives Series NZV: Paper machinery,Screw output device;Drawing Equipment;Dyeing plant; Dra  Injection plastic equipment,Air conditioning system,Machine tool equiment  Chemical fiber equipment,Boiler sytem,Water supply,oil transportation installation,etc

Detailed Product Description 2012 mica powder grinding mill Output size: 325-3000mesh 5-47micron Capacity:0.4-7.5T/H 2012 mica powder grinding mill 1. Application of Micronizer (HGM series ultrafine grinding mill): Micronizer (HGM series ultrafine grinding mill) is to produce particles between 325~2500 mesh /47-5micron. HGM Series Ultrafine Grinding Mill is mainly applied to non-inflammable, non-explosive and brittle materials with Mohs' scale of hardness under nine. 2. Features of HGM series Micronizer Avoid noise and pollution of the dust. One year's after-sales service warranty and tracking Free Initial installation at home and abroad. High safety and reliability 3. Production Line Configuration of micronizer (HGM series ultrafine grinding mill) The whole set micronizer (HGM Ultrafine grinding Mill) consists of 1). Hammer crusher, bucket elevator, storage hopper, vibrating feeder, 2). Main unit, inverter classifier, cyclone collector, pulse deduster system, 3). High pressure positive blower, air compressors and electrical control systems. 4. How does micronizer (HGM series ultrafine grinding mill) work? 1) After crushed by hammer crusher, the large materials become smaller pieces and are sent to the grinding mill. 2) When the ultrafine grinding mill is at work, the granulated materials are crushed and grinded by the rollers into particles below 47micron. 3) The high-pressure air blower constantly inhales air within the grinding mill. 4) Along with the high speed airflow, micronized materials are brought to the classifier. 5) The qualified particles are screened and driven into the cyclone powder collector, finally exit from the discharging valve at the bottom; 6) A small proportion of the fine powders, with airflow, moves to the dust cleaner. Filtered clean air will be emitted from the air outlet of muffler in the end. Should you have any questions, please do not hesitate to contact us: Contact person: Cherry. Zhao Tel: 0086-21-20236178 E-mail: [email protected];[email protected] Address: No.19 Fuqing Road, Pudong New Area, Shanghai 201201, China. Homepage: http://www.clirik.com http://www.mill-grinding.com http://www.grinding-mill.in

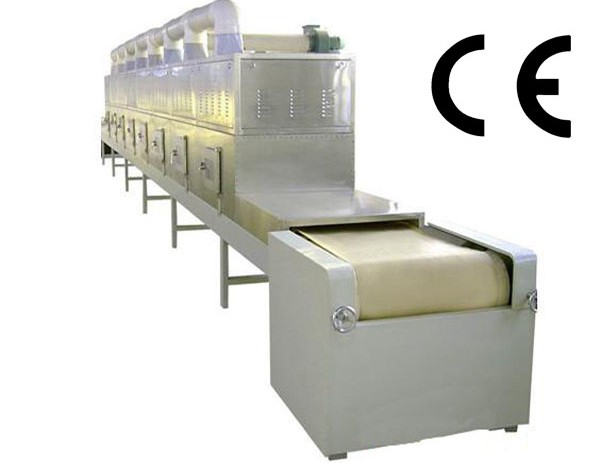

Industrial Continuous Conveyor Belt Type Microwave Oven Features: 1.Application: This machine fits for drying and sterilizing powder ,granular, sheet-like or gel-like food ,and additive, flavoring, medicine, raw material of herbal medicine, nutritional health products, agriculture & sideline products, non-fried(or oil-saving)instant noodles, noodles, rice powder noodles, soy products, beef jerky, preserved meat, dried fish ,tea, tobacco and so on; and for drying, peeling and baking almond, peach kernel, groundnut kernels, chestnut and so on; and for puffing of leisure food ,pachyrhizus chips, potato chips, dried shrimps, fish maw and so on; and for sterilizing and oral liquor, pickles, a variety of small packaging food ;and for drying beans; and for thawing the frozen fish ,poultry; and for drying and desulfurating and deoxidizing the metallurgical chemical products; and for drying printing and dyeing products, ceramics, glass, chemical fiber, cotton yarn, wood, leather, bamboo products, insulation materials, building materials, cork, alveolate cardboard, corrugated ,and so on. 2.Microwave heating features: 1, Fast heating. Microwave heating is completely different with traditional heating mode. It makes heating medium become heater, do not need heat transfer process. Although thermal conductivity is poor materials, also can achieve heating temperature in a very short time. 2,Save energy and efficiency. Because materials contain water absorb microwave easily and fever, so in addition to a small amount of transmission loss outside, almost no other loss, so high thermal efficiency, save energy. 3, Heating even. No matter how shape of each part of the body, microwave heating all can make the object and evenly infiltration and electromagnetic wave list to produce the heat. So heating good uniformity, won't appear the endogenous phenomenon focal. 4, Mouldproof, sterilization, fresh. Microwave heating has thermal and biological effect, can sterilize and mould proof in low temperature. Due to heating rapidly, the time is short, can maximum limit save material activity and the vitamin original colour and lustre and nutrition of food. 5, Craft is advanced, control easily. Microwave heating just have the basic conditions of water, electricity, as long as control power, can realize microwave heating or terminate immediately, use microwave equipment can process automation control of heating process and heating process specification. 6, Covers less area, safety and harmless. Because microwave can be controlled in made of metal heating indoor and wave, so microwave leak is few, no radiation hazards and harmful gases, do not produce the waste heat and dust pollution; Neither polluting food, also do not pollute the environment. 3.Microwave sterilization principles: A, Microwave sterilization is a physical sterilization method, it does not need to add chemical preservatives, can kill bacteria, mould and worm eggs, and virus harmful microbes, in the process of kill harmful organisms, will not residue toxicology or radioactive materials on food,safety and harmless,also won't change food color and nutrition. B,Under same temperature sterilization, sterilization time is short, do not need to preheating. Such as e. coli kill time about 30 S. In the same sterilization condition, the temperature of the deadly bacteria is lower, and the sterilization effect are remarkably. C, Can sterilize whole sterilization for material outside and inside at the same time, greatly shorten the sterilization cycle, and ensure the sterilization consistency. D, Due to simultaneity of each part of material’s sterilization, sterilization time is short, can avoid the long time heating and effect food good quality, especially for food that aren’t suitable for sterilizing in high temperature or a long heating time. For example: volatile sweet essien components of ginger powder, contains more moisture of fresh and tender jellyfish, etc. For not only keeping for color, smell, taste and same quality requirements, etc,but also for material the need sterilize, using microwave sterilization can achieve the best effect. E, Microwave sterilization can be divided into sterilizing before packaging and after packaging . Packaging container can't use metal material, need medium material, generally with plastic flexible packaging or glass, engineering plastic containers texture is advisable. To prevent from package expanding in microwave sterilization process, Equipment can be in work pressure in the warehouse by reverse pressure sterilization process to prevent the loss of package expanding.
