HuaHong refining equipment has reached its seventh generation series, standing out from its domestic and international counterparts. At present, HuaHong refining equipment have vertical refining equipment (upright type oil refining equipment) and horizontal rotating refining equipment (our best-seller) .you are welcome to visit our company! HuaHong vertical refining equipment (upright type oil refining equipment) has the following features: Advantages: 1, vertical refining equipment (upright type oil refining equipment) of small investment, quick effect, installation period is short, simple operation; 2, vertical refining equipment (upright type oil refining equipment) cover a small area, the oil quality is good; 3, vertical refining equipment (upright type oil refining equipment) automatic disslagging, short refining time, refining capacity:one furnace per day; 4, vertical refining equipment (upright type oil refining equipment) safe and energy-saving; 5, vertical refining equipment (upright type oil refining equipment) no water or air pollution, waste gas can be recycled, waste residues can be used as the raw materials of industry; 5, vertical refining equipment (upright type oil refining equipment) save manpower, each oven need only l2-3 people; 6, vertical refining equipment (upright type oil refining equipment) end product is mixed fuel oil, which can be directly used as fuel oil use or diesel gasor gas by second distillation process; 7, vertical refining equipment (upright type oil refining equipment) fuel for coal or wood; 8, vertical refining equipment (upright type oil refining equipment) oil refining raw materials can be directly put into furnace with pick and rinsing. Disadvantages: 1, vertical refining equipment (upright type oil refining equipment) belong to the low end of the equipment, suitable for common customers, small volume,low yields; 2, vertical refining equipment (upright type oil refining equipment) raw material includes soft dry plastic only, not for hard plastic , rubber and wet material; 3, vertical refining equipment (upright type oil refining equipment) incomplete dusting, relatively simple process; 4, vertical refining equipment (upright type oil refining equipment) installation requires a certain foundation. Equipment regular configuration: 1, vertical refining equipment (upright type oil refining equipment) reactor size: 2.6 m x6.6 m type: HH26-66; 2, vertical refining equipment (upright type oil refining equipment) special insulation cabinet (including insulation materials); 3, vertical refining equipment (upright type oil refining equipment) special energy saving stove (including bar, door, spray and spray gun fire pipe, valve etc); 4, vertical refining equipment (upright type oil refining equipment) pipeline and pipe bend, flange , gasket, etc.; 5, vertical refining equipment (upright type oil refining equipment) distribution motor 220 V 3. OKW one set, speed reducer one set, differential , blender one set, blower 22 OV 250 W ; 6, vertical refining equipment (upright type oil refining equipment) special cooling tank; 6, vertical refining equipment (upright type oil refining equipment) oil and gas separation cans, 8, vertical refining equipment (upright type oil refining equipment) water seal ; 9, vertical refining equipment (upright type oil refining equipment) gas one-way valve; 10, vertical refining equipment (upright type oil refining equipment) gas recovery special pipe. Optional equipment: 1, piston-like feeder (save feeding time,redece labor intensity); 2, the water film type desulfurization precipitator (to emit harmless waste gas ); 3, automatic slag discharge machine (environmental protection, safety, improve work efficiency); 4, carbon black molding machine (to produce carbon rods which serves as fuel material); 5, 5 tons storage tank (store a small amount of end product fuel oil); 6, oil pump (carry oil into storage tanks); 7, dust settling tank (increase oil quality and improve the production); 8, heavy oil recovery system (including heavy oil tank, oil pipe, oil pump ); 9, control desk (divided into PLC touch screen type and manual control type,;the customer shall choose on their own). Installation requirements: 1, water, electricity should be sufficient, the power supply for 380 V or 220 V, customer shall explain the local electricity condition in advance, so as to avoid unnecessary trouble; 2, raw material pre-prepared; 3, flat, open ground; 4, welders pre-prepared, workers ready during construction period. raw materials: 1, all kinds of waste soft plastic, such as plastic bags, disposable plastic cutlery, woven bag, canopy film, striped cloth, shading cloth; 2, fishing nets, construction site safety net, plastic wire skin, or shattered pieces of plastic Yield efficiency and production: 1, according to the content of plastic and purity of end product, oil yield around 20%-70% ; 2, one furnace/per day, the oil capacity differs according to raw materials . 3, 3.5 tons /per feeding.

HuaHong refining equipment has reached its seventh generation series, standing out from its domestic and international counterparts. At present, HuaHong refining equipment have vertical refining equipment (upright type oil refining equipment) and horizontal rotating refining equipment (our best-seller) .you are welcome to visit our company! HuaHong vertical refining equipment (upright type oil refining equipment) has the following features: Advantages: 1, vertical refining equipment (upright type oil refining equipment) of small investment, quick effect, installation period is short, simple operation; 2, vertical refining equipment (upright type oil refining equipment) cover a small area, the oil quality is good; 3, vertical refining equipment (upright type oil refining equipment) automatic disslagging, short refining time, refining capacity:one furnace per day; 4, vertical refining equipment (upright type oil refining equipment) safe and energy-saving; 5, vertical refining equipment (upright type oil refining equipment) no water or air pollution, waste gas can be recycled, waste residues can be used as the raw materials of industry; 5, vertical refining equipment (upright type oil refining equipment) save manpower, each oven need only l2-3 people; 6, vertical refining equipment (upright type oil refining equipment) end product is mixed fuel oil, which can be directly used as fuel oil use or diesel gasor gas by second distillation process; 7, vertical refining equipment (upright type oil refining equipment) fuel for coal or wood; 8, vertical refining equipment (upright type oil refining equipment) oil refining raw materials can be directly put into furnace with pick and rinsing. Disadvantages: 1, vertical refining equipment (upright type oil refining equipment) belong to the low end of the equipment, suitable for common customers, small volume,low yields; 2, vertical refining equipment (upright type oil refining equipment) raw material includes soft dry plastic only, not for hard plastic , rubber and wet material; 3, vertical refining equipment (upright type oil refining equipment) incomplete dusting, relatively simple process; 4, vertical refining equipment (upright type oil refining equipment) installation requires a certain foundation. Equipment regular configuration: 1, vertical refining equipment (upright type oil refining equipment) reactor size: 2.6 m x6.6 m type: HH26-66; 2, vertical refining equipment (upright type oil refining equipment) special insulation cabinet (including insulation materials); 3, vertical refining equipment (upright type oil refining equipment) special energy saving stove (including bar, door, spray and spray gun fire pipe, valve etc); 4, vertical refining equipment (upright type oil refining equipment) pipeline and pipe bend, flange , gasket, etc.; 5, vertical refining equipment (upright type oil refining equipment) distribution motor 220 V 3. OKW one set, speed reducer one set, differential , blender one set, blower 22 OV 250 W ; 6, vertical refining equipment (upright type oil refining equipment) special cooling tank; 6, vertical refining equipment (upright type oil refining equipment) oil and gas separation cans, 8, vertical refining equipment (upright type oil refining equipment) water seal ; 9, vertical refining equipment (upright type oil refining equipment) gas one-way valve; 10, vertical refining equipment (upright type oil refining equipment) gas recovery special pipe. Optional equipment: 1, piston-like feeder (save feeding time,redece labor intensity); 2, the water film type desulfurization precipitator (to emit harmless waste gas ); 3, automatic slag discharge machine (environmental protection, safety, improve work efficiency); 4, carbon black molding machine (to produce carbon rods which serves as fuel material); 5, 5 tons storage tank (store a small amount of end product fuel oil); 6, oil pump (carry oil into storage tanks); 7, dust settling tank (increase oil quality and improve the production); 8, heavy oil recovery system (including heavy oil tank, oil pipe, oil pump ); 9, control desk (divided into PLC touch screen type and manual control type,;the customer shall choose on their own). Installation requirements: 1, water, electricity should be sufficient, the power supply for 380 V or 220 V, customer shall explain the local electricity condition in advance, so as to avoid unnecessary trouble; 2, raw material pre-prepared; 3, flat, open ground; 4, welders pre-prepared, workers ready during construction period. raw materials: 1, all kinds of waste soft plastic, such as plastic bags, disposable plastic cutlery, woven bag, canopy film, striped cloth, shading cloth; 2, fishing nets, construction site safety net, plastic wire skin, or shattered pieces of plastic Yield efficiency and production: 1, according to the content of plastic and purity of end product, oil yield around 20%-70% ; 2, one furnace/per day, the oil capacity differs according to raw materials . 3, 3.5 tons /per feeding.

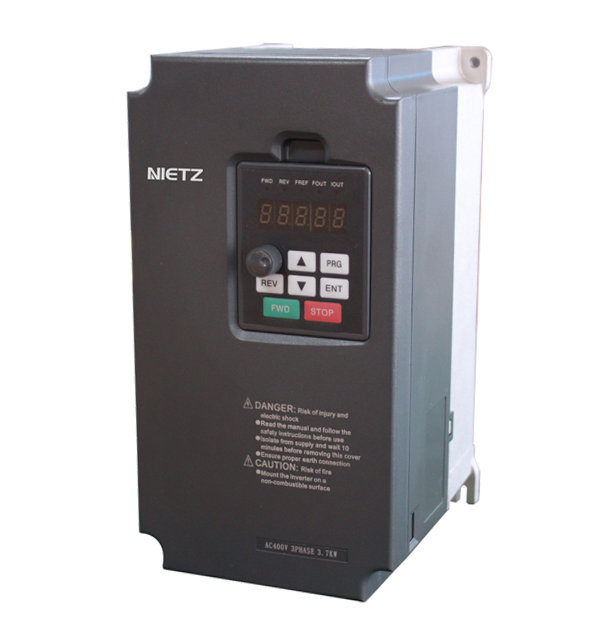

Frequency converters Nietz are economical, highly-effective, replacing Rexroth, Bosch Group, Mitsubishi, Omron, ABB, Danfoss, LG, Schneider, Vacon, Emotron, Delta, Vectron, Fuji, Toshiba, Hitachi, Siemens, etc. The inverters Nietz are extensively used in electricity, metallurgy, engineering, oil and gas complex and other industries

NZM Series Micro-General Purpose Drives 1/3AC 220V±15%;0.4~2.2 kW 3 AC 380V±15%;0.75~3.7 kW The appearance of mini-compact models, compact design, easy operation, while fully functional, performance is good. With V / F control mode, the user can load set V / F curve,and can be manually or automatically enhance torque. Offers a variety of frequency settings, can achieve acceleration and deceleration time was set, multi-speed, automatic voltage regulator and other applications, built-in RS485 communication, counter, PID control, PLCcontrol and other control functions. Provide overload protection, overvoltage protection,undervoltage protection, thermal protection, short circuit protection, overcurrent protection,lock and other protection parameters. Technical Features Series NZM Model NZM Input Rated Voltage,Frequency 1/3 AC 220V ,50/60 Hz; 3 AC 380V ,50/60 Hz Voltage Range 1 /3 AC 170~240 V ; 3 AC 330~440 V Output Voltage Range 220V: 0~220V Frequency Range 0.10~400.00 Hz Control Method V/F control,Space vector control. Indication Operating status/Alam definition/interactive guidance;eg.frequency setting,the output frequency/current,DC bus voltage,the temperature and so on. Control performance Output Frequency Range 0.1~400.0 Hz Frequency Setting Resolution Digital input:0.01 Hz,analog input:0.1% of maximum output frequency Output Frequency Accuracy 0,10 Hz V/F Control Setting V/F curve to satisfy various load requirements Torque Control Auto increase:auto raise torque by loading condition; Manual increase:enable to set 0.0~20.0% of raising torque. Multifunctional input Terminal Six multi-function input terminals,realizing functions including fifteen section speed control,program running,four0section acceleration/deceleration speed switch,UP/DOWN function and emergency stop and other functions Multifunctional Output Terminal 2 multi-function output terminals for displaying of running,zerospeed,counter,external abnormity,program operation and other information and warnigs. Acceleration/deceleration Time Setting 0~999,9s acceleration/deceleration time can be set individually Other Funcitions PID Control Built-in PID control RS485 Standard RS485 communication function (MODBUS) Frequency Setting Analog input:0~10V,0~20 mA can be selected; Digital input: input using the setting dial of the operation panel or RS485 or UP/DOWN. Multi-speed Six multifunction input terminals,15 section speed can be set Automatic voltage regulation Automatic voltage regulation function can be selected Counter Built-in 2 group of counters Protection/Warning Function Overload: 150%,60 second(constant torque) Over Voltage: Over voltage protection can be set. Under voltage protection can be set Overheat,output shortcircuil,over current,and parameter lock and so on. Environment Ambient Temperature:-10℃~40℃(non-freezing) Ambient Humidity:max 90%(non-condensing) Altitude:Lower than 1000 м. Vibration:max 0,5G Stucture Protective Structure : IP20 Cooling Mode: Forced air cooling Installation Wall Mounted Dimension Drives Series NZM Model Output power (kW) Output current (А) Overload capacity (60s)(А) Applicable Motor (kW) A B C Ф D E F NZM 1/3 AC 220 V 50/60 Hz NZM0004T2B 0.4 2.5 3.75 0.4 141.5 85 130.5 5 113 74 NZM0007T2B 0.75 5 7.5 0.75 141.5 85 130.5 5 113 74 NZM0015T2B 1.5 7 10.5 1.5 141.5 85 130.5 5 113 74 NZM0022T2B 2.2 7 16.5 2.2 141.5 85 130.5 5 113 74 NZM 3 AC 380 V 50/60 Hz NZM0007T4B 0.75 2.7 4.05 0.75 151 100 139.6 5.2 111.7 88.6 NZM0015T4B 1.5 4 6 1.5 151 100 139.6 5.2 111.7 88.6 NZM0022T4B 2.2 5 7.5 2.2 151 100 139.6 5.2 111.7 88.6 NZM0037T4B 3.7 8.6 12.9 3.7 151 100 139.6 5.2 111.7 88.6 Dimension control Panel Series NZM Wiring Diagram Drives Series NZM Applicable Fields Drives Series NZM  Food Machinety-Feeder mixer,bag filling machines,pastry forming machine;  Woodworking Machinery-Polishing machine,grinding machine,carving machine;  Packaging Machinery-Liquid filling machine,pharmaceutical filling machine  Stone cutting machine,Blowing machine,Water-pump-housetop/a fan to fill and exhaut gas  Pump for water supply  Conveyor belt-Small conveyor belt,common conveyor belt,Feeding equipment.  Rubber and plastic industry-Sealing machine,various types of small machine

NZA is basically in the fields of technological and energetic industry. According to the versatility and reliability in accordance with different requirements of the packaging machines, ventilations, ventilators, CNC machines, compressors, conveyors, etc. Technical Features Series NZA Model NZA Input Rated Voltage,Frequency 3 AC 380V. 50-60Hz; 1/3 AC 220AC 50-60Hz.; Voltage Range 380V: 330V～440V; 1 AC 220V: 0～220V Output Voltage Range 380V: 0～380V; 220V: 0～220V Frequency Range 0.10～400.0Hz Control Method V/F control,Space vector control. Indication Five discharges, Luminous indicator; appointed frequency, output frequency, output current /current, DC, voltage,the temperature; work’s control, and errors Control performance Output Frequency Range 0.10Hz～400.00Hz. Frequency Setting Resolution Digital input:0.01Hz. Analog input:0.1% of maximum output frequency Output Frequency Accuracy 0.01Hz. V/F Control Setting V/F curve to satisfy various load requirements Torque Control Auto increase:auto raise torque by loading condition; Manual increase:enable to set 0.0~20.0% of raising torque. Multifunctional input Terminal Eight multi-function input terminals,realizing functions including fifteen section speed control,program running,four0section acceleration/deceleration speed switch,UP/DOWN function and emergency stop and other functions Multifunctional Output Terminal 3 multi-function output terminals for displaying of running,zerospeed,counter,external abnormity,program operation and other information and warnigs. Acceleration/deceleration 0～600s acceleration/deceleration time can be set individually Time Setting Other Funcitions PID Control Built-in PID control RS485 Standard RS485 communication function (MODBUS) Frequency Setting Analog input: 0～10V, 0～20 mA can be selected; Digital input: input using the setting dial of the operation panel or RS485 or UP/DOWN. Speed Eight multifunction input terminals,15 section speed can be set Automatic voltage regulation Automatic voltage regulation function can be selected Counter Built-in 2 group of counters Protection/Warning Function Overload 150%,60 second(constant torque) Over Voltage Over voltage protection can be set. Under voltage Under voltage protection can be set Others Overheat,output shortcircuil,over current,and parameter lock and so on. Environment Ambient Temperature –10℃~40℃(non-freezing) Ambient Humidity Max 95%(non-condensing) Altitude Lower than 1000 м. Vibration Max 0,5G Structure Cooling Mode Forced air cooling Stucture IP 20 Method of installation Below 90 kW(including 90) on the wall 110-200 kW on th panel or in the office Above 220 kW in the office Model NZA Input Rated Voltage,Frequency 3 AC 380V. 50-60Hz; 1/3 AC 220AC 50-60Hz.; Voltage Range 380V: 330V～440V; 1 AC 220V: 0～220V Output Voltage Range 380V: 0～380V; 220V: 0～220V Frequency Range 0.10～400.0Hz Control Method V/F control,Space vector control. Indication Five discharges, Luminous indicator; appointed frequency, output frequency, output current /current, DC, voltage,the temperature; work’s control, and errors Control performance Output Frequency Range 0.10Hz～400.00Hz. Frequency Setting Resolution Digital input:0.01Hz. Analog input:0.1% of maximum output frequency Output Frequency Accuracy 0.01Hz. V/F Control Setting V/F curve to satisfy various load requirements Torque Control Auto increase:auto raise torque by loading condition; Manual increase:enable to set 0.0~20.0% of raising torque. Multifunctional input Terminal Eight multi-function input terminals,realizing functions including fifteen section speed control,program running,four0section acceleration/deceleration speed switch,UP/DOWN function and emergency stop and other functions Multifunctional Output Terminal 3 multi-function output terminals for displaying of running,zerospeed,counter,external abnormity,program operation and other information and warnigs. Acceleration/deceleration Time Setting 0～600s acceleration/deceleration time can be set individually Other Funcitions PID Control Built-in PID control RS485 Standard RS485 communication function (MODBUS) Frequency Setting Analog input: 0～10V, 0～20 mA can be selected; Digital input: input using the setting dial of the operation panel or RS485 or UP/DOWN. Speed Eight multifunction input terminals,15 section speed can be set Automatic voltage regulation Automatic voltage regulation function can be selected Counter Built-in 2 group of counters Protection/Warning Function Overload 150%,60 second(constant torque) Over Voltage Over voltage protection can be set. Under voltage Under voltage protection can be set Others Overheat,output shortcircuil,over current,and parameter lock and so on. Environment Ambient Temperature –10℃~40℃(non-freezing) Ambient Humidity Max 95%(non-condensing) Altitude Lower than 1000 м. Vibration Max 0,5G Structure Cooling Mode Forced air cooling Stucture IP 20 Method of installation Below 90 kW(including 90) on the wall 110-200 kW on th panel or in the office Above 220 kW in the office Dimension Drives Series NZA Model Output power (kW) Power [kVA] Output current (А) Overload capacity (60s)(А) Applicable Motor (kW) A B C D E Ф F NZA0004T2B 0.4 1 2.5 3.75 0.4 117 125 162 170 140 5 NZA0007T2B 0.75 2 5 7.5 0.75 NZA0015T2B 1.5 2.8 7 10.5 1.5 NZA0022T2B 2.2 4.5 11 16.5 2.2 NZA0037T2B 3.7 7.2 16.5 24.75 3.7 105 120 208 225 140 5 NZA0007T4B 0.75 2.2 2.7 4.05 0.75 117 125 162 170 140 5 NZA0015T4B 1.5 3.2 4 6 1.5 NZA0022T4B 2.2 4 5 7.5 2.2 NZA0037T4B 3.7 6.8 8.6 12.9 3.7 105 120 208 225 149 NZA0055T4B 5.5 10 12.5 18.75 5.5 168 185 248 260 170 6 NZA0075T4B 7.5 14 17.5 26.25 7.5 NZA0110T4B 11 19 24 36 11 195 210 310 330 190 6 NZA0150T4B 15 26 33 45 15 NZA0180T4B 18.5 32 40 60 18.5 147 250 460 480 240 9 NZA0220T4B 22 37 47 70.5 22 NZA0300T4B 30 52 65 97.5 30 197 300 482 500 260 NZA0370T4B 37 64 80 120 37 NZA0450T40B 45 72 90 135 45 240 360 620 650 280 NZA0550T4B 55 84 110 165 55 NZA0750T4B 75 115 152 228 75 260 400 775 800 330 11 NZA0900T4B 90 135 176 264 90 NZA1100T4B(G) 110 160 210 315 110 360 552 885 930 400 13 NZA1320T4B(G) 132 193 225 382.5 132 NZA1600T4B(G) 160 230 305 457.5 160 NZA1850T4B(G) 185 260 340 510 185 360 552 965 1000 410 NZA2000T4B(G) 200 290 380 570 200 NZA2200T4G 220 320 425 637.5 220 400 600 370 1850 600 15 NZA2500T4G 250 365 480 720 250 NZA2800T4G 280 427 560 840 280 470 700 355 1850 600 16 NZA3150T4G 315 460 605 907.5 315 NZA3500T4G 345 516 680 1020 345 NZA3750T4G 375 562 740 1110 375 670 900 355 2030 600 16 NZA4000T4G 400 600 790 1125 400 NZA4150T4G 415 632 820 1230 415 NZA4500T4G 450 638 840 1260 450 Dimension control Panel Series NZA (1) Control panel «A» ┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄0.4 kW~3.7 kW (2) Control panel «B» ┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄more 5.5 kW Mounting dimensions of external control panel «B» Connetction Diagram (1) The models below 15 kW (2) The model above 18.5 kW Applicable Fields Drives Series NZА:  Packing machines, mixer, pump ;  Extruders, shock-punching machines;  Sewer systems, draft fans;  Submersible pumps, crane equipments;  Washing machines, vertical stamping presses;  High-speed saws and spindles, mills;  Compressors, elevators, escalators, reels;  Knitting machines, food processing equipments;  4-sided planers,  Air conditioning, conveyor system;  Metalworking and woodworking machines, etc.
