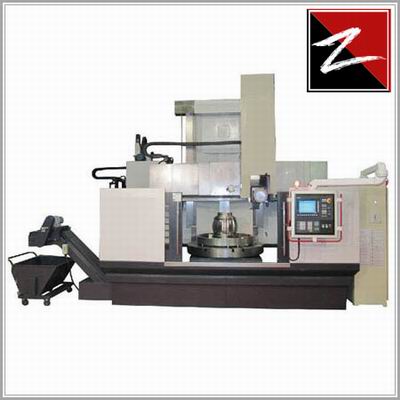

CK5112Epro Semi-closed CNC Vertical Lathe Semi-closed CNC Single Column Vertical Lathe  This machine tool adds the semi-closed protection, chip conveyor, chip conveyor trolley, water pump workpiece cooling device, oil temperature refrigerator cooling, Germany Mecano button station and other functions on the basis of the original CK5112Epro,with the features of elegant appearance and high grade.  The working platform owns the function of waterproof and it is not necessary to worry that cutting fluid infiltrates into it. The design of square shaped working platform facilitates the collection of cutting fluid.  Siemens 802DSL system(user can appoint other system) is adopted; servo motor and servo drive all utilize Siemens products.  Beam guiding surface and T model ram guideway is conducted with supersonic frequency quenching treatment (higher than HRC50) with the characteristics of durable service; the sliding surface is sticking with the soft plastics belt, which can prolong the overhauling period for over 10 years.  The independent electric cabinet is equipped with air conditioner for refrigerating, which prolongs the reliability and service life of the electric parts significantly, facilitates repair and maintenance, and is free from the influence of machine vibration. P3 high-precision lead screw produced by Nanjing Process or Taiwan HIWIN (P1 is the highest and P6 is the lowest degree),and imported bearing support. The beam is protected by the white steel, and all the lubrication parts are supplied with certain amount of oil by the automatic lubricating pumps regularly. Four-grade machine variable speed+motor stepless variable speed, wide range of constant power and large torque. Four station electric tool post, automatic exchange tool, convenient and practical.  JB/T9934.1-1999 precision inspection of CNC vertical lathe is performed.JB/T9934.2-1999 technical specification of CNC vertical lathe.  Owning constant line speed turning, cutting thread and other functions.  High-precision transmission gear (6grades) and high-precision spiral bevel gear (6 grades) with low noise and high rotary precision. All the castings are made of HT300 grey cast iron which is treated with artificial heat aging, high-quality processing and improved assembly process. All the functional parts and electric parts are in high quality with high reliability.  Complete fitting configuration allows the user to put into operation only by preparing cutting tool and measuring tool. Best after-sale service (pre-sale, sale, after-sale, installation, debugging, training and guarantee)  Optional parts: Constant flow hydrostatic guideway, grating closed loop, heighten lathe body, lengthened ram, etc.

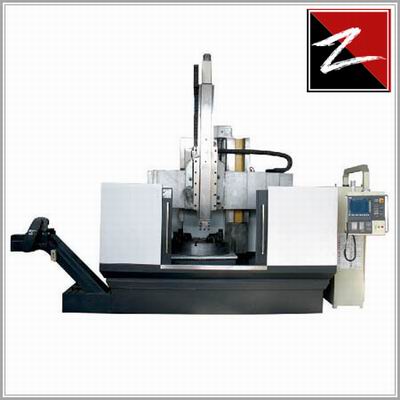

CKG125 CNC High speed Vertical Turning lathe High-speed CNC Vertical Turning Lathe  This system applies to machine tools such as carbide and ceramic cutting tools, for ferrous metals, nonferrous metals and internal an external cylindrical surface ,face ,cutting slots, screw and rotary surface of non-metallic parts for coarse, semi-refined and refined processing.  There are three specifications available such as high-speed type, standard type, and heavy-load type.  High-speed cutting: the max cutting speed is up to 2000m/min.The fast moving speed of the tool holder (horizontal and vertical)is up to 12m/mn..  The main transmission is driven by AC main shaft servo motor. Two-step variable speed uses the imported ZF gearbox. High-speed rotary workpieces are carried out with static and dynamic balance .High-precision transmission gears and gear grinding process are used to realize high transmission efficiency, low noise and reliable and stable operation under high speed.  The feed system is driven by AC servo motor an d the motor carries out direct linkage with ball screw by soft coupling to realize non-transmission clearance with high-precision operation.  The column is in type of thermal symmetry and it is installed in the base of working platform. By the calculation of finite elements of the computer, effective vibration isolation measures are adopted with the features of high stiffness and high anti –vibration capacity.  The working platform is in type of thermal symmetry and the main shaft adopts double short and circular column roller bearing center with high-precision and adjustable radial clearance while the axial direction utilizes large thrust sphere bearing with high-precision as the rolling guide and then the cooling device of oil temperature is equipped with, thus, the working platform is featured with high rotation precision, large bearing capacity and small thermal deformation.  The feed motion of tool holder and ram adopt straight line bidirectional roller rolling guide to make the motion of tool holder own stable motion, high transmission efficiency and excellent precision retentively.  CNC system adopts Siemens or FANUC system or other systems appointed by the user.  The machine tool is equipped with chip removal device and semi-closed hood.  Upon the demands of the users, tool magazine, butted-knife installation within the machine, boring-milling function, function of indexing and feed of working platform, grinding function, left vertical tool holder as well as full-closed-loop control etc .can be offered.  Therefore, the electric components, hydraulic components and the functional parts all select world famous brand.

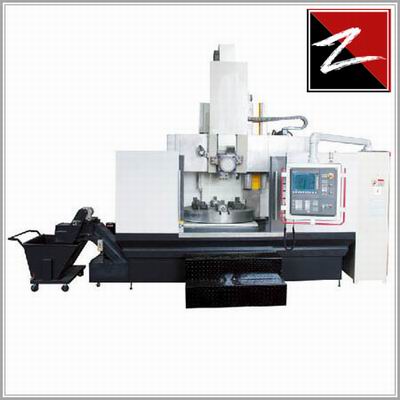

CK5116Epro Semi-closed CNC Vertical Lathe Machine Semi-closed CNC Single Column Vertical Lathe Machine  This machine tool adds the semi-closed protection, chip conveyor, chip conveyor trolley, water pump workpiece cooling device, oil temperature refrigerator cooling, Germany Mecano button station and other functions on the basis of the original CK5112Epro,with the features of elegant appearance and high grade.  The working platform owns the function of waterproof and it is not necessary to worry that cutting fluid infiltrates into it. The design of square shaped working platform facilitates the collection of cutting fluid.  Siemens 802DSL system(user can appoint other system) is adopted; servo motor and servo drive all utilize Siemens products.  Beam guiding surface and T model ram guideway is conducted with supersonic frequency quenching treatment (higher than HRC50) with the characteristics of durable service; the sliding surface is sticking with the soft plastics belt, which can prolong the overhauling period for over 10 years.  The independent electric cabinet is equipped with air conditioner for refrigerating, which prolongs the reliability and service life of the electric parts significantly, facilitates repair and maintenance, and is free from the influence of machine vibration. P3 high-precision lead screw produced by Nanjing Process or Taiwan HIWIN (P1 is the highest and P6 is the lowest degree),and imported bearing support. The beam is protected by the white steel, and all the lubrication parts are supplied with certain amount of oil by the automatic lubricating pumps regularly. Four-grade machine variable speed+motor stepless variable speed, wide range of constant power and large torque. Four station electric tool post, automatic exchange tool, convenient and practical.  JB/T9934.1-1999 precision inspection of CNC vertical lathe is performed.JB/T9934.2-1999 technical specification of CNC vertical lathe.  Owning constant line speed turning, cutting thread and other functions.  High-precision transmission gear (6grades) and high-precision spiral bevel gear (6 grades) with low noise and high rotary precision. All the castings are made of HT300 grey cast iron which is treated with artificial heat aging, high-quality processing and improved assembly process. All the functional parts and electric parts are in high quality with high reliability.  Complete fitting configuration allows the user to put into operation only by preparing cutting tool and measuring tool. Best after-sale service (pre-sale, sale, after-sale, installation, debugging, training and guarantee)  Optional parts: Constant flow hydrostatic guideway, grating closed loop, heighten lathe body, lengthened ram, etc.

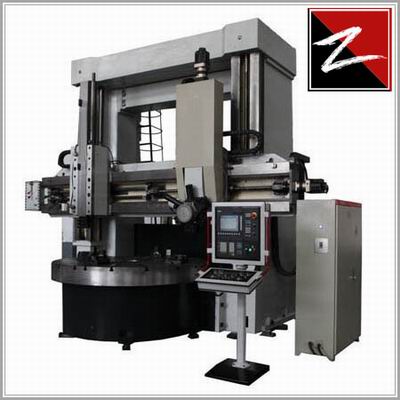

CK5231E Double Column CNC Vertical Lathe china CNC Double Column Vertical Lathe  CNC Double Column Vertical Lathe adopt the most advanced production technology, modularization design and analysis of infinite elements are adopted to integrate machine, electricity and hydraulics the advanced technology, which represents high-precision exquisite cutting.  Siemens 802DSL or Siemens 802C CNC system which owns 100% full manual switch and operation function, that means no programming is needed even for the common operator. Manual operation is convenient and practical. Two-step machinery variable speed and ultra-large torque DC motor stepless speed control to realize turning with constant line rate.  Premiumcasting (HT300) is handled by heat aging. The guide on the beam is embedded with chromium-masurium-manganese guide plate.  The left too holder adopts the common type while the right one utilizes CNC system; both of the two tool holders can all be selected as CNC mode. The guide of working platform adopts constant current oil supply with constant current motor with the feature of stable precision; The hydraulic oil utilizes refrigerator for constant-temperature cooling and reducing the variant quantity of the working platform.  Different lubrication parts adopt automatic lubrication pump for automatic timing and quantitative oil supply. High precision ball screw adopts imported bearing (Germany INA) for supporting.  JB/T9934.1-1999 precision inspection of CNC vertical lathe is performed. JB/T9934.2-1999 technical specification of CNC vertical lathe.  Best after-sale service (pre-sale, sale, after-sale, installation, debugging, training and guarantee)  Machine tool adopt lots of imported parts (electrical, servo motor, servo drive, hydraulic parts, bearings, screw, planetary reducer, etc.), reliable quality assurance .  Gear box adopts high accuracy grinding gears. With beams stainless steel protective and walking board etc.

CK5228E Double Column CNC Vertical Lathes CNC Double Column Vertical Lathe  CNC Double Column Vertical Lathe adopt the most advanced production technology, modularization design and analysis of infinite elements are adopted to integrate machine, electricity and hydraulics the advanced technology, which represents high-precision exquisite cutting.  Siemens 802DSL or Siemens 802C CNC system which owns 100% full manual switch and operation function, that means no programming is needed even for the common operator. Manual operation is convenient and practical. Two-step machinery variable speed and ultra-large torque DC motor stepless speed control to realize turning with constant line rate.  Premiumcasting (HT300) is handled by heat aging. The guide on the beam is embedded with chromium-masurium-manganese guide plate.  The left too holder adopts the common type while the right one utilizes CNC system; both of the two tool holders can all be selected as CNC mode. The guide of working platform adopts constant current oil supply with constant current motor with the feature of stable precision; The hydraulic oil utilizes refrigerator for constant-temperature cooling and reducing the variant quantity of the working platform.  Different lubrication parts adopt automatic lubrication pump for automatic timing and quantitative oil supply. High precision ball screw adopts imported bearing (Germany INA) for supporting.  JB/T9934.1-1999 precision inspection of CNC vertical lathe is performed. JB/T9934.2-1999 technical specification of CNC vertical lathe.  Best after-sale service (pre-sale, sale, after-sale, installation, debugging, training and guarantee)  Machine tool adopt lots of imported parts (electrical, servo motor, servo drive, hydraulic parts, bearings, screw, planetary reducer, etc.), reliable quality assurance .  Gear box adopts high accuracy grinding gears. With beams stainless steel protective and walking board etc.
