Wire cage welding machine for filter bag Cage welding machine Model Wire qty Ring space Cage diameter(mm) Control unit DLN-16-5 8,10,12,14,16 No restriction 100-160 KD-DL08D DLN-24-5 8,10,12,14,16,18,20,22,24 No restriction 100-200 KD-DL08D General Specification Input voltage: 380V (2 phase) • Power frequency: 50/60Hz • Cooling method: natural cooling • Air pressure: 0.6-0.8 MPa • Insulation grade: F • Power capacity: 80 KVA • Working load: 20 KVA Features 1. Rails (7500mm) and material shelf (7500mm) equipped and connected to the welding unit. The front end of the rail is adjustment-free. Good linearity can be achieved for wire cages. 2. Equipped with auto feeding unit, no restrictions on ring space. 3. Positioning mould manufactured with wire-cutting process, it features high accuracy, good insulation and long life. 4. Four air tanks, short air route inside the machine ensures quick response of the cylinder. 5. 25mm front plate resulted from one-time machining, firmly secure that the welding cylinders are on the same plane and perpendicular to the axes, thus the linearity of the cage can be ensured. 6. Air valves (Airtac) together with stroke-adjustable cylinders increase welding speed, pre-pressing only takes 0.08s. 7. Controlled by micro-computing unit. 8. Time-sharing power-on transformer reduces the burden on local electricity grid. :

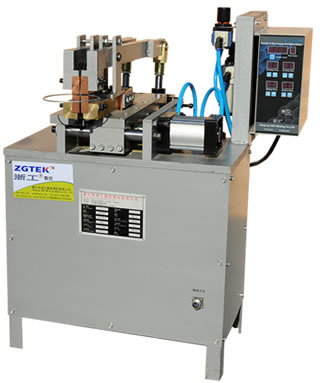

Butt welding machine for filter bag cage High speed, capable of welding 8000 rings per 8-hour shift. Filter cage welding line Butt welding machine for filter bag cage •Model: UR-40 •Input voltage: 380V(2-phase) or specified by customer •Power frequency: 50Hz •Power capacity: 40KVA •Working load: 15KVA •Wire thickness: 2.5-6mm •Control unit: KD-U08B •Cooling method: natural cooling •Air pressure: 0.6-0.8MPa •Air flow: 150L/min Features •High speed, capable of welding 8000 rings per 8-hour shift •Small heat affected area, approximately 3-4mm, especially applicable for welding galvanized wire •This machine is not recommended to weld stainless steel rings, there is an argon arc welding(tig welding) machine available specificly for welding stainless steel ring, the operating method is the same

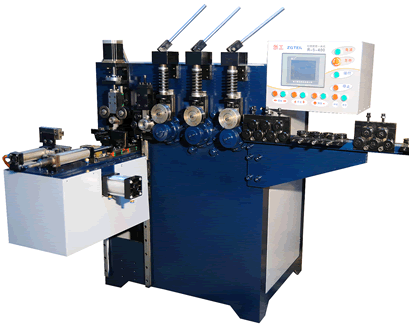

Automatic ring making machine 1200pcs/hour for ring OD150mm. Cage welding machine High throughput and easier operation. Automatic ring making machine for filter cage This combined machine features high throughput and easier operation. 1200pcs/hour for ring OD150mm.

CK5280 CNC double column vertical lathes CNC Vertical Lathe Numerical control system is Siemens or Fanuc CNC. Bring in finite element analysis,specially designed aiming at high efficiency,high rigidity,heavy cutting etc working conditions. 1 The pillar and base plate both use big-size box arrangement,offering the biggest Z shaft ram section with 230*200 size,can support over heavy cutting. 2 The symmetrical layout can reasonably avoiding heat deformation,reasonable arrangement and many times of temper and aging processings,has guaranteed a long time stability for the lathe's accuracy. 3 The radial direction of main shaft use P4 level double column roller bearing,the axial direction use P4 level big size thrust bearing,at the same time of ensuring high rotating accuracy,the high load capacity has also been ensured. 4 The hydraulic system use machine-outside cycling,which can take away the heat efficiently.The oil pump is always in a unloading state to avoid the lathes' temperature rise.When the lathe is equipped with second main shaft,the lathe is equipped with oil cooler. 5 Big diameter ball screw,X shaft ball screw pre-stretching,which has ensured a high position accuracy and can compensate heat deformation. 6 The lathe has big openings,which is convenient for components handling,loading and unloading.the operate button face can have a 90°turning,good agreeableness. 7 There have kinds of configurations for users to choose from,like standard type,heavy load type and high speed type.Also we can choose ZF two-section transmission case or our company's four-section transmission case on the basis of users requirement.

CK5263 CNC vertical lathes CNC Vertical Lathe Numerical control system is Siemens or Fanuc CNC. Bring in finite element analysis,specially designed aiming at high efficiency,high rigidity,heavy cutting etc working conditions. 1 The pillar and base plate both use big-size box arrangement,offering the biggest Z shaft ram section with 230*200 size,can support over heavy cutting. 2 The symmetrical layout can reasonably avoiding heat deformation,reasonable arrangement and many times of temper and aging processings,has guaranteed a long time stability for the lathe's accuracy. 3 The radial direction of main shaft use P4 level double column roller bearing,the axial direction use P4 level big size thrust bearing,at the same time of ensuring high rotating accuracy,the high load capacity has also been ensured. 4 The hydraulic system use machine-outside cycling,which can take away the heat efficiently.The oil pump is always in a unloading state to avoid the lathes' temperature rise.When the lathe is equipped with second main shaft,the lathe is equipped with oil cooler. 5 Big diameter ball screw,X shaft ball screw pre-stretching,which has ensured a high position accuracy and can compensate heat deformation. 6 The lathe has big openings,which is convenient for components handling,loading and unloading.the operate button face can have a 90°turning,good agreeableness. 7 There have kinds of configurations for users to choose from,like standard type,heavy load type and high speed type.Also we can choose ZF two-section transmission case or our company's four-section transmission case on the basis of users requirement.
