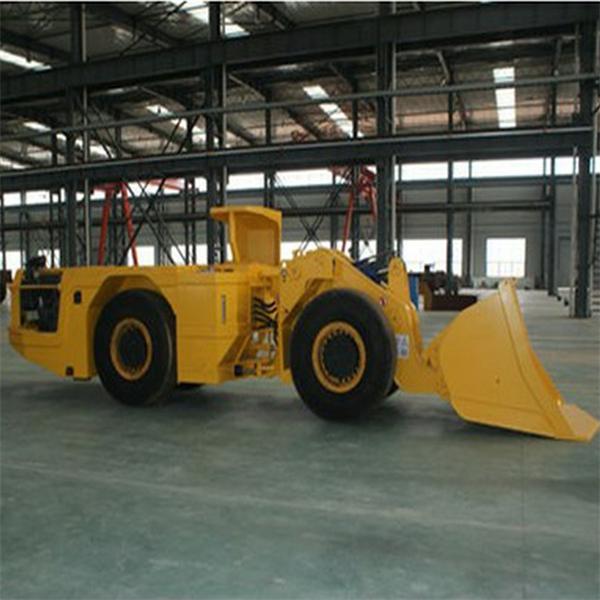

CYJ-1.5 Electric Loader Performance and usage 1 CYJ 1.5 electric LHD adopts hydraulic mechanical system, three-phase AC motor driver. It's transmission, torque converter, differential mechanism and drive axle are realized localization. 2 The design appearance and function as same as import products, and more cheaper , more convenient in operation and maintenance. 3 It has the characteristics of four -wheel –drive ,full -hydraulic steering ,three point articulate before and after car body. 4 Also has the advantages of small size, long lifespan ,big strength in breakout force and work reliable. 5 Suitable for mining and road way drivage slag, the construction of the road and work place, material transportation and so on. Technical Parameter Motor Model：Y2—250—4 Motor Power:55KW Motor Voltage :380V Hydraulic - Torque Force Model：C273.1—295 Power Transmission Model：RT20324—12 Drive Axle Type：NO—SPIN Braking System：Working Braking, Parking Brake Bucket Capacity:1.5 m3 Max. Lifting Height：3740mm Mini. Ground Clearance:250mm Loading Capacity: 11600kg Climbing Ability：16° Max. Traction：92KN Max. Shovel Force：73KN Hydraulic Tank Capacity：150L Running Speed：0—10km/h Control Voltage：AC36V Lighting Voltage:AC24V Steering Angle: ±33° Min. Turning Radius (outside):5200mm Dimensions（Length* Width*Height）：7100 * 1420 * 2050

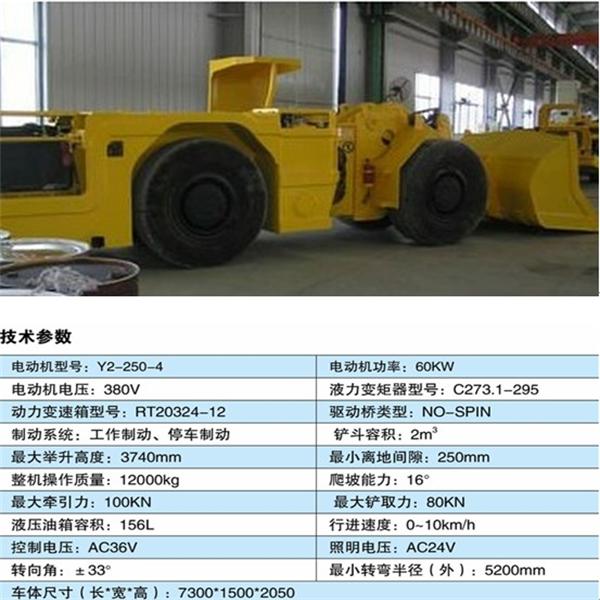

CYJ-2 Electric Loader Performance and usage 1 CYJ - 2 electric LHD is mainly used for mine, to load and transport the loose material which is left after the bursting. 2 Also it can be used for tunnel engineering such as underground railway, highway and water conservancy, especially suitable for workingplane of poor work conditions , narrow working platform, low and muddy working face. 3 Transmission system adopts DANA 's hydraulic torque converter and power shift gearbox ,which is easy operation and running smooth. 4 The braking system adpots hydraulic double pipe work system ,and equipped with multi--disk wet brake,self-developed antiskid differential mechanism of NO-SPIN.It is security and reliable when working in harsh, high water saturation environments and muddy tunnel. 5 The main components of the hydraulic system adopts well-known manufacturers ' products both at home and abroad, manual operating diverter valve control the steering. 6 Using pilot valve with ergonomics handle to control the bucket arm lifting and bucket tilting. Elaborate designed and manufactured electric scraper has beautiful shape and high work efficiency. Technical Parameter Motor Model：Y2—250—4 Motor Power:60KW Motor Voltage:380V Hydraulic - Torque Force Model：C273.1—295 Power Transmission Model：RT20324—12 Drive Axle Type：NO—SPIN Braking System：Working Braking, Parking Brake Bucket Capacity：2 m3 Max. Lifting Height：3740mm Mini. Ground Clearance:250mm Loading Capacity: 12000kg Climbing Ability：16° Max. Traction：100KN Max. Shovel Force：80KN Hydraulic Tank Capacity：156L Running Speed：0—10km/h Control Voltage：AC36V Lighting Voltage:AC24V Steering Angle: ±33° Min. Turning Radius (outside):5200mm Dimensions（Length* Width*Height）：7300 * 1500 * 2050

CYJ-2 Diesel Loader Performance and usage 1 CYJ -2Diesel LHD adopts German DEUTZ AG F6L912W engine.Transmission system adopts DANA 's hydraulic torque converter and power shift gearbox ,which is easy operation and running smooth. 2 The braking system adpots hydraulic double pipe work system ,and equipped with multi--disk wet brake,self-developed antiskid differential mechanism of NO-SPIN.It is security and reliable when working in harsh, high water saturation environments and muddy tunnel. 3 The main components of the hydraulic system adopts well-known manufacturers ' products both at home and abroad, manual operating diverter valve control the steering. 4 Using pilot valve with ergonomics handle to control the bucket arm lifting and bucket tilting. Technical Parameter Motor：DEUTZ F6L912 （Germany） Hydraulic - Torque Force Model：C273.1—295 Power Transmission Model：RT20324—12 Drive Axle Type：NO—SPIN Braking System：Working Braking, Parking Brake Bucket Capacity:2 m3 Maximum Lifting Height：3740mm Min. Ground Clearance:250mm Loading Capacity: 12000kg Climbing Ability：16° Maximum Traction ：100KN Max. Shovel Force：80KN Hydraulic Tank Capacity：156L Running Speed：0—10km/h Steering Angle: ±33° Min. Turning Radius (outside):5200mm Dimensions（Length* Width*Height）：7300 * 1500 * 2050
