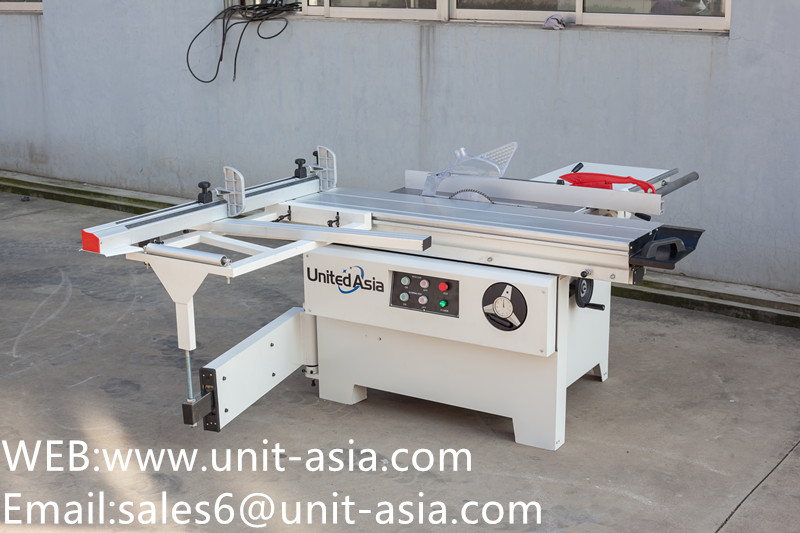

Dimension of sliding table saw 1600*375mm Gross cut capacity 1600mm Width of cut between saw blade and ripe fence 1250mm Saw blade 300mm(250-350) Height of cut 300mm 70mm Speed of main saw blade 6000r.p.m Tilling saw blade 45 degree Main motor 3kw(7.5HP) Scoring saw blade diameter 120mm Speed of scoring saw blade diameter 8000r/min Scoring motor 0.75kw Net weight 550kg Overall dimensions 1600*2550*900mm Loading 20GP/40HQ 12SETS/24SETS

Edge banding belt thickness 0.4-3mm Width of Edge banding belt 12-55mm Thickness of work piece 10-50mm Min.width of work piece 80mm Min.Length of work piece 160mm Feeding speed 13-23m/min Air pressure 0.6-0.8Mpa Pre-Heating power 0.12kw End cutting power 0.37kw*2 Fine trimming power 0.7kw*2 Buffing power 0.25kw*2 Gluing box Heating power 2.42kw Feeding power 1.5kw Overall size 2.8*0.8*1.5m Weight 1000kg

Model R-R700 Max working width 700mm Min working length 305mm Working thickness 2-160mm Feeding speed 5-30m/min Abrasive belt size 730*1900mm Total Motor power 28.24kw Working air pressure 0.6Mpa Air consumption 9m³/h Volume of dust collection device 8500m³/h Overall dimensions 1363*2164*1980mm Net weight 2300kg

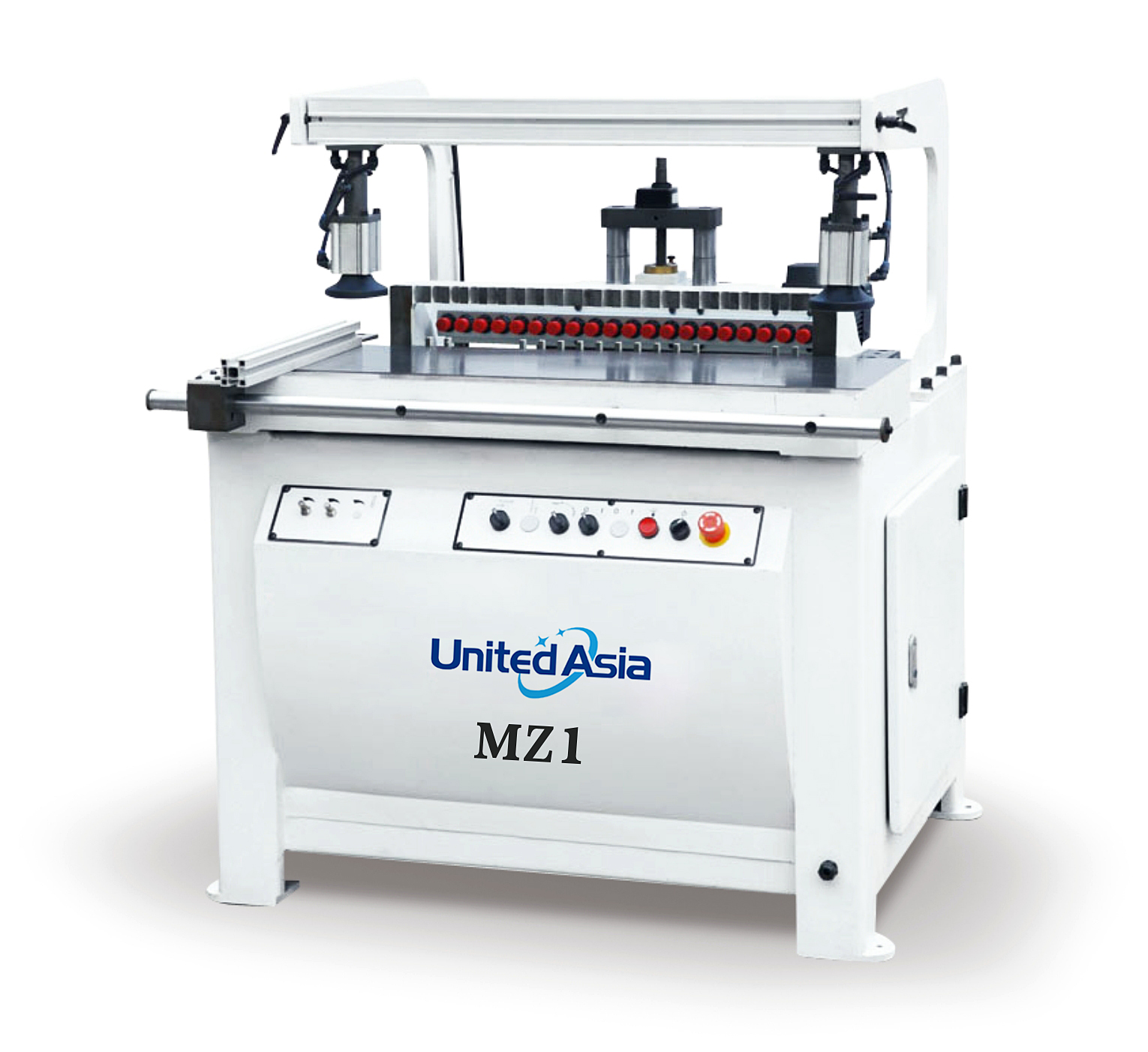

Model MZ-1 Max.Drilling Diameter Max.=35mm D=13mm Max. Drilling Depth Max.=60mm Total Number Of Spindles 21 Installation Drilling Of Drill Bit Shaft 10mm Spindle Speed 2840rpm Total Power 1.5kw Overall Dimension 1200*900*1350mm Weight 300kg Weight Air Pressure 0.5-0.6mpa

ASAP Contact: Ted Xu Skype:+8618059275924 QQ:2428175040 Phone No: +8618059275924 Email:[email protected] Whatsapp:+8618059275924 Our company have a lot of successful cases, and my customer repurchase rate is very high. Warranty: 12 months. Lead time: 1-2 working days. Type of payment:T/T and Western Union. Courier partners: DHL, UPS, TNT, FedEx and EMS.
