【Summarize】 This series is a Can protocol fieldbus fiber optic repeater, supporting CAN2.0A/B protocol: CAN、DeviceNet、CAN Open、SDS、NMEA2000、SAE J1939、SAE J2284 standard fieldbus etc., independent dual bus electric interface and 2 fiber interface, supply redundancy dual-bus structure and fiber optic redundancy ring network function, supply safe and efficient redundant long-distance transmission and relay functions for redundant dual-network system. Shenzhen Comark Technology Co., Ltd. is a professional manufacture for industrial network equipment, equipment using the latest technology, completed core intellectual property rights, and pioneered the innovation products in this field. The equipment unique characteristics in dual-electric business and dual-optic interface, support dual-network redundancy and fiber optic ring network, point to point, star topology, daisy chain bus, ring network and hybrid network architecture. Up to over 60km fiber-optic long-distance transmission, breaking through the cable system’s distance limitations. The dual-electric channel is logically independent, support 1 to 2 optic/electric interface collocation flexibly, according to actually needs of the project, achieve the flexible configuration in 1 channel optical interface, 1 channel data interface; 1 channel optical interface, 2 channels data interface; 2 channels optical interface,1 channel data interface; 2 channels optical interface,2 channels data interface. Ci-af series is general products based on Can Standard, compatible with other types of bus, rate set by the DIP switch, can support 32 kinds of commonly used rate; Ci-df/oF series is special products against DeviceNet, Can Open, only support all the standard rate, rate set by the DIP switch or rate adaptive settings optional. 155M dual optical interface can better support optical fiber transmission can bus outstanding advantages: reciprocity transmission, bust of data, bus arbitration etc., while achieving high-speed long-distance transmission, isolation between electrical and ground, reduce interference and other performance. Industrial-grade design, IP30 protection, wave patterns aluminum strength case, 35mm DIN Rail mounting, DC (9-36) v wide power input,alarm relay output, dual-power redundancy and isolation protection,etc. 【Feature】  Support logically independent dual-can bus; include CAN2.0A and CAN2.0B, 32 kinds of pre-communication rate.  DeviceNet、CAN Open bus support manually set all the standard rate or rate adaptive.  1 to 2 channels CAN electric interface and 1 to 2 channels 155M optical interface flexible optional, support optical ring network topology with redundancy dual-network.  Over 60km optical transmission distance, 155Mb/s, high-speed optical interface better support burst of data and long-distance reliable transmission.  6 dual-color LED status indicator, fiber optic link and power failure alarm relay output.  Electric interface with 4000V lightning protection, 1.5A overcurrent, 600W surge protection, industrial-class design, EMC testing and certification.  DC9-36V wide redundancy dual power, DC1500V power isolation, reverses polarity protection.  IP30 protection, wave patterns aluminum strength case, standard industrial 35mm DIN rail mounting. 【Network Topology】 Network deployment topologies can achieve the following network connection: point to point communication, chain network, star network, redundant dual-network and fiber optic ring network self-healing protection etc. This product applied flexibly, can form a variety of fiber-optic network. Logically independent dual-bus electric interface, backup the electric interface can be achieved or single equipment access to redundancy system; 2 canbus network segments connected by fiber optic can be achieved when using point to point network; the optical bus with dual-optical port chain network can achieve multi-network segments canbus connection(up to 200); meanwhile, this product use dual-optical port to achieve dual-fiber ring network redundancy function, fiber failure somewhere, system will rebuild the network link within 10ms to ensure the normal communication. 【Specifications】 Electrical interface  1 to 2 5-Pin terminal interface, comply the CIA Organization recommends, as well as ODVA.  Support CAN BUS/DeviceNet/CANOpen bus standard.  Communication rate: DeviceNet/CANOpen all and normal use can rate grade, up to 1M.  With the function of 4000V Anti–lightning and 1.5A overcurrent protection, as well as 600W surge protection.  Termination resistor: the machine without termination resistor provided, please press the need for external. Optical interface  Optical wavelength: Multi-mode 850nm, 1310nm; Single-mode 1310nm, 1550nm.  Transmission fiber: Multi-mode 50/125 um, 62.5/125 um, 100/140 um; Single-mode 8.3/125um, 9/125um, 10/125um.  Transmission distance: Multi-mode 2km, Single-model 20km, longer distance optional.  Optical interface type: SC, FC, ST optional, comes standard with SC optical interface. Power and Protection  Power: dual-power redundancy input, DC（9-36）V, typical DC24V, power consumption less than 4W, with the function of DC1500V voltage isolation and reverse polarity protection, industrial terminal interface.  Relay alarm out put: optical fiber link failure and power failure alarm output, the maximum capacity of contact: DC48V/1A, industrial terminal interface. Mechanical  Dimensions: 132mm×52mm×105mm (H×W×D)  Casing: IP30 protection, wave patterns aluminum strength case.  Installation: 35mmDIN-Rail.  Net weight: 800g Environmental  Operating Temperature: -10-70℃ (-40℃ to+85℃ wide temp optional)  Ambient Relative Humidity: ≤90% (non-condensing)  Storage Temperature: -40℃ to 80℃ Testing and certification:  IEC61000-4-2(ESD) air：±8KV， contact：±4KV;  IEC61000-4-3(RS) 10V/m（80-1000MHz）;  IEC61000-4-4(EFT) L-N-PE：±2KV data access：±1.0KV;  IEC61000-4-5(Surge) L-N：±1KV， L/N-PE：±2KV data access：±0.5KV;  IEC61000-4-6(CS) 10V（150kHz-80MHz）;  IEC61000-4-8(MS) long:30A/m， short:300A/m;  IEC61000-4-11(Dips). Applications: Electric Power system, transportation, energy monitoring and industrial control, etc.

Others

Summary: This series product is ControlNet protocol fieldbus HUB repeater, support ControlNet protocol fieldbus, the function of data mutually forwarding within independent 3 channels bus electrical ports, electrical signal relay and supply cable system the star topology. Ci-cc30 series based on ControlNet standard. Shenzhen Comark Technology Co.,Ltd is a professionalized supplier of industrial networking equipments, the products always adopt latest technology with their own completed intellectual property rights, launched the products with the features of industry’s innovative. The equipment can prolong the transmission distance of ControlNet, change the bus topology structure, meanwhile featured Opto-isolation, reducing interference and other functions. Products designed as industrial class, IP30 protection grade, wave pattern aluminum casing, 35mm DIN rail installation, DC (9-36) V, widely power input, featured relay alarm output, dual power redundant, isolation protection and other advantages. Feature:  Support 3 channels of independent ControlNet, 5M rate.  Featured the function of 3 ports hub and repeaters, easy to achieve the star topology and prolong the cable distance.  4 pcs of LED status indicators with dual-color, power fault relay output alarm.  Electric interface Opto-isolation, 4000V thunder-proof, 1.5A overcurrent protection, 600W surge protection. Industrial design, EMC test certificate.  DC9-36V wide temperature redundancy dual power, reverse connection protection.  IP30 protection grade, wave pattern aluminum enhance case, adopt standard industrial 35mm Din Rail installation. Specifications: Electrical Interface:  BNC-F connector, interface conforms to ControlNet protocol standard.  Support ControlNet Standard.  Communication rate: 5MBit/s.  Signal delay(electrical port): ≤6Bit  Have the protection function of 4000V anti-lightning,1.5A over-current and 600W surge-proof;  Terminal Resistance: the machine has built-in 75Ω terminal resistance. Power and Protection:  Power: dual power redundancy input, DC（9-36）V, typical DC24V, power consumption less than 4W, has DC1500V voltage isolation and reverse protection, industrial terminal interface. (Please use the industrial standard power supply, or will cause the communication failure or equipment damage)  Relay alarm output: optical fiber link failure and power error alarm output, maximum capacity of contacts: DC48V/1A, industrial terminal interface. Mechanical Properties:  Dimensions: 147mm×118mm×54mm  Casing: IP30 protection grade, wave pattern aluminum enhanced casing.  Installation: 35mmDIN rail installation.  Net weight: 800g Environmental:  Operating Temperature: -10-70℃ (-40~+85℃ optional)  Ambient Relative Humidity: ≤90% (non-condensing)  Storage Temperature: ﹣40～85℃ Testing and Certification: IEC61000-4-2(ESD) atmosphere: ±8KV, touch: ±4KV; IEC61000-4-3(RS) 10V/m (80-1000MHz); IEC61000-4-4(EFT) L-N-PE: ±2KV data access: ±1.0KV; IEC61000-4-5(Surge) L-N: ±1KV, L/N-PE：±2KV data access: ±0.5KV; IEC61000-4-6(CS) 10V(150kHz-80MHz); IEC61000-4-8(MS) long term:30A/m, short term:300A/m; IEC61000-4-11(Dips).

Others

Summary: Ci-cf series is a ControlNet protocol fieldbus fiber optic repeater, support the fieldbus based on ControlNet protocol, independent dual bus electrical interface and 2 optical interfaces, supply redundancy dual bus structure and optical fiber redundancy ring network function, offer redundancy dual networks system the fiber optic redundancy long distance transmission and relay function with safe and efficient. Shenzhen Comark Technology Co., Ltd. is a professional industrial networking equipment supplier; equipments done adopt the latest technology with their own completed intellectual property rights, launched the products with the features of industry’s innovative. This equipment featured of dual electric business and dual optical ports design, support dual networks redundancy and fiber optic ring network, simultaneously support point to point, star, daisy chain bus, ring network and mixed network topology. The fiber optic long distance transmission grows up to 20km or more, which break through the distance limitation of cable system. Dual electric business channels are logically independent, support 1~2 optical/electric interfaces mixed flexibly, according to the real demand of projects, you can achieve 1 channel fiber optic interface, 1 channel data interface; 1 channel fiber optic interface, 2 channels data interface; 2 channels data interface, 1 channel data interface; 2 channels fiber optic interface, 2 channels data interfaces flexible configuration. Ci-cf series is the common use goods to achieve the ControlNet standard, communication rate of 5M. 155M dual optical interface can better support fiber optic transmission the outstanding advantages of ControlNet: peering transmission, burst data, bus arbitration, simultaneously achieve long distance transmission with high speed, electrical and ground wire isolation, interference reduction and other performance. Products are industrial design, IP30 Protection Grade, wave pattern aluminum made enhance case, 35mm DIN Rail installation, DC(9-36)V widely power input, featured with relay alarm output, dual power redundancy and isolation protection, etc. Feature:  Support logically independent dual ControlNet fieldbus.  1~2 channels ControlNet BNC-F electric port and 1~2 channel 155M fiber optic ports choose flexibly, support redundancy dual fiber optic ring networking topology.  Longer than 20km, 155Mb/s, high speed optical interface can better support burst data long distance transmission reliably.  6 pcs of double colors LED status illustration light, optical fiber link and power error relay alarm output.  Electric interface 4000V thunder-proof, 1.5A overcurrent protection, 600W surge protection. Industrial design, EMC test certificate.  DC9-36V wide temperature redundancy dual power, reverse connection protection.  IP30 protection grade, wave pattern aluminum enhance case, adopt standard industrial 35mm Din Rail installation. Network topology: Networking topology can achieve the net link below: point to point communication, chain network, star network, redundancy dual networks and fiber optic ring network self-healing protection, etc. The product uses flexibly, can make up many kinds of fiber optic networks. Logically independent dual bus electric interface, can achieve electric interface backup or single equipment access dual redundancy bus system; adopt point to point network can achieve connecting two segments of ControlNet by fiber optic; adopt dual optical ports chain-shaped network fiber optic bus achieve multi-network-segments ControlNet connection; meanwhile, the product adopt dual optical ports to achieve the function of dual fiber ring network redundancy, when fiber optic error somewhere, the system will rebuild the network link within 20ms, to guarantee the normal system communication, achieve the function of signal transmission self-healing protection, the system will recovery automatically after the network troubleshooting; this series products adopt Comark own R&D professional network protocol Ci-ring, no need any set, no need root segment, quickly finishing the network function of ring closing and ring opening, this series products can plug and play, no configuration, to simplify the user installation procedure at utmost. Specifications: Electrical Interface:  BNC-F Coaxial terminal connector, interface conforms to ControlNet protocol standard.  Support ControlNet fieldbus standard.  Communication rate: 5MBit/s.  Have the protection function of 4000V anti-lightning, 1.5A over-current and 600W surge-proof.  Terminal Resistance: the machine has built-in 75Ω terminal resistance.  Signal delay(electrical interface) 5us. Optical Interface:  Wave Length: multi-mode 850nm、1310 nm; single-mode 1310 nm、1550nm.  Transmission Fiber: multi-mode 50/125 um、62.5/125 um、100/140um; single-mode 8.3/125 um、9/125um、10/125um.  Transmission Distance: multi-mode 2km, single-mode 20km, longer distance optional.  Fiber Interface Type: SC、FC、 ST optional, SC standard.  The optical line BER: <10-9  Signal Delay (optical interface): 2.3us Power and Protection:  Power: dual power redundancy input, DC（9-36）V, typical DC24V, power consumption less than 4W, has DC1500V voltage isolation and reverse protection, industrial terminal interface.  Relay alarm output: optical fiber link failure and power error alarm output, maximum capacity of contacts: DC48V/1A, industrial terminal interface. Mechanical Properties:  Dimensions: 147mm×118mm×54mm  Casing: IP30 protection grade, wave pattern aluminum enhanced casing.  Installation: 35mmDIN rail installation.  Net weight: 800g Environmental:  Operating Temperature: -10-70℃ (-40~+85℃ optional)  Ambient Relative Humidity: ≤90% (non-condensing)  Storage Temperature: ﹣40～85℃ Testing and Certification: IEC61000-4-2(ESD) atmosphere: ±8KV, touch: ±4KV; IEC61000-4-3(RS) 10V/m (80-1000MHz); IEC61000-4-4(EFT) L-N-PE: ±2KV data access: ±1.0KV; IEC61000-4-5(Surge) L-N: ±1KV, L/N-PE：±2KV data access: ±0.5KV; IEC61000-4-6(CS) 10V(150kHz-80MHz); IEC61000-4-8(MS) long term:30A/m, short term:300A/m; IEC61000-4-11(Dips).

Others

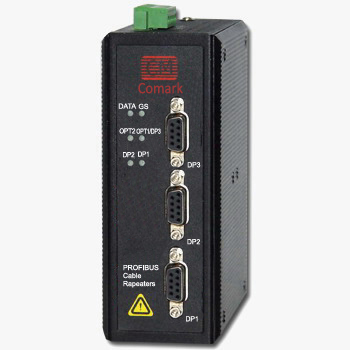

【Summarize】 This series product is Profibus DP protocol fieldbus HUB repeater, support Profibus protocol fieldbus, the function of data mutually forwarding within independent 3 channels bus electrical ports, electrical signal relay and supply cable system the star topology. Ci-pp30 series based on Profibus DP standard, rate set by DIP switch (recommend) or rate adaptive, support 10 kinds normally used rate of Profibus DP. Shenzhen Comark Technology Co.,Ltd is a professionalized supplier of industrial networking equipments, the products always adopt latest technology with their own completed intellectual property rights, launched the products with the features of industry’s innovative. The equipment can prolong the transmission distance of Profibus DP, change the bus topology structure, meanwhile featured Opto-isolation, reducing interference and other functions. Products designed as industrial class, IP30 protection grade, wave pattern aluminum casing, 35mm DIN rail installation, DC (9-36) V, widely power input, featured relay alarm output, dual power redundant, isolation protection and other advantages. 【Feature】  Support 3 channels of independent Profibus DP, support the re-communication rate of standard.  Featured the function of 3 ports hub and repeaters, easy to achieve the star topology and prolong the cable distance.  Support DIP switch manually set all the standard rates or rate adaptive (all electrical interface rates must be the same).  6 pcs of LED status indicators with dual-color, power fault relay output alarm.  Electric interface Opto-isolation, 4000V thunder-proof, 1.5A overcurrent protection, 600W surge protection. Industrial design, EMC test certificate.  DC9-36V wide temperature redundancy dual power, reverse connection protection.  IP30 protection grade, wave pattern aluminum enhance case, adopt standard industrial 35mm Din Rail installation. 【Specifications】 Electrical Interface:  9-pin Sub_D, socket connector, definition of pins conform to Profibus DP protocol standard.  Support Profibus DP Standard.  Communication Rates: 9.6kBit/s、19.2 kBit/s、45.45kBit/s、93.75k kBit/s、187.5kBit/s、500kBit/s、1.5MBit/s、6MBit/s and 12MBit/s.  Have the protection function of 4000V anti-lightning,1.5A over-current and 600W surge-proof;  Terminal Resistance: the equipment without terminal resistance, please use the external one when necessary. Power and Protection:  Power: dual power redundancy input, DC（9-36）V, typical DC24V, power consumption less than 4W, has DC1500V voltage isolation and reverse protection, industrial terminal interface.  Relay alarm output: optical fiber link failure and power error alarm output, maximum capacity of contacts: DC48V/1A, industrial terminal interface. Mechanical Properties:  Dimensions: 132mm×105mm×52mm  Casing: IP30 protection grade, wave pattern aluminum enhanced casing.  Installation: 35mmDIN rail installation.  Net weight: 800g Environmental:  Operating Temperature: -10-70℃ (-40~+85℃ optional)  Ambient Relative Humidity: ≤90% (non-condensing)  Storage Temperature: ﹣40～80℃

Others

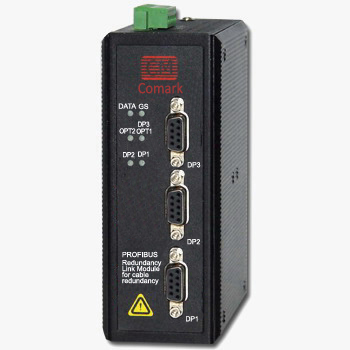

【Summarize】 This product is Profibus DP protocol fieldbus redundant module, achieve the exchange between single bus and redundant dual bus, not only can change single cable to redundant Profibus DP, but also can change redundant Profibus DP to single cable, DIP switch set rate or rate adaptive. which supports 10 kinds of normally use rate of Profibus DP. Shenzhen Comark Technology Co.,Ltd is a professionalized supplier of industrial networking equipments, the products always adopt latest technology with their own completed intellectual property rights, launched the products with the features of industry’s innovative. The equipment can be directly set after Profibus DP master station, use cable bus as redundancy bus; also can be set at slave station for changing redundant bus to un-redundant cable, meanwhile featured Opto-isolation, reducing interference and other functions. Products designed as industrial class, IP30 protection grade, wave pattern aluminum casing, 35mm DIN rail installation, DC (9-36) V, widely power input, featured relay alarm output, dual power redundant, isolation protection and other advantages. 【Feature】  Support the re-communication rate of standard.  Support DIP switch manually set all the standard rates or rate adaptive (all electrical interface rates must be the same).  6 pcs of LED status indicators with dual-color, power fault relay output alarm.  Electric interface 4000V thunder-proof, 1.5A overcurrent protection, 600W surge protection. Industrial design, EMC test certificate.  DC9-36V wide temperature redundancy dual power, reverse connection protection.  IP30 protection grade, wave pattern aluminum enhance case, adopt standard industrial 35mm Din Rail installation. 【Specifications】 Electrical Interface:  9-pin Sub_D, socket connector, definition of pins conform to Profibus DP protocol standard.  Support Profibus DP Standard.  Communication Rates: 9.6kBit/s、19.2 kBit/s、45.45kBit/s、93.75k kBit/s、187.5kBit/s、500kBit/s、1.5MBit/s、6MBit/s and 12MBit/s.  Have the protection function of 4000V anti-lightning,1.5A over-current and 600W surge-proof;  Terminal Resistance: the equipment without terminal resistance, please use the external one when necessary. Power and Protection:  Power: dual power redundancy input, DC（9-36）V, typical DC24V, power consumption less than 4W, has DC1500V voltage isolation and reverse protection, industrial terminal interface.  Relay alarm output: optical fiber link failure and power error alarm output, maximum capacity of contacts: DC48V/1A, industrial terminal interface. Mechanical Properties:  Dimensions: 132mm×105mm×52mm  Casing: IP30 protection grade, wave pattern aluminum enhanced casing.  Installation: 35mmDIN rail installation.  Net weight: 800g Environmental:  Operating Temperature: -10-70℃ (-40~+85℃ optional)  Ambient Relative Humidity: ≤90% (non-condensing)  Storage Temperature: ﹣40～80℃
