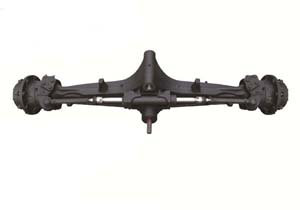

Engineering Machinery Vehicle Front Steering Driving Axle Model CH7502 Nominal Load(Kg) 9000 Wheel Tread(mm) 1820° Kingpin Inclination(°) 7° Caster Angle(°) 0° Kingpin Camber(°) 1.5° Kingpin Distance（mm） 1560 Tie-in(mm) -2~2 0 Max.Turning Angle(°) inner 50°/outer39.32° Central Reduction Device Ratio 2.462 Wheels Reduction Device Ratio 6 Axle Weight(Kg) 320 Matching Model 75 Backhoe Loader CH7502 Performance Features 1.Small curve radius, light weight, high rigidity, nice trafficability. 2.Joint and composite materials bearing, steering resistance reduced, safe and reliable. 3.Wheel reduction gear enlarges output torque to meet torque requirement. 4.Applicable to wheel backhoe loader of rated load bucket capacity 1 cbm and rated backhoe bucket capacity0.25-0.3 cbm and other special vehicle

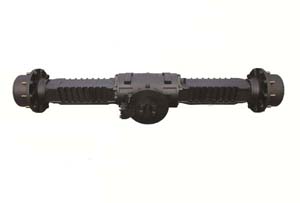

Engineering Machinery Vechicle Rear Axle Model CH7503 Nominal Load(Kg) 13000 Wheel Tread(mm) 1870 Central Reduction Device Ratio 2.466 Wheels Reduction Device Ratio 6.923 Input Maximum Allowable Twisting (Nm) 1300 Running Brake Parameter Brake Torque 51750 Nm Rated Working Hydraulic Oil Pressure 4.3Mpa Halt Brake Parameter Brake Torque 19250 Nm Parking Braking Pulling Force 360N Brake Spec. Mult-disk Wet Brake Axle Weight(Kg) 470 Matching Model 75 Backhoe Loader CH7503 Performance Features 1.Adopted rectangle section, light weight, high rigidity, nice trafficability. 2.Wet multidisc brake, maintenance free. 3.Wheel reduction gear enlarges output torque to meet torque requirement; external parking brake, convenient assemble. 4.With differential lock, better trafficabilityand other special vehicle. 5.Applicable to wheel backhoe loader of rated load bucket capacity 1 cbm and rated backhoe bucket capacity 0.25-0.3 cbm and other special vehicle.

Specifications: Span Width-8m; Length- Any length, for you option; Section-3m, 4m or 6m; Wall Height-2.5m, 3.0m, 3.5m, 4.0m, Roof Height-Wall Height + 1.8m ; Optional- Ventilation system, Cooling system, Shading System, Irrigation System, Heating System Features: 1. More stronger than tunnel greenhouse, Foundation is required 2. Big inside room, suitable for large area. 3. Usually used to grow vegetables such as tomato, cucumber, chili etc, also grow cut flowers 4. All structure by hot galvanized steel pipe, Anti-rust for 10-15 years 5. Covered by 3-ply (PE+EVA Material) poly film (plastic film), Anti-UV, Anti-Drip 130micron/150micron/180micron/200 micron thickness for your choice 6. Wind Load: 130KM/H, Snow Load: 0.28KN/m2, Max. Rainwater Running Capacity140mm/h 7. All connectors are jointed by bolt, nut and washer and so on. No welding is required.

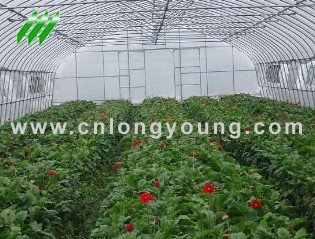

Specification: Tunnel Width-6m-10m; Length-Any length, for you option ; Section-1m, 1.5m，2.0m, for you option; Wall Height-1.8m(it can be adjustable); Roof Height-3.5m(it can be adjustable); Optional- Side ventilation system,Cooling system,Shading System,Irrigation System Features: 1. Economical, Low cost, Easy Frame! Easy Assembly & Move! 2. No foundation and welding are required 3. Good for vegetable, tree, mushroom and poultry. Especially for large scale production! 4. All structure by hot galvanized steel pipe, Anti-rust for 10-15 years 5. Covered by 3-ply (PE+EVA Material) poly film (plastic film), Anti-UV, Anti-Drip 130micron/150micron/180micron/200 micron thickness for your choice 6. All connects kits offered. No welding required.

Specification: Span Width-8m~10m; Span Quantity- For you option; Length- Any length, for you option; Section-1m, 1.5m,2.0m, for you option; Wall Height-2.5m (can be adjustable); Roof Height-4.5m (can be adjustable) Features: A. Roof Vent, which is fixed, can be good ventilation on the top, especially suitable for hot areas, like Africa, Middle-Ease, South-East Asia, South-America and so on B. The height can be adjustable, also meet the needs of different clients personalized C. As the span quantity is for you optional, it can suitable for big area planting D. Usually used to grow vegetables, like tomato, cucumber, chili etc, also grow cut flowers E. All structure built by hot galvanized steel pipe, anti-rust for 10~15 years F. Covered by 3-ply (PE+EVA Material) poly film (plastic film), Anti-UV, Anti-Drip 130micron/150micron/180micron/200 micron thickness for your choice G. All connectors are jointed by bolt,nut and washer and so on. No welding is required
