zgtek butt welder
Product Category : Machinery
Sub Category : Other Textile
Product : Marking Machine
Seller : ZGTEK Co., Ltd. (China)
Member Since : February 12th, 2012
Country of Origin : China
Selling Type : Locally


Product Preview
Product Information
Brand Name : ZGTEK
Model No : UR-40
Product Description

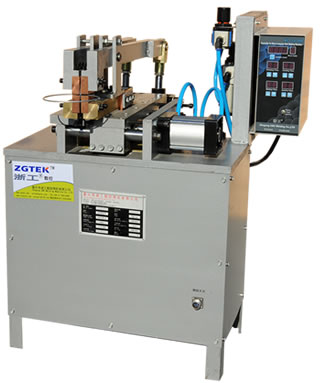

Butt welding machine for filter bag cage High speed, capable of welding 8000 rings per 8-hour shift. Filter cage welding line Butt welding machine for filter bag cage •Model: UR-40 •Input voltage: 380V(2-phase) or specified by customer •Power frequency: 50Hz •Power capacity: 40KVA •Working load: 15KVA •Wire thickness: 2.5-6mm •Control unit: KD-U08B •Cooling method: natural cooling •Air pressure: 0.6-0.8MPa •Air flow: 150L/min Features •High speed, capable of welding 8000 rings per 8-hour shift •Small heat affected area, approximately 3-4mm, especially applicable for welding galvanized wire •This machine is not recommended to weld stainless steel rings, there is an argon arc welding(tig welding) machine available specificly for welding stainless steel ring, the operating method is the same
Company Profile
Zhe Gong CNC Welding Machine(ZGTEK) Co., Ltd. provides top-notch technologies in the filter cage welding area. From a stand alone machine to a whole automated production line, our machines are with world class standards in flexibility, quality and cost-efficiency, based on our expertise in designing and manufacturing cage welding equipment. After years of hard work in constant quality improvement, today our machines are proven to feature high stability and reliability. Our company has become a trustworthy supplier with the most complete product portfolio in filter cage welding industry in China. Now we are testing the cage body making machine, which with ring auto by robot feeding .(Put rings automatically.) We will sell it soon. We also under studying of snap ring making machine now. Now we are testing next generation of cage welding machines which features automatic ring feeding, the machine will be ready for sale soon. Our main products are: Cage welding machine, Auto welding machines for round cages, quincunx cages as well as oval cages Top and bottom cap welders Butt welders Horizontal Venturi tube welders Auto ring making machines Auto wire straightening machines All types of special fixtures So far, our cages produced with ZGTEK welders have been wildly used in environment protection and dust collection industries by customers from home and abroad, bringing values to them. Thanks to the excellent performances of our machines, we are often referred to as a "cage welding expert" by customers.
