BATCH TO BATCH AXIAL
Product Category
:
Machinery
Sub Category
:
Other Textile
Product
:
Textile Humidification Machine
Seller
:
B-Tex Textile Machinery (India)
Member Since
:
May 8th, 2012
Country of Origin
:
India
Selling Type
:
Globally
Product Preview
Product Information
Brand Name
: B-Tex
Model No
: 9930190690
Product Description

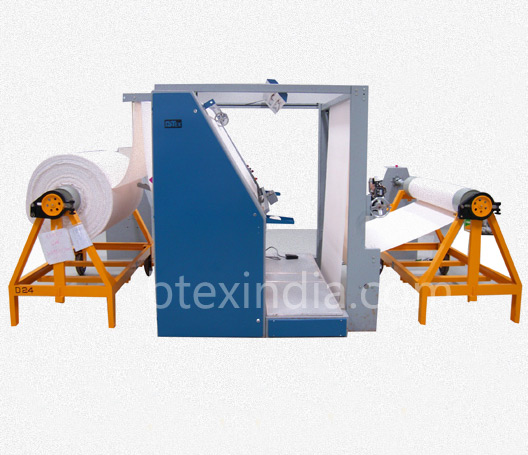

B-Tex Inspection Machine, BIM – BB+RR is a perfect and reliable tool for detecting fabric defects and incorrect sizes for all types of Fabric in Batch to Batch Form. This is most used technology today used to inspect the fabric from Big-Batch Form, where fabric is feed through Big-Batch using Axial Un-winder and Delivered again in Big-Batch form. Big-Batch Trolley is joined with Axial Un-winder through a Cardin Joint on Both Feed and Delivery. E+L Edge Guider is used to guide the fabric and maintain Centre line to deliver crease free compact Batch Rolls. It can be used for grey, Semi-Finish and finish fabric inspection, and if desired fabric can also be feed through Roll or Fold Form. Also BIM-BRR can be equipped with PLC and Data Logging Systems for inspection report generation.
Features
Fabric inlet from Batch, Roll or flat fold Form
Fabric outlet in roll form
Driven Axial Un-Winder
Auto-Stop at feed, if machine running out of fabric
Laminated Inspection Table
Top & Bottom Lights
Length Counter Meter for fabric length measurement
E + L Edge Guiding System
Full Length reversing for rechecking with Jog/Inching operation
Adjustable roll Compactness
Dancing Roller Mechanism for Multi Drive Synchronisation
Guide Rollers with Smooth finish
Wooden Platform for Operator
A.C. Inverter Drive with In-built software (Low electricity consumption)
Imported rubber emery on winding roll for extra life
Variable speed from 0 - 80 meter/min.
Italian geared-motors on all positive driven rolls
Utility Tray and Single phase Switch box is provided
Safety sensors and Emergency stop is provided
Company Profile
B-Tex designs, manufactures and distribute a complete range of inspection and rolling systems to satisfy the most demanding needs for finishing and make-up machinery in textile industry. We offer tailored solutions, whose strength lies in the high technology content of each product and the careful integration of different technologies. As a leading company in the global textile market, we are committed to satisfy our customers' requirements, thanks to high quality products and a comprehensive pre- and post-sales service.
