1.Intelligent thermal fuse, it doesnt work when fan no working.
2. Three independent heating zone, suitable for lead free process
3. It adapts quality heating material in 1st and 2nd heating zone, which produces hi temperature and breeze, and far IR for 3rd heating zone pre-heat to prevent PCB deformation.
4. Upper heating system can be moving fro and back,up and down, and the bottom heating system can go up and down.
5. Sound hint function.
6. PLC control, 7 inches touch display desk.
7. COM connector,can connect computer with plentiful soft function.
8. Big flow constant current. Cools PCB for better welding effort after Heating finish , prevent PCB deformation.
9. Portable vacuum pen takes out BGA.convenient and durable.
10. Special pallet for different main board.
11. Various sizes heating nozzles, or custom made.
12. CCD vision system. Surveying the process of BGA tin ball melting and reflow(optional).

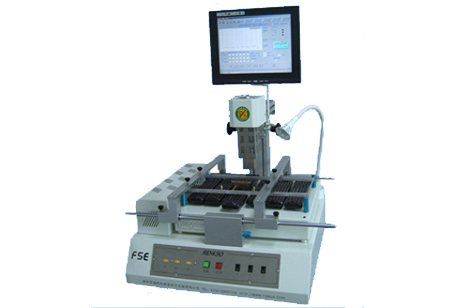

【Product Model: RD430】 Details
Normal Solder/Lead free
Hot flow /800W
IR/3600W + Hot flow/800W
Bottom heating moves Z axis
Bottom heating moves Y axis
PCB Adjusting for Table(X )
600mmL * 550mmW * 600mmH
Shenzhen Forestall Exact Equipment Co.,Ltd.was founded in2005, which located in developed electronics industry, Shenzhen city, Guangdong province.It specialises in BGA rework station, X-RAY 、AOI Optical detector etc. rework and testing equipment development、produce、 and sasles. Our products have passed CE certification
